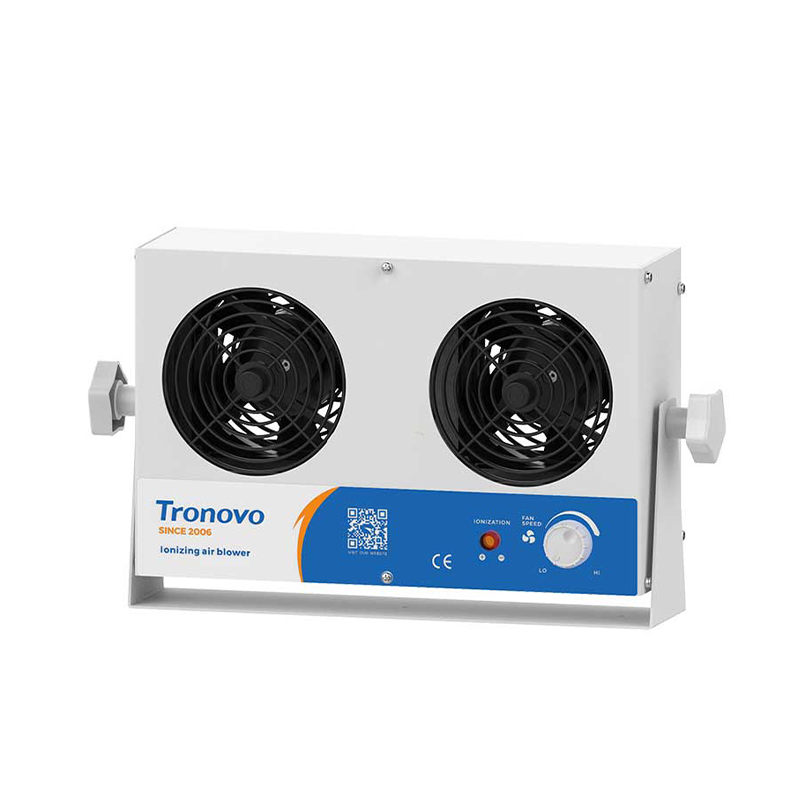

DF722B Desktop Ionizing Air Blower
DF722B Desktop Ionizing Air Blower

DF722B Desktop Ionizing Air Blower

0
Ionizers use AC ionization technology to provide a stable ion balance that quickly eliminates static electricity from the work table. The lightweight and small design makes it easy to place it anywhere on the table. Excellent performance, provide good anti-static damage protection of the product, and also prevent dust particles from adsorbing on the product. Built-in ionic needle cleaning brush simplifies maintenance procedures.
Performance
❯ Quickly eliminates static electricity
❯ Directly to the work desktop
❯ Quickly eliminates static electricity
❯ Built-in ionic needle cleaning brush
❯ The wind is as strong as you like
❯ Visualize the status of your work
❯ Higher quality assurance
Key Features
❯ The dissipation time is fast
❯ Lightweight in size
❯ The dissipation time is fast
❯ Easy maintenance
❯ The wind speed is adjustable
❯ Ionization indicator
❯ CE certificate
Downloads
❯ DF722B-Tronovo Desktop lonizing Air Blower

You may also be interested in these products

Product Parameter

  • Model
  • DF722B
  • Voltage
  • 220V/50Hz or 110V/60Hz(customized)
  • Power
  • 6OW
  • Discharge
  • ≤2.5 s @ 30cm (Max Airflow)
  • Balance
  • ≤|±15V|(AVE)
  • Technology
  • AC
  • Airflow area
  • 60cmX90cm
  • Airflow
  • 2x45~110 CFM
  • Audible Noise
  • 50dB minimum and 90dB maximum
  • Temperature
  • Temperature: 0 to 40°C & Humidity: 35 to 80%RH
  • Ozone
  • ≤0.03ppm
  • Installation
  • Fitted with metal brackets/seats
  • Weight
  • 4.2kg
  • Dimensions
  • 394X97 X230mm
  • Optional
  • Dust filter
  • Warranty
  • One-year

Product Details


ESD protection standards

In line with the United States EOS/ESD standard, the use of charged flat panel monitor accurate detection of static elimination performance, to ensure that the residual voltage stability control in the ± 35V safety range. Electrostatic dissipation time<3 seconds, quickly neutralize the charge, suitable for electronic manufacturing, semiconductor and other ESD sensitive environment. Through ANSI/ESD S20.20 certification, we provide electrostatic protection solutions to ensure production yield and equipment safety.

Filter cleaning hood

In a dusty environment, the installation of high-efficiency dust filter cover can significantly improve air quality and block harmful substances such as dust and particles. Made of corrosion-resistant materials, mesh design science, not only to ensure air circulation, but also effectively intercept dust, extend the service life of equipment. Suitable for high dust areas, the easy-to-disassemble design simplifies the maintenance process.


Inda Styn Veronmentz, Ity Isre, Comendeto, Instaël Ahfürth.

According to the American ESD Association ANSI/ESD S20.20 standard, the electrostatic dissipation time needs to be tested under high wind speed conditions, requiring rapid decay from 1000V to 100V. The test uses the charge plate monitoring method to record the voltage decay curve to ensure accurate data. It is suitable for electronic manufacturing, semiconductor and other ESD sensitive environments to verify the electrostatic neutralization efficiency of ion fans and other equipment, and the residual voltage should be stable within ± 35V.

Test instrument: CPM374

Using CPM374 electrostatic tester, the test voltage decays rapidly from ± 1000V to ± 100V at a measuring distance of 30cm, which meets the requirements of IEC61340-5-1 standards. The test environment humidity is 55% and the temperature is 25°C to ensure accurate and reliable data. It is suitable for electronic manufacturing, semiconductor and other ESD sensitive areas to verify the efficiency of ion fan, and the residual voltage is stable within ± 35V.
