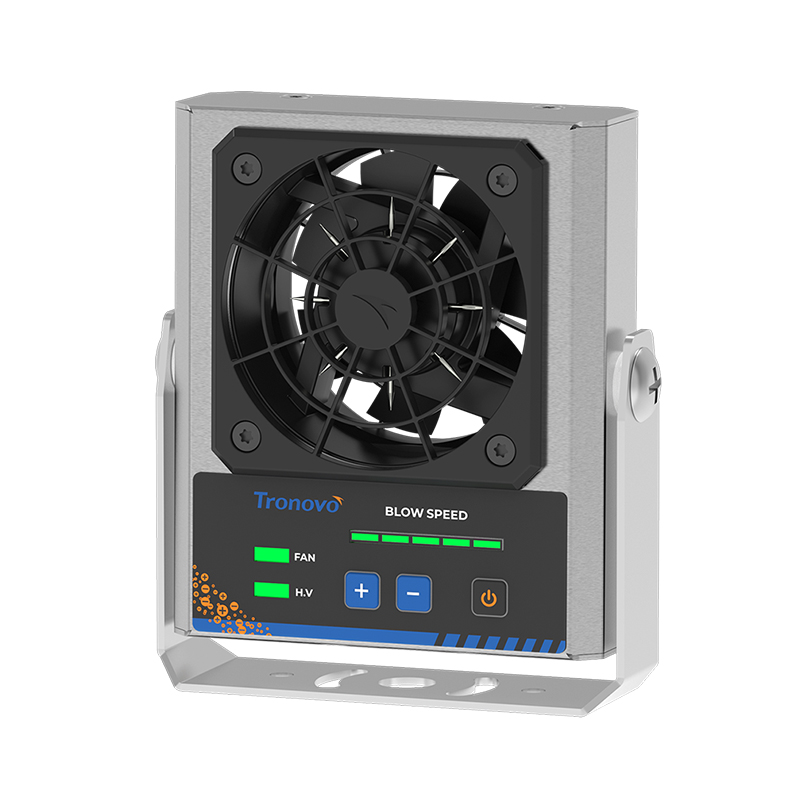

DF231 Small HF lonizing Air Blower
DF231 Small HF lonizing Air Blower

DF231 Small HF lonizing Air Blower

The compact and slim design can be easily installed inside the device regardless of the installation position, it can quickly eliminate static electricity and has a stable ion balance, providing the best protection against static damage of the component. When an abnormality is perceived, an alarm signal is output, and the power supply is cut off at the same time to prevent problems before they occur. in the case of contamination of the electrode pin, etc, the self-diagnosis needs to be cleaned, and an alarm signal is output.
Performance
❯ The ultra-thin thickness is only 39mm
❯ Extremely stable ionic balance
❯ lon needle abnormal maintenance warning
❯ The abnormal status can be displayed intuitively
❯ The air volume can be adjusted by pressing a button
❯ It has lO control interface and wireless and wired networking functions
Key Features
❯ Compact and slim design
❯ High-frequency AC technology
❯ The new ion needle detection function has been upgraded
❯ Four automatic alarm functions
❯ 5 levels of air volume adjustment
❯ Signal input/output control function
Downloads
❯ DF231-DF231P-Tronovo Small HF lonizing Air Blower

You may also be interested in these products

Product Parameter

  • Model
  • DF231
  • Voltage
  • 24VDC±5%
  • Power
  • 4.5W
  • Discharge
  • ≤2.0S(Max Airflow)
  • Balance
  • ≤|±10V|(AVE)
  • Technology
  • High-frequency Ac mode, about ±2KV, 70KHz
  • Airflow
  • 5~24CFM
  • Airflow area
  • 6x45cm
  • Noise
  • 60dBA @ 100cm
  • Ozone
  • <0.04ppm @ 15cm
  • Alarm
  • Fan Alarm & High Voltage Alarm
  • Interface
  • I/O input and output
  • Material
  • Discharge needle: tungsten, housing: SUs 304
  • Temperature
  • 0~+45°C(note no condensation),35~75%RH
  • Dimensions
  • 111.5x98x38.8mm
  • Weight
  • Approx.0.3Kg
  • Warranty
  • One-year

Product Details


Small ion fan

Thin and light design, suitable for small space installation.

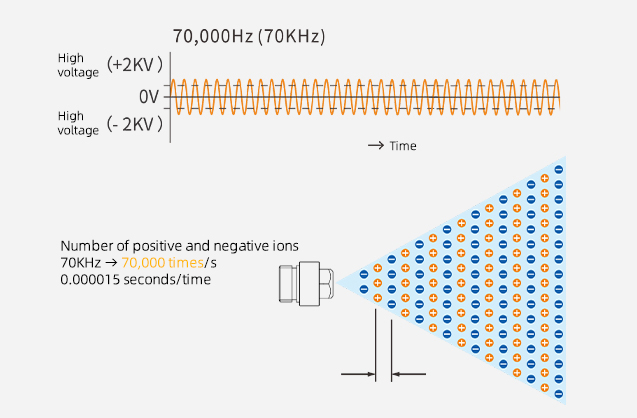

high frequency AC ionization technique

High level of static elimination, low pressure 2500V; ion generation frequency 70000 times/sec; ion balance is extremely stable (no adjustment required)
                   Can carry ions through the pipeline
                   Fast power consumption
                   Can be used at close range
                   High security

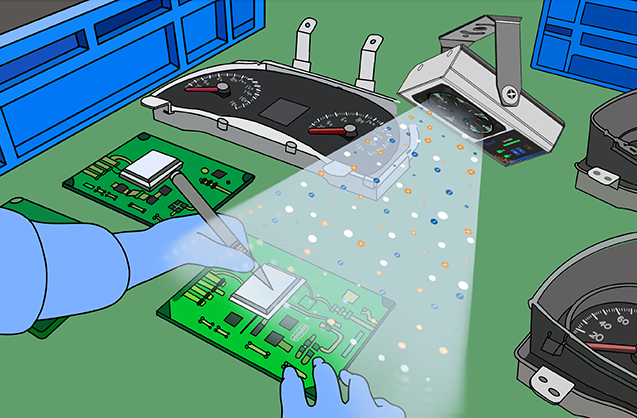

Instrument panel assembly static elimination

The influence of static electricity on product quality is very large, dust adsorption caused by electrostatic attraction, dielectric breakdown caused by electrostatic discharge, the installation of static eliminator in the working area, greatly reducing the electrostatic hidden danger in the production process of electronic components.

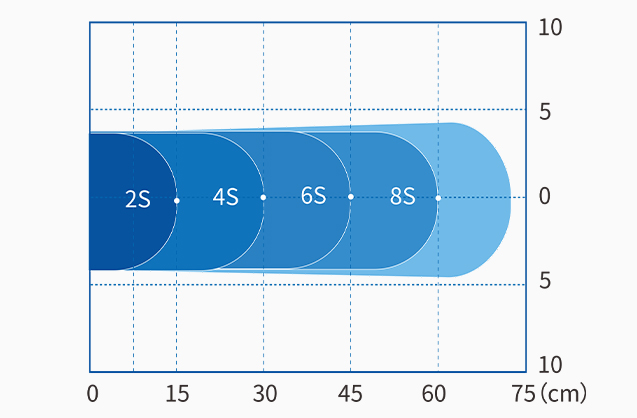

Typical Dissipation Time

According to the American ESD Association standard: ANSI/ESDS20.20-2014 standard, each point represents the electrostatic dissipation time from 1000V to 100V at the highest wind speed.

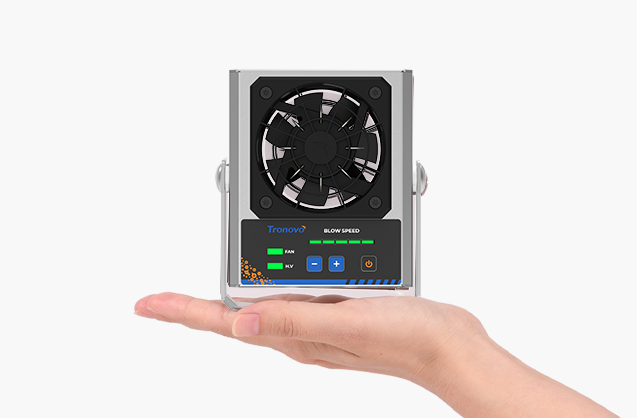

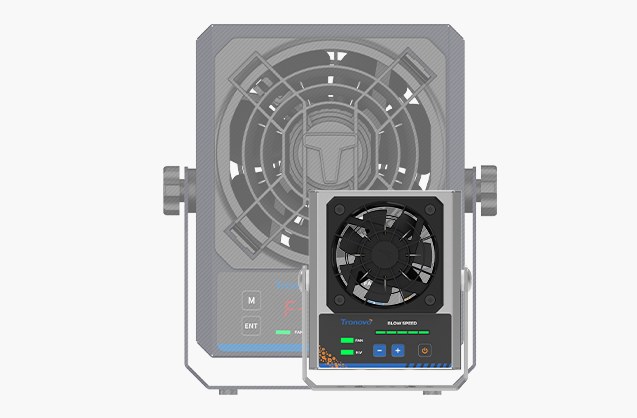

Space saving-equivalent to 1/4 of the size of traditional products *

Thickness of only 38.8mm, small volume, flexible operation, less space, can be easily installed in the equipment or small space scene

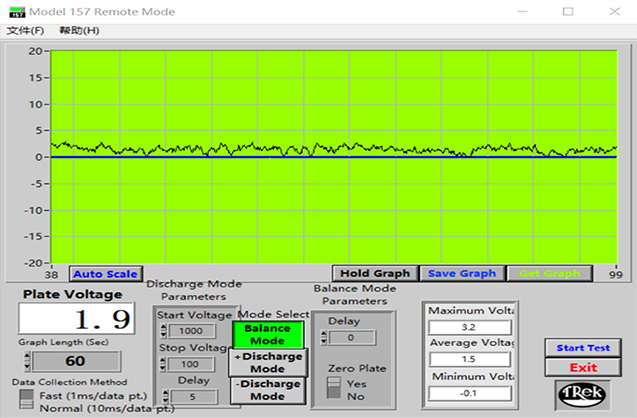

Ion Balance [Performance Chart]

Each 1 of needles can release positive and negative ions. Compared with the DC type, it is not easy to adsorb charged particles in the environment. The ion balance can maintain long-term stability (without adjustment). At the same time, it has the characteristics of fast power consumption, safety and reliability, close use, and saving maintenance.

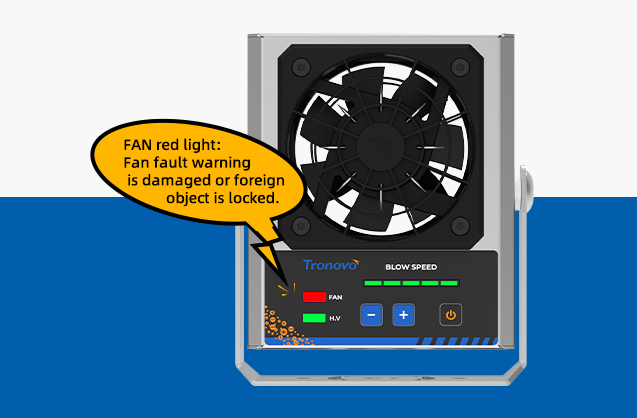

Fan alarm-visual display of fan operation status

When the fan is abnormal, the red light will be displayed and the power will be cut off to take precautions.

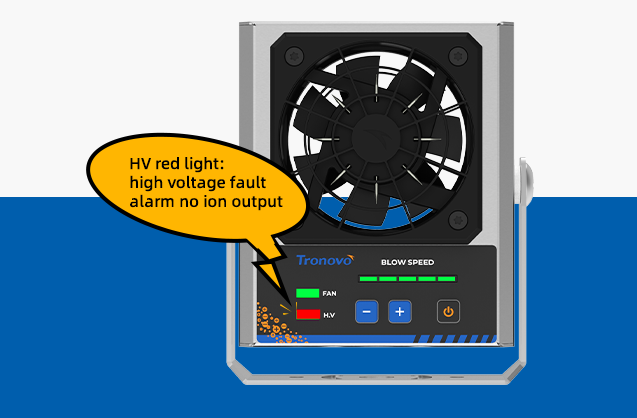

High voltage alarm-visual display of ion output status

When the output state of the ion at the moment senses abnormal high pressure, the red light will display and give a warning.

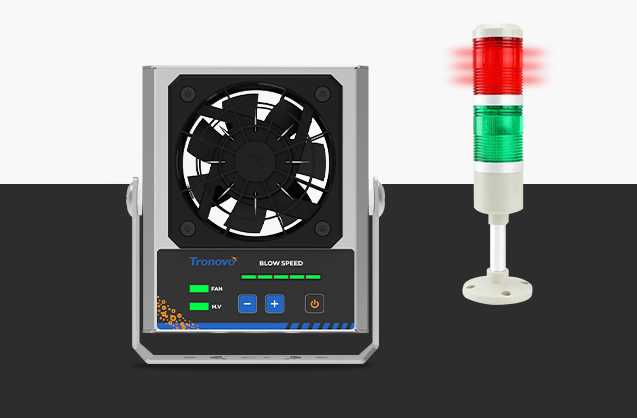

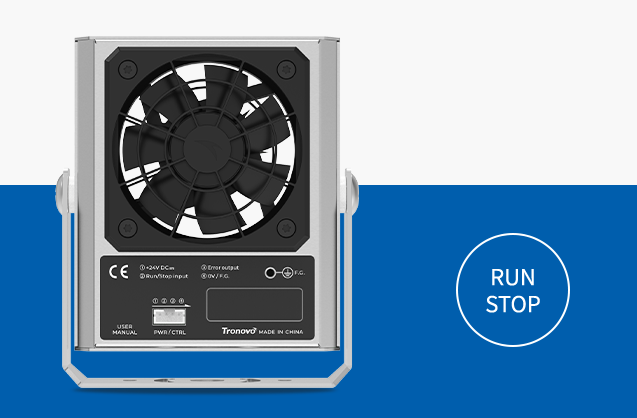

Remote monitoring and control-reduce manual intervention and improve efficiency

Realize automatic operation of equipment, such as automatic start-stop, automatic alarm, etc.

Fault feedback and maintenance-real-time alarm, quickly locate the problem

PLC interface can improve the reliability and stability of the equipment,
