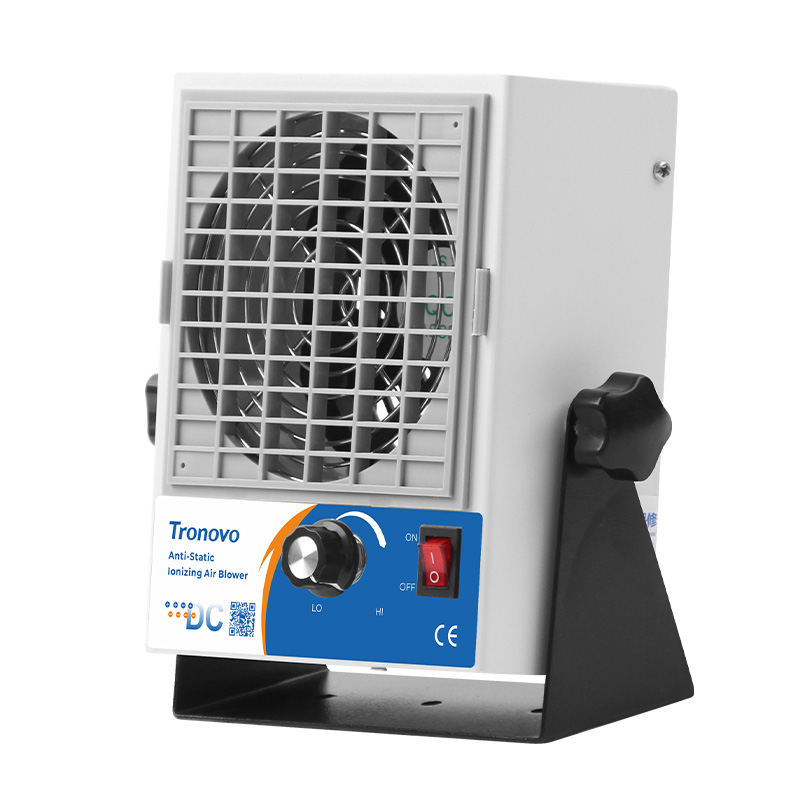

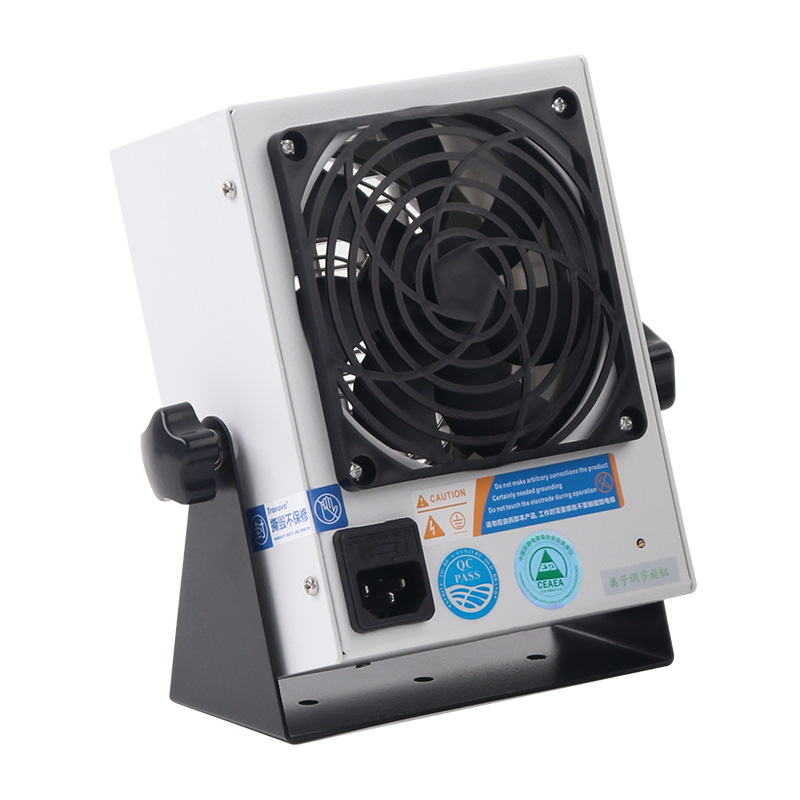

DF821C Desktop Ionizing Air Blower
DF821C Desktop Ionizing Air Blower
DF821C Desktop Ionizing Air Blower
DF821C Desktop Ionizing Air Blower

DF821C Desktop Ionizing Air Blower

It adopts advanced closed-loop control circuit system, with stable performance and adjustable ion balance, large ion airflow coverage area and wide wind adjustment range. It adopts a new type of double high-pressure release to ensure the stability of the ionizing fan in any environment, and is an economical Dc ionizing fan that can meet the needs of high requirements for static removal and has stable performance.
Performance
❯ Quickly eliminates static electricity
❯ Directly to the work desktop
❯ The air volume can be controlled at will, andthe speed is steplessly regulated
❯ Ensure that the product is in protection
❯ Simplified maintenance procedures
Key Features
❯ Steady-state DC ionization technology
❯ The dissipation time is fast
❯ The wind is strong and the size can be adjusted
❯ Stable ion balance (can be calibrated)
❯ The ion needle is automatically cleaned when the machine is turned on
Downloads
❯ DF821 DF821C-Tronovo Desktop lonizing Air Blower

You may also be interested in these products

Product Parameter

  • Model
  • DF821C
  • Voltage
  • 220V/50Hz or 110V/60Hz
  • Auto Clean
  • ✔
  • Power
  • 14W
  • Discharge
  • ≤2.0 S @ 30cm (Max Airflow)
  • Balance
  • ≤|±10V|(AVE)
  • Technology
  • Steady-State DC
  • Airflow area
  • 30cm x90cm
  • Airflow
  • 35~70 cfm
  • Audible Noise
  • 50dB minimum and 90dB maximum
  • Temperature
  • Temperature: 0 to 40°C Humidity: 35 to 80%RH
  • Ozone
  • ≤0.03ppm (measured at 15cm in front of the fan)
  • Installation
  • Fitted with metal brackets/seats
  • Weight
  • 1.3kg
  • Dimensions
  • 64x195x205mm
  • Warranty
  • One-year

Product Details


Principle of static de-static

The discharge needle of the DC ionizing fan is divided into positive needle that only releases positive electricity and negative needle only releases negative electricity, which has obvious advantages in performance compared with AC type, and the disadvantage is that the environment and later maintenance requirements are higher.

ESD protection standards

For on-site audits, select ionizers from Angstrom ESD to meet the ionizer performance management requirements for ANSI/ESD S20.20 and IEC61340-5-1 certifications.


Typical dissipation time

High ion concentration, long distance rapid static removal, can be used in the clean room with stricter anti-static.

Test instrument: CPM374

Test voltage: ±1000V → ±100V attenuation
Measure distances：30CM
Measurement environment: humidity 55%, temperature 25°C
