DF231P Small HF lonizing Air Blower
DF231P Small HF lonizing Air Blower
DF231P Small HF lonizing Air Blower
DF231P Small HF lonizing Air Blower
DF231P Small HF lonizing Air Blower
DF231P Small HF lonizing Air Blower
DF231P Small HF lonizing Air Blower
DF231P Small HF lonizing Air Blower
DF231P Small HF lonizing Air Blower
DF231P Small HF lonizing Air Blower

DF231P Small HF lonizing Air Blower

The compact and slim design can be easily installed inside the device regardless of the installation position, it can quickly eliminate static electricity and has a stable ion balance, providing the best protection against static damage of the component. When an abnormality is perceived, an alarm signal is output, and the power supply is cut off at the same time to prevent problems before they occur. in the case of contamination of the electrode pin, etc, the self-diagnosis needs to be cleaned, and an alarm signal is output.
Performance
❯ The ultra-thin thickness is only 39mm
❯ Extremely stable ionic balance
❯ lon needle abnormal maintenance warning
❯ The abnormal status can be displayed intuitively
❯ The air volume can be adjusted by pressing a button
❯ It has lO control interface and wireless and wired networking functions
Key Features
❯ Compact and slim design
❯ High-frequency AC technology
❯ The new ion needle detection function has been upgraded
❯ Four automatic alarm functions
❯ 5 levels of air volume adjustment
❯ Signal input/output control function
Downloads
❯ DF231-DF231P-Tronovo Small HF lonizing Air Blower

You may also be interested in these products

Product Parameter

  • Model
  • DF231P
  • Voltage
  • 24VDC±5%
  • Power
  • 5W
  • Discharge
  • ≤1.5S(Max Airflow)
  • Balance
  • ≤|±10V|(AVE)
  • Technology
  • High-frequency Ac mode, about ±2KV, 70KHz
  • Airflow
  • 5~26CFM
  • Airflow area
  • 6x60cm
  • Noise
  • 60dBA @ 100cm
  • Ozone
  • <0.04ppm @ 15cm
  • Alarm
  • Fan Alarm & High Voltage Alarm
  • Interface
  • WIFl/Ethernet & I/O input and output
  • Material
  • Discharge needle: tungsten, housing: SUs 304
  • Temperature
  • 0~+45°C(note no condensation),35~75%RH
  • Dimensions
  • 111.5x98x48.8mm
  • Weight
  • Approx. 0.37Kg
  • Warranty
  • One-year

Product Details


Static elimination fan

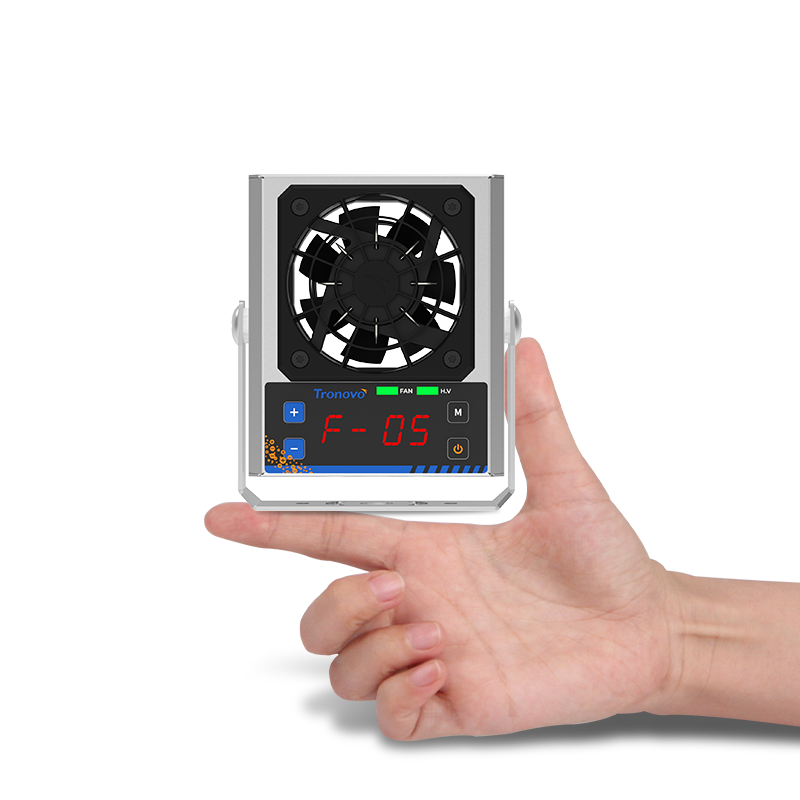

Small design, only palm size.

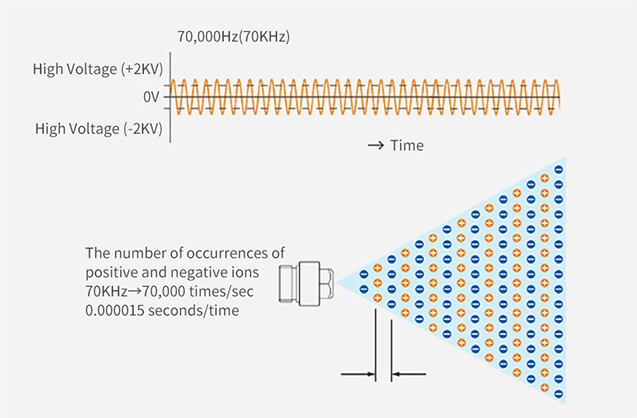

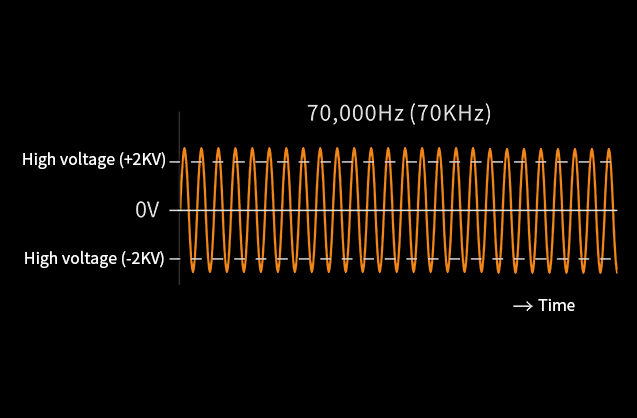

high frequency AC ionization technique

High level of static elimination, low pressure 2500V;
  Ion generation frequency 70000 times/sec;
  Ion balance is extremely stable (no adjustment required)
                     Can carry ions through the pipeline
                     Fast power consumption
                     Can be used at close range
                     High security

7b6027e484ebbd

Static elimination inside the device

Lightweight design, stable ion balance, easy to hang it in any position, can quickly eliminate the current high-end process generated by static electricity, to provide components of the best anti-static damage protection.

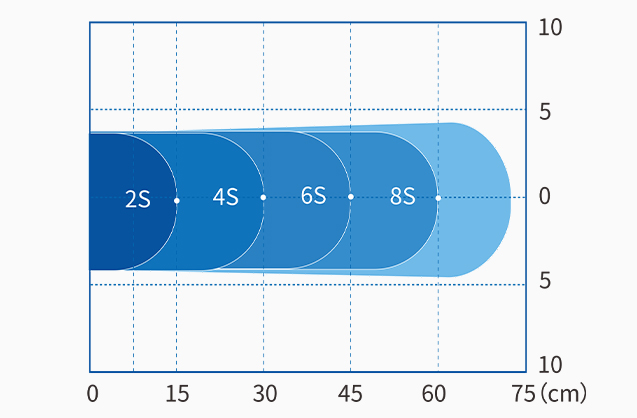

Typical Dissipation Time

According to the American ESD Association standard: ANSI/ESDS20.20-2014 standard, each point represents the electrostatic dissipation time from 1000V to 100V at the highest wind speed.

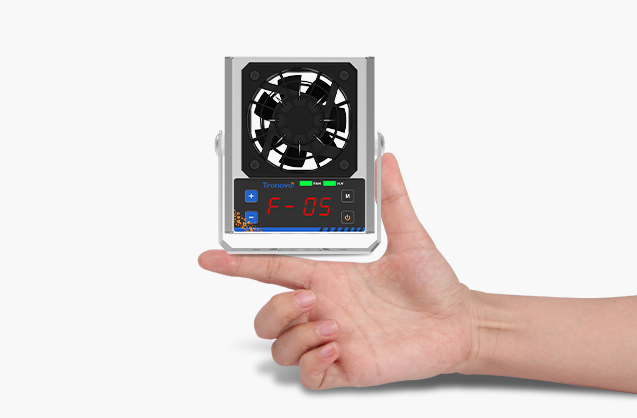

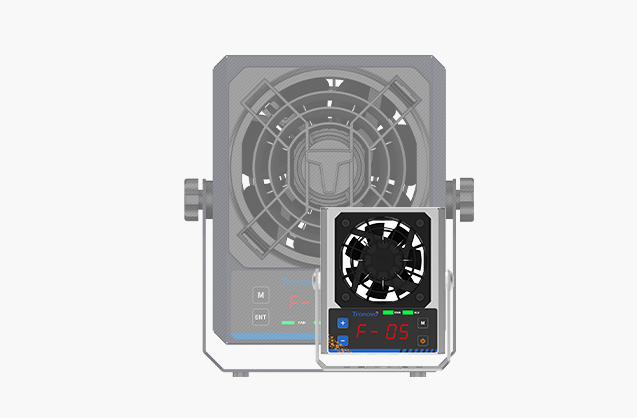

Miniaturization-equivalent to 1/4 of the size of traditional products

Through independent research and development technology to achieve "ultra-small" and "high-speed static elimination" both, can be easily installed in a small location or subsequent additional installation.

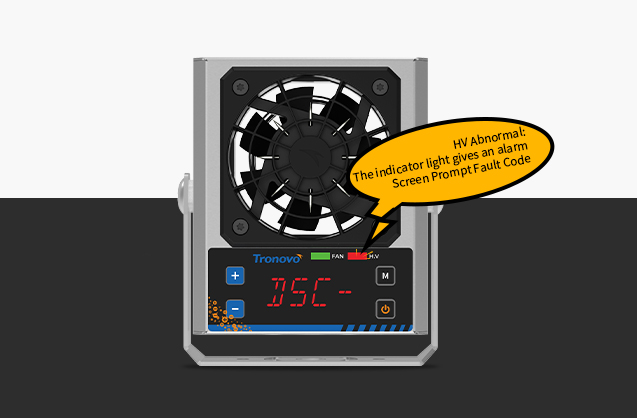

Alarm output - visual display ofoperational status

Equipped with a display, it can confirm the operation status according to the content displayed on the screen, output an alarm signal when an abnormality is perceived, and cut off the power supply at the same time, so as to prevent problems before they occur.

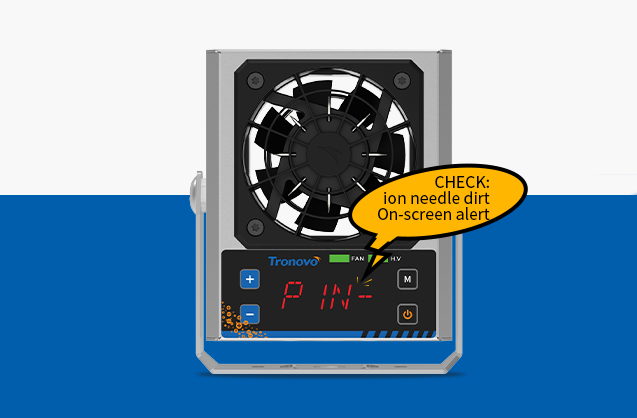

Maintenance Alarm - Equipped with ion needle dirt detection function

The level of dirt in the ion needle is monitored at all times, and maintenance is required through signal output and LED light to warn you.

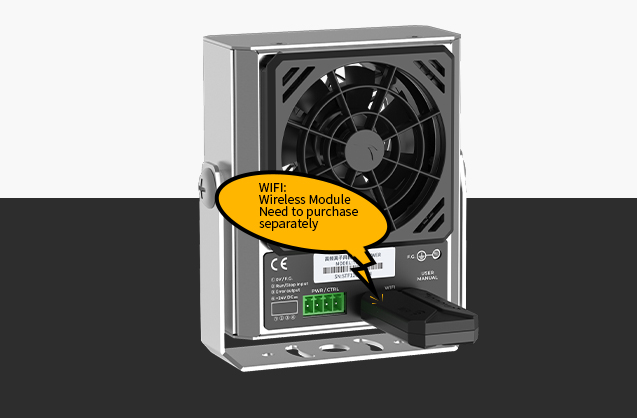

Intelligent monitoring - with network monitoring function

Manually through the mobile phone WeChat or computer software can manage the ionizer switch, adjust the air volume, and check the working status of the ionizer in real time.


Safer - the release voltage is only 2200V

The imported customized ceramic high-pressure generator is reliable and safe.

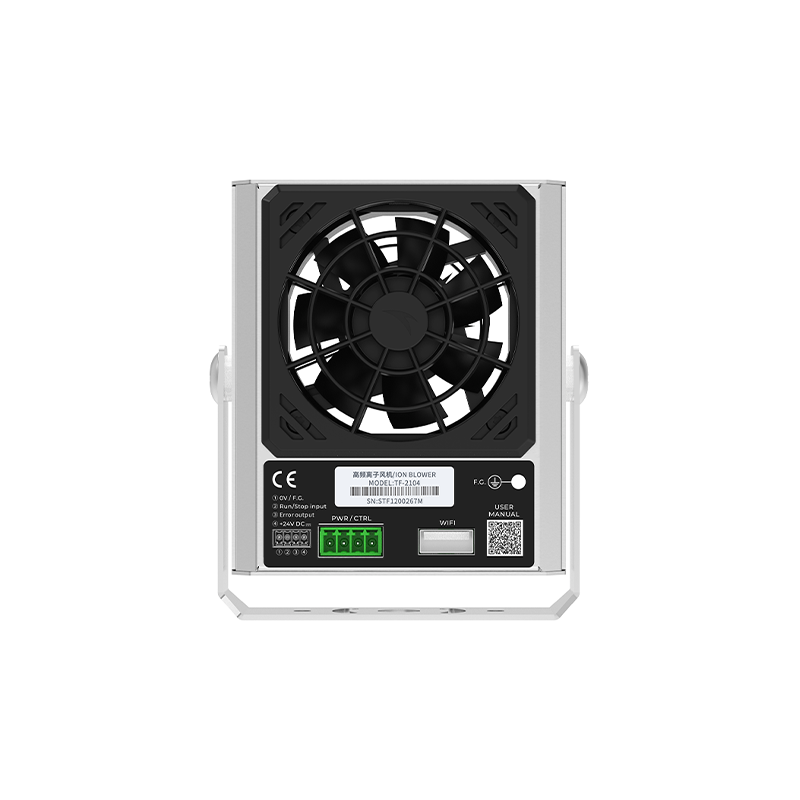

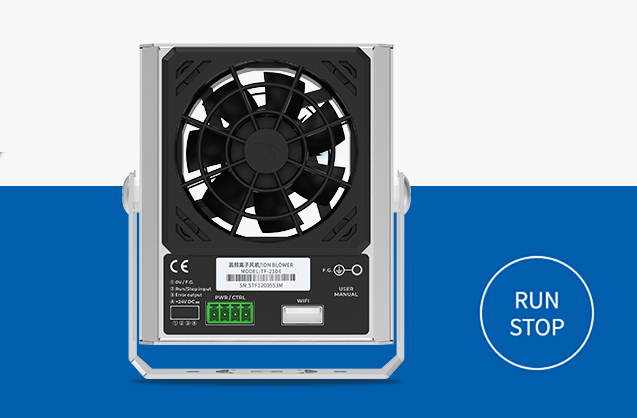

IO interface - signal input and output control

For PLC automation control, the IO interface is the most important component.

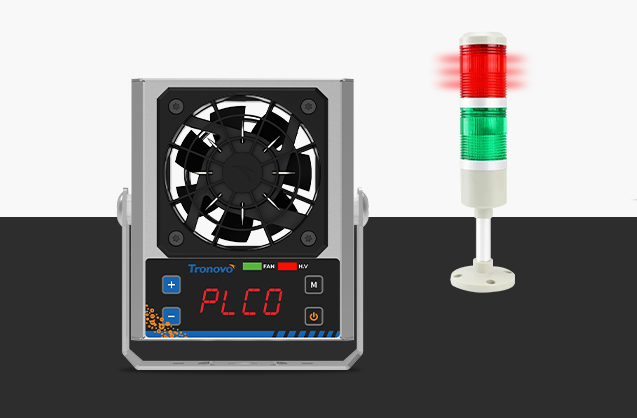

Practicality - two-way alarm fault signal output

Use fault signals to remotely monitor ionizing fans for maintenance or faults
