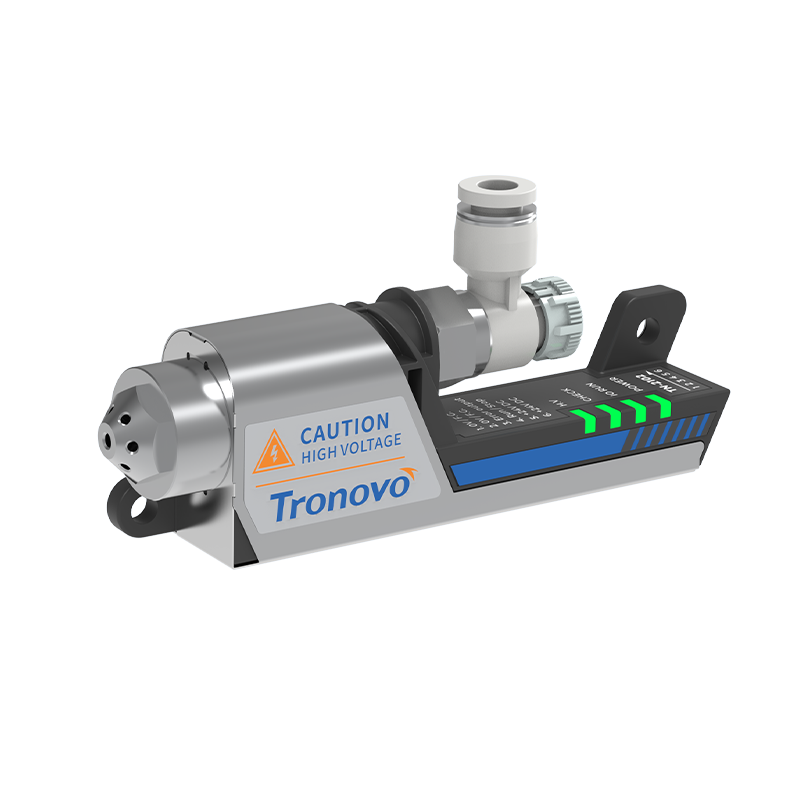

DN251-SN02 / DN252-SN02 Ultra Ionizing nozzle _Nozzle Type Ionizer_Static Elimination_Products

Product Details

The LED indicator visually shows the working status

LED status indicator is clear and intuitive, real-time display of the working status of the static eliminator. Built-in intelligent ‘check function’ automatically monitors and indicates the need for ion needle cleaning. All function status (operation, abnormality, etc.) can be confirmed by the LED indicator. At the same time, it provides function status output signals to support external monitoring system docking to achieve remote centralised monitoring of the working status of the electrostatic precipitator to enhance the efficiency of production line management.

High-frequency AC ionization technology

High-frequency AC ionisation technology for efficient electrostatic dissipation. With an operating voltage of only 2200V and an ion generation frequency of up to 70kHz (70,000 cycles/second), the elimination rate is extremely fast. Ion balance is extremely stable and requires no adjustment after installation. Unique design supports pipeline delivery of ions, providing flexibility to meet the needs of remote or shaded areas. Safe low voltage allows for close mounting on precision workpieces to improve dust and static removal efficiency.

Positive dissipation time measurement chart:

The Positive Dissipation Time Measurement graph visualises the time it takes for a charged body to decay from a high voltage of +1000V to a safe voltage of +100V, and is the core indicator for assessing the efficiency of electrostatic dissipation.

Negative dissipation time measurement plot:

The Negative Dissipation Time Measurement graph visualises the ability of a static eliminator to handle negative charges: recording the time it takes to de-energise a charged object with a high negative voltage of -1000V to a safe low potential of -100V. This key metric quantifies how quickly a device can remove a negative charge; the shorter the time, the more efficient the negative static elimination. The legend is based on standard test conditions and is the central basis for evaluating the negative charge cancellation performance of equipment.

Stable ionic equilibrium

Stable ion balance: the core performance indicators of the electrostatic eliminator, refers to the continuous output of positive and negative ions, the object of the static voltage convergence of the state. Reflects the ion neutralisation accuracy of the equipment, to ensure that electronic components, precision instruments, etc. are free from electrostatic damage, adapted to high-frequency AC ionisation technology scene, to provide reliable anti-static protection for precision manufacturing.

MODEL NUMBER	Body style	Nozzle Accessories	Material	ILLUSTRATE
Diffusion nozzles	MODEL:DN251-SN01	MODEL:TN-SN01	SUS 304	Straight lines diffuse the air
Shower-type nozzles	MODEL:DN251-SN02	MODEL:TN-SN02	SUS 304	45 degree spray angle for wider air diffusion
Connected hose nozzles	MODEL:DN251-SN03	MODEL:TN-SN03	Metal	Ion nozzle body and conduit connection nozzle can be connected to any bend of the conductive conduit conduit diameter ø 6mm, the minimum bending radius: R25mm, need to purchase additional TN-SN10 adapter to use.
Adjustable point nozzle	MODEL:DN251-SN04	MODEL:TN-SN04	SUS 304	Can be in the range of 60 degrees, arbitrary adjustment of the spray angle to use first adjust the nozzle after the fixed nut, need to purchase additional TN-SN10 adapter to use!
Round-nosed nozzles	MODEL:DN251-SN05	MODEL:TN-SN05	Plastics	Powerful straight-line air can be injected from a small hole at the front end, with the addition of the TN-SN10 adapter.
Flat-head nozzles	MODEL:DN251-SN06	MODEL:TN-SN06	Plastics	Wide range of uniform electrostatic dust removal, requires additional TN-SN10 adapter for use
90-degree nozzle	MODEL:DN251-SN07	MODEL:TN-SN07	Plastics	The angle of the air jet is perpendicular to the threaded surface, making it ideal for space-constrained locations，Requires additional TN-SN10 adapter to use
Stick type side blow nozzle	MODEL:DN251-SN08	MODEL:TN-SN08	SUS 304	De-static effective length 270mm can improve the de-static area suitable for space-restricted places, need to add the purchase of TN-SN10 adapter use
Rod type side blow nozzle + bendable hose	MODEL:DN251-SN09	MODEL:TN-SN09	SUS 304	De-static effective length of 270mm, the rod-type side blowing nozzle edge to the conductive conduit conduit diameter ø 6mm, the minimum bending radius: R25mm, the length of the conduit has a greater impact on the time to remove static electricity, please follow the site to do the choice of the appropriate, need to add the purchase of the TN-SN10 adapter to use!
Nozzle adapters		MODEL:TN-SN10	SUS 304	RP1/4 (female) to M16×1.5 (male) is suitable between the nozzle and the thread of the static eliminator.
Bamboo gimbal nozzle	MODEL:DN251-SN19	MODEL:TN-SN19	Shuo material	It can be installed on DN251 or DN252, the default length of the product is 40cm, and there are 13 nozzles in total. Customers can shorten or extend as needed.
Universal nozzle	MODEL:DN251-SN20	MODEL:TN-SN20	Metal	The nozzle can be bent arbitrarily and does not need to be fixed Keep the curved shape unchanged, using a flower wine nozzle Can increase the elimination area
Rotate the fixing bracket		MODEL:TN-RB01	SUS 304	The ionic nozzle body is fixed and installed
