Product Details

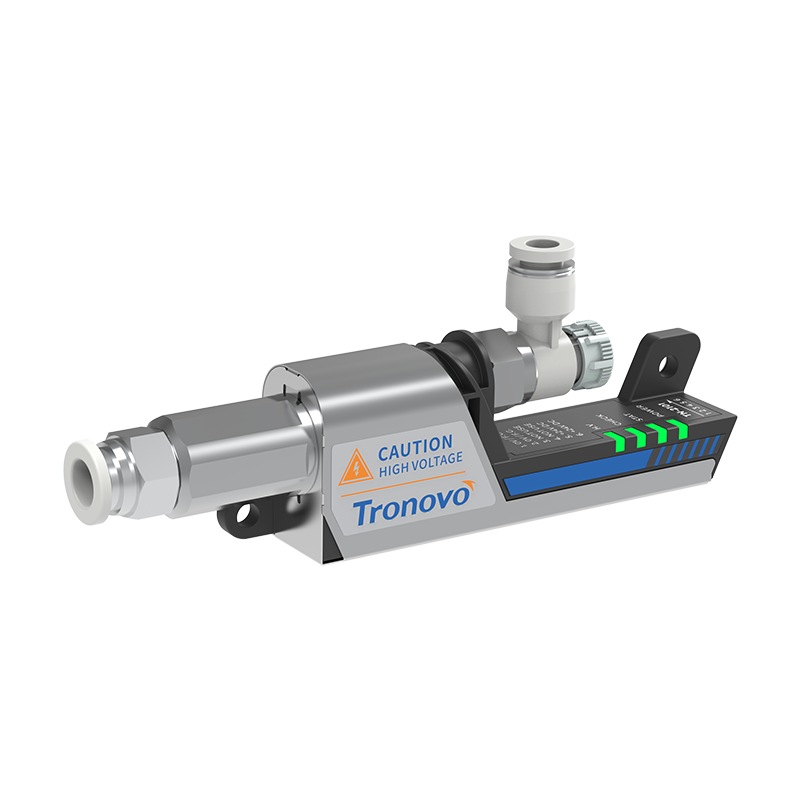

The LED indicator visually shows the working status

This ultra-compact dust and static elimination nozzle is designed for use in confined spaces. It effectively removes dust and pollutants from workpieces while efficiently eliminating static interference.

High-frequency AC ionization technology

This ultra-compact, high-frequency AC ion nozzle uses 70 kHz high-frequency ionisation technology and 2200 V low-voltage safety technology. Its high-speed electricity dissipation and non-adjustable ion balance mean that the unique pipeline ion delivery system can break through space limitations to support the safety of close-range operations and narrow spaces. It can complete high-efficiency dust removal and electrostatic discharge simultaneously, eliminating the risk of high pressure for precision manufacturing and providing stable, reliable industrial-grade static elimination solutions.

Positive dissipation time measurement chart:

The efficiency of static elimination is visualised by measuring the time it takes for a charged object with 1,000 V of static electricity to decay to 100 V. This accurately reflects the speed of dissipation and performance of electrostatic eliminators, providing supporting data for electrostatic control in electronics and precision manufacturing.

Negative dissipation time measurement plot:

The negative dissipation time measurement graph accurately records the entire process of negatively charged objects, from the decay of a high voltage of -1000V to the safety threshold of -100V. The time taken is the core indicator used to assess the performance of negative ion attenuation and static dissipation efficiency. Applying negative corona through the Charging Plate Monitor (CPM) and capturing the voltage profile in real time reflects the material's or equipment's ability to dissipate negative polar charge.

Stable ionic equilibrium

Thanks to ultra-stable ion balance technology, the static voltage on the surface of the target object is close to 0V under continuous irradiation conditions, which completely solves the residual voltage problem caused by ion imbalance in traditional equipment. It ensures the long-term stability of electrostatic elimination performance for use in semiconductor manufacturing, precision electronic assembly, and other highly sensitive applications, providing maintenance-free ESD protection solutions.

MODEL NUMBER	Body style	Nozzle Accessories	Material	ILLUSTRATE
Diffusion nozzles	MODEL:DN251-SN01	MODEL:TN-SN01	SUS 304	Straight lines diffuse the air
Shower-type nozzles	MODEL:DN251-SN02	MODEL:TN-SN02	SUS 304	45 degree spray angle for wider air diffusion
Connected hose nozzles	MODEL:DN251-SN03	MODEL:TN-SN03	Metal	Ion nozzle body and conduit connection nozzle can be connected to any bend of the conductive conduit conduit diameter ø 6mm, the minimum bending radius: R25mm, need to purchase additional TN-SN10 adapter to use.
Adjustable point nozzle	MODEL:DN251-SN04	MODEL:TN-SN04	SUS 304	Can be in the range of 60 degrees, arbitrary adjustment of the spray angle to use first adjust the nozzle after the fixed nut, need to purchase additional TN-SN10 adapter to use!
Round-nosed nozzles	MODEL:DN251-SN05	MODEL:TN-SN05	Plastics	Powerful straight-line air can be injected from a small hole at the front end, with the addition of the TN-SN10 adapter.
Flat-head nozzles	MODEL:DN251-SN06	MODEL:TN-SN06	Plastics	Wide range of uniform electrostatic dust removal, requires additional TN-SN10 adapter for use
90-degree nozzle	MODEL:DN251-SN07	MODEL:TN-SN07	Plastics	The angle of the air jet is perpendicular to the threaded surface, making it ideal for space-constrained locations，Requires additional TN-SN10 adapter to use
Stick type side blow nozzle	MODEL:DN251-SN08	MODEL:TN-SN08	SUS 304	De-static effective length 270mm can improve the de-static area suitable for space-restricted places, need to add the purchase of TN-SN10 adapter use
Rod type side blow nozzle + bendable hose	MODEL:DN251-SN09	MODEL:TN-SN09	SUS 304	De-static effective length of 270mm, the rod-type side blowing nozzle edge to the conductive conduit conduit diameter ø 6mm, the minimum bending radius: R25mm, the length of the conduit has a greater impact on the time to remove static electricity, please follow the site to do the choice of the appropriate, need to add the purchase of the TN-SN10 adapter to use!
Nozzle adapters		MODEL:TN-SN10	SUS 304	RP1/4 (female) to M16×1.5 (male) is suitable between the nozzle and the thread of the static eliminator.
Bamboo gimbal nozzle	MODEL:DN251-SN19	MODEL:TN-SN19	Shuo material	It can be installed on DN251 or DN252, the default length of the product is 40cm, and there are 13 nozzles in total. Customers can shorten or extend as needed.
Universal nozzle	MODEL:DN251-SN20	MODEL:TN-SN20	Metal	The nozzle can be bent arbitrarily and does not need to be fixed Keep the curved shape unchanged, using a flower wine nozzle Can increase the elimination area
Rotate the fixing bracket		MODEL:TN-RB01	SUS 304	The ionic nozzle body is fixed and installed
