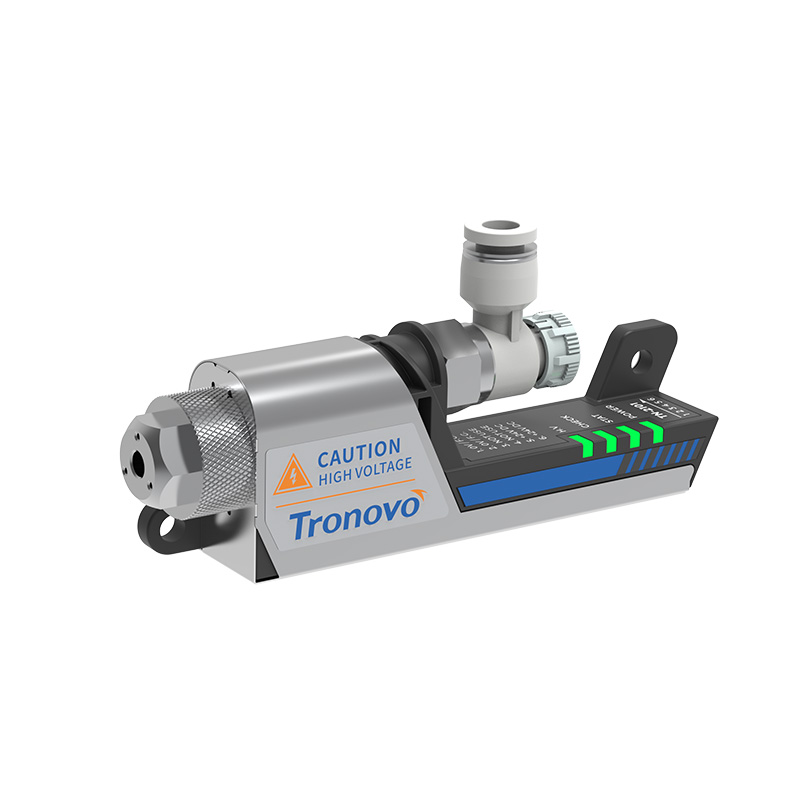

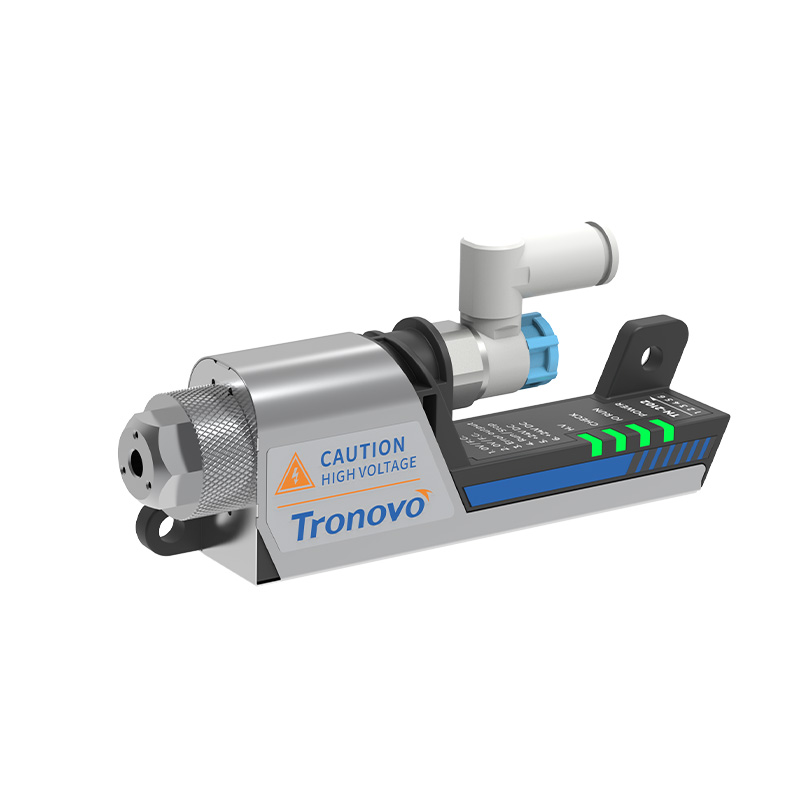

DN251-SN01 / DN252-SN01 Ultra Ionizing Nozzle_Nozzle Type Ionizer_Static Elimination_Products

Product Details

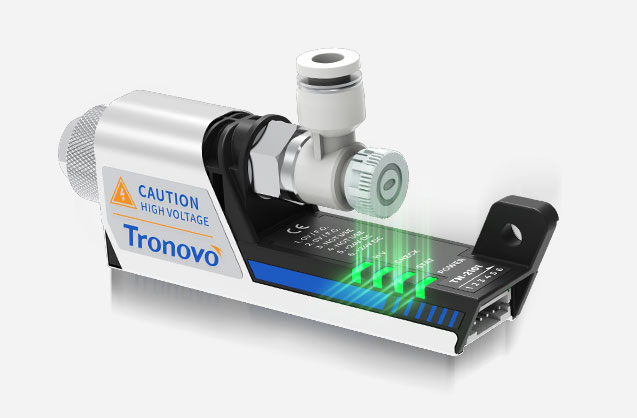

The LED indicator visually shows the working status

The LED indicator intuitively displays the operating status and the built-in 'check function' automatically prompts when the ion needle needs cleaning. The status of each function can be confirmed in real time through the LED and support function output signal. This makes it easy to monitor the operating status of the equipment from outside, achieving efficient operation and maintenance. This makes it suitable for precision electronics and instrument manufacturing, enhancing the reliability of electrostatic control.

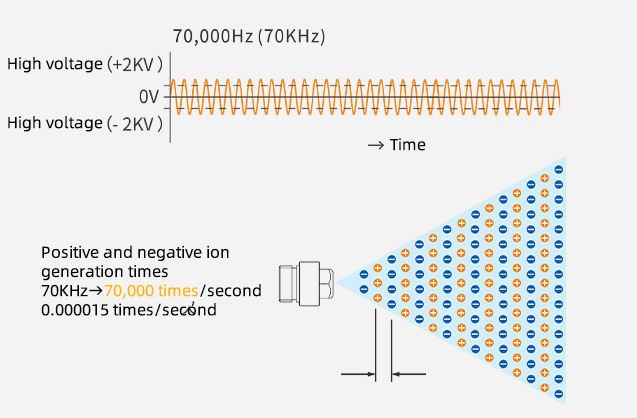

High-frequency AC ionization technology

Static electricity eliminator: With a low-voltage 2200V design, the ion generation frequency reaches 70,000 times per second for high-level static electricity elimination and a fast elimination speed. The ion balance is extremely stable with no need for adjustment. It supports pipeline delivery of ions and can be used in close proximity with a high level of security. It is suitable for precision electronics and instrument manufacturing, as well as other scenarios, and can efficiently solve the problem of static electricity.

Positive dissipation time measurement chart:

The positive dissipation time measurement chart clearly demonstrates the speed of static elimination. Record the time it takes for the equipment to discharge a charged object from a high voltage of +1000 V to a safe low voltage of +100 V. The shorter this time, the greater the efficiency of static elimination.

Negative dissipation time measurement plot:

Core performance: records the time taken for a charged object with a static charge of -1000 V to decay to -100 V. It accurately reflects the negative charge neutralisation speed of the electrostatic eliminator and provides key data to support electrostatic control of electronic components, precision instruments, and other applications. It also helps to optimise anti-static solutions.

Stable ionic equilibrium

The core performance of the electrostatic eliminator is stable ion balance. This refers to the size of the static voltage on the surface of the target object when positive and negative ions are continuously released. The higher the ion balance and the lower the residual voltage, the more accurate and reliable the elimination effect. Excellent ion balance eliminates the need for cumbersome adjustments, significantly improving the accuracy and yield of electrostatic dissipation in precision manufacturing processes.

MODEL NUMBER	Body style	Nozzle Accessories	Material	ILLUSTRATE
Diffusion nozzles	MODEL:DN251-SN01	MODEL:TN-SN01	SUS 304	Straight lines diffuse the air
Shower-type nozzles	MODEL:DN251-SN02	MODEL:TN-SN02	SUS 304	45 degree spray angle for wider air diffusion
Connected hose nozzles	MODEL:DN251-SN03	MODEL:TN-SN03	Metal	Ion nozzle body and conduit connection nozzle can be connected to any bend of the conductive conduit conduit diameter ø 6mm, the minimum bending radius: R25mm, need to purchase additional TN-SN10 adapter to use.
Adjustable point nozzle	MODEL:DN251-SN04	MODEL:TN-SN04	SUS 304	Can be in the range of 60 degrees, arbitrary adjustment of the spray angle to use first adjust the nozzle after the fixed nut, need to purchase additional TN-SN10 adapter to use!
Round-nosed nozzles	MODEL:DN251-SN05	MODEL:TN-SN05	Plastics	Powerful straight-line air can be injected from a small hole at the front end, with the addition of the TN-SN10 adapter.
Flat-head nozzles	MODEL:DN251-SN06	MODEL:TN-SN06	Plastics	Wide range of uniform electrostatic dust removal, requires additional TN-SN10 adapter for use
90-degree nozzle	MODEL:DN251-SN07	MODEL:TN-SN07	Plastics	The angle of the air jet is perpendicular to the threaded surface, making it ideal for space-constrained locations，Requires additional TN-SN10 adapter to use
Stick type side blow nozzle	MODEL:DN251-SN08	MODEL:TN-SN08	SUS 304	De-static effective length 270mm can improve the de-static area suitable for space-restricted places, need to add the purchase of TN-SN10 adapter use
Rod type side blow nozzle + bendable hose	MODEL:DN251-SN09	MODEL:TN-SN09	SUS 304	De-static effective length of 270mm, the rod-type side blowing nozzle edge to the conductive conduit conduit diameter ø 6mm, the minimum bending radius: R25mm, the length of the conduit has a greater impact on the time to remove static electricity, please follow the site to do the choice of the appropriate, need to add the purchase of the TN-SN10 adapter to use!
Nozzle adapters		MODEL:TN-SN10	SUS 304	RP1/4 (female) to M16×1.5 (male) is suitable between the nozzle and the thread of the static eliminator.
Bamboo gimbal nozzle	MODEL:DN251-SN19	MODEL:TN-SN19	Shuo material	It can be installed on DN251 or DN252, the default length of the product is 40cm, and there are 13 nozzles in total. Customers can shorten or extend as needed.
Universal nozzle	MODEL:DN251-SN20	MODEL:TN-SN20	Metal	The nozzle can be bent arbitrarily and does not need to be fixed Keep the curved shape unchanged, using a flower wine nozzle Can increase the elimination area
Rotate the fixing bracket		MODEL:TN-RB01	SUS 304	The ionic nozzle body is fixed and installed
