DN251-SN20 / DN252-SN20 Ultra Ionizing nozzle_Nozzle Type Ionizer_Static Elimination_Products

Product Details

The LED indicator visually shows the working status

LED status indicator intuitively shows the working status of the static eliminator, and has intelligent ion needle cleaning warning function. All operating status and ion abnormality can be clearly confirmed through the LED, and at the same time provide an output signal to support external equipment to monitor the ion fan operating status in real time and remote monitoring, to achieve maintenance-free static elimination equipment comprehensive status monitoring and enhance the efficiency of equipment management.

High-frequency AC ionization technology

The high-frequency AC ion nozzle adopts low-voltage drive technology (only 2,500V), combined with an ion generation frequency of 70,000 ions/second, to achieve highly efficient static elimination and ultra-fast de-energisation speed. The ion balance is extremely stable and the design is adjustment-free. Innovative technology allows for remote delivery of ions through pipework, supporting close proximity installations, especially in space-constrained scenarios. Low-voltage operation significantly improves equipment safety, making it a safe and efficient electrostatic dissipation solution for precision manufacturing.

Positive dissipation time measurement chart:

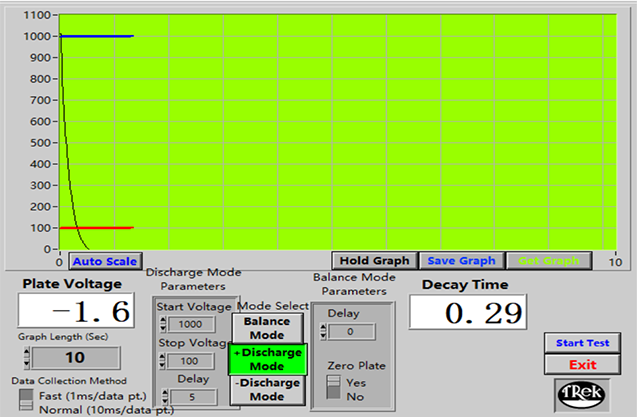

Positive Dissipation Time Measurement is used to visualise the effect of static elimination: it records the time it takes for an object with a charge of +1000V to be reduced to +100V under the action of a static elimination device, which is a key indicator of the efficiency of static eliminators, and helps to accurately assess the performance of the device in removing static electricity.

Negative dissipation time measurement plot:

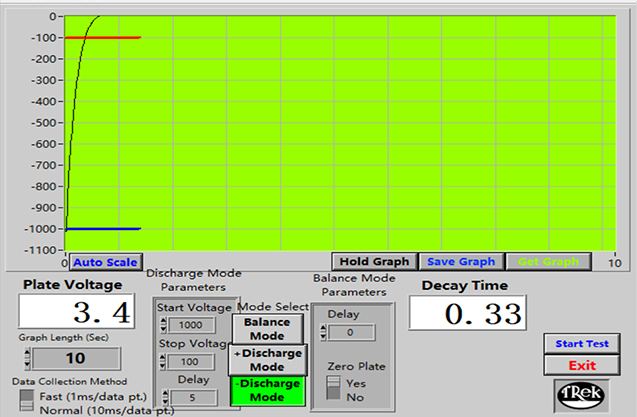

The Negative Dissipation Time Measurement graph visualises the core performance of an ESD dispenser in handling negative charges: the rate of dissipation. It accurately measures the time it takes for an ESD device to rapidly decay the charge of a highly negatively charged object from -1000V to -100V. This key indicator directly reflects the high efficiency negative charge neutralisation capability and dissipation efficiency, and is an important basis for evaluating the negative static eliminator performance and equipment selection.

Stable ionic equilibrium

Stable ion balance is the core symbol of efficient electrostatic elimination, which means that under the continuous irradiation of positive and negative ions, the residual static voltage of the target object can be accurately converged to 0 V. This represents a high degree of equilibrium of positive and negative charges output from the electrostatic eliminator, which directly determines the precision and final elimination effect of the elimination of electricity, and it is a key index for evaluating the performance of the ion balance and the ability of electrostatic control.

MODEL NUMBER	Body style	Nozzle Accessories	Material	ILLUSTRATE

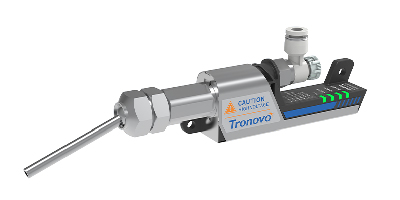

Diffusion nozzles	MODEL:DN251-SN01	MODEL:TN-SN01	SUS 304	Straight lines diffuse the air

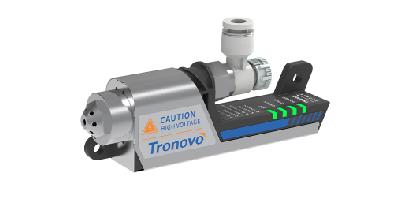

Shower-type nozzles	MODEL:DN251-SN02	MODEL:TN-SN02	SUS 304	45 degree spray angle for wider air diffusion

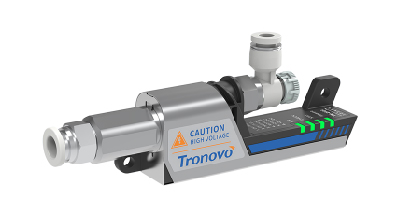

Connected hose nozzles	MODEL:DN251-SN03	MODEL:TN-SN03	Metal	Ion nozzle body and conduit connection nozzle can be connected to any bend of the conductive conduit conduit diameter ø 6mm, the minimum bending radius: R25mm, need to purchase additional TN-SN10 adapter to use.
Adjustable point nozzle	MODEL:DN251-SN04	MODEL:TN-SN04	SUS 304	Can be in the range of 60 degrees, arbitrary adjustment of the spray angle to use first adjust the nozzle after the fixed nut, need to purchase additional TN-SN10 adapter to use!
Round-nosed nozzles	MODEL:DN251-SN05	MODEL:TN-SN05	Plastics	Powerful straight-line air can be injected from a small hole at the front end, with the addition of the TN-SN10 adapter.

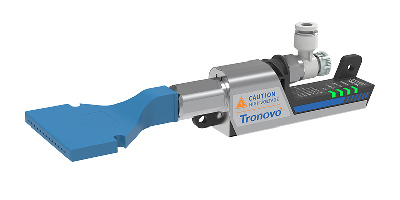

Flat-head nozzles	MODEL:DN251-SN06	MODEL:TN-SN06	Plastics	Wide range of uniform electrostatic dust removal, requires additional TN-SN10 adapter for use
90-degree nozzle	MODEL:DN251-SN07	MODEL:TN-SN07	Plastics	The angle of the air jet is perpendicular to the threaded surface, making it ideal for space-constrained locations，Requires additional TN-SN10 adapter to use

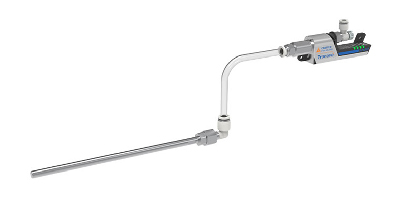

Stick type side blow nozzle	MODEL:DN251-SN08	MODEL:TN-SN08	SUS 304	De-static effective length 270mm can improve the de-static area suitable for space-restricted places, need to add the purchase of TN-SN10 adapter use

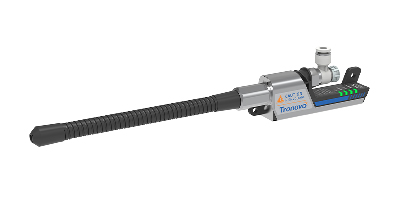

Rod type side blow nozzle + bendable hose	MODEL:DN251-SN09	MODEL:TN-SN09	SUS 304	De-static effective length of 270mm, the rod-type side blowing nozzle edge to the conductive conduit conduit diameter ø 6mm, the minimum bending radius: R25mm, the length of the conduit has a greater impact on the time to remove static electricity, please follow the site to do the choice of the appropriate, need to add the purchase of the TN-SN10 adapter to use!
Nozzle adapters		MODEL:TN-SN10	SUS 304	RP1/4 (female) to M16×1.5 (male) is suitable between the nozzle and the thread of the static eliminator.

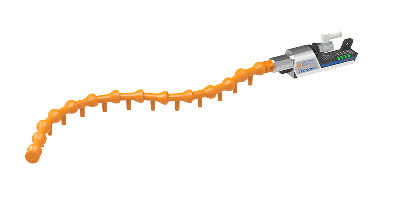

Bamboo gimbal nozzle	MODEL:DN251-SN19	MODEL:TN-SN19	Shuo material	It can be installed on DN251 or DN252, the default length of the product is 40cm, and there are 13 nozzles in total. Customers can shorten or extend as needed.
Universal nozzle	MODEL:DN251-SN20	MODEL:TN-SN20	Metal	The nozzle can be bent arbitrarily and does not need to be fixed Keep the curved shape unchanged, using a flower wine nozzle Can increase the elimination area
Rotate the fixing bracket		MODEL:TN-RB01	SUS 304	The ionic nozzle body is fixed and installed
