Product Details

The LED indicator visually shows the working status

The LED indicator shows the working status of the electrostatic eliminator. It is equipped with a 'check function' that can automatically prompt the need for ion needle cleaning, and the indicator clearly shows the status of each function. It also supports the output of function signals for real-time monitoring of the equipment's operating status from outside, improving the electrostatic eliminator's maintenance efficiency and making it suitable for precision electronic production.

High-frequency AC ionization technology

The electrostatic eliminator uses high-frequency AC ionisation technology to achieve high-level electrostatic elimination at a low voltage of 2200V. The ion generation frequency of 70,000 times per second makes the elimination process fast. The ion balance is extremely stable and does not require adjustment. Supporting pipeline delivery of ions, it can be used in close proximity for enhanced safety, making it ideal for high-efficiency static elimination in precision electronics, semiconductors and other applications.

Positive dissipation time measurement chart:

A positive dissipation time measurement graph is used to present the de-energising efficiency of an ESD eliminator. It records the time taken to reduce the charge on a +1000 V static electricity-charged object to +100 V. This intuitively reflects the de-energising speed of the device and the performance of ESD elimination. It also provides a key reference for evaluating the effectiveness of static protection in precision electronics and semiconductor scenarios.

Negative dissipation time measurement plot:

The negative dissipation time measurement graph visualises the results of the static dissipation time test, which measures the time it takes for a charged object carrying an initial high voltage of -1000 V to decay to a safe voltage of -100 V.

Stable ionic equilibrium

Stable ionic balance refers to the fact that the static voltage of an object tends to approach 0V when it is continuously irradiated by positive and negative ions from a static eliminator. This is one of the core indicators used to measure the performance of anti-static equipment. The stability of this balance directly affects the production of electronic components, precision instruments, and other aspects of electrostatic protection. For the manufacturing industry, it provides a key reference to help optimise anti-static programmes and reduce the risk of electrostatic damage, thereby improving production quality and safety.

MODEL NUMBER	Body style	Nozzle Accessories	Material	ILLUSTRATE
Diffusion nozzles	MODEL:DN251-SN01	MODEL:TN-SN01	SUS 304	Straight lines diffuse the air
Shower-type nozzles	MODEL:DN251-SN02	MODEL:TN-SN02	SUS 304	45 degree spray angle for wider air diffusion
Connected hose nozzles	MODEL:DN251-SN03	MODEL:TN-SN03	Metal	Ion nozzle body and conduit connection nozzle can be connected to any bend of the conductive conduit conduit diameter ø 6mm, the minimum bending radius: R25mm, need to purchase additional TN-SN10 adapter to use.
Adjustable point nozzle	MODEL:DN251-SN04	MODEL:TN-SN04	SUS 304	Can be in the range of 60 degrees, arbitrary adjustment of the spray angle to use first adjust the nozzle after the fixed nut, need to purchase additional TN-SN10 adapter to use!
Round-nosed nozzles	MODEL:DN251-SN05	MODEL:TN-SN05	Plastics	Powerful straight-line air can be injected from a small hole at the front end, with the addition of the TN-SN10 adapter.

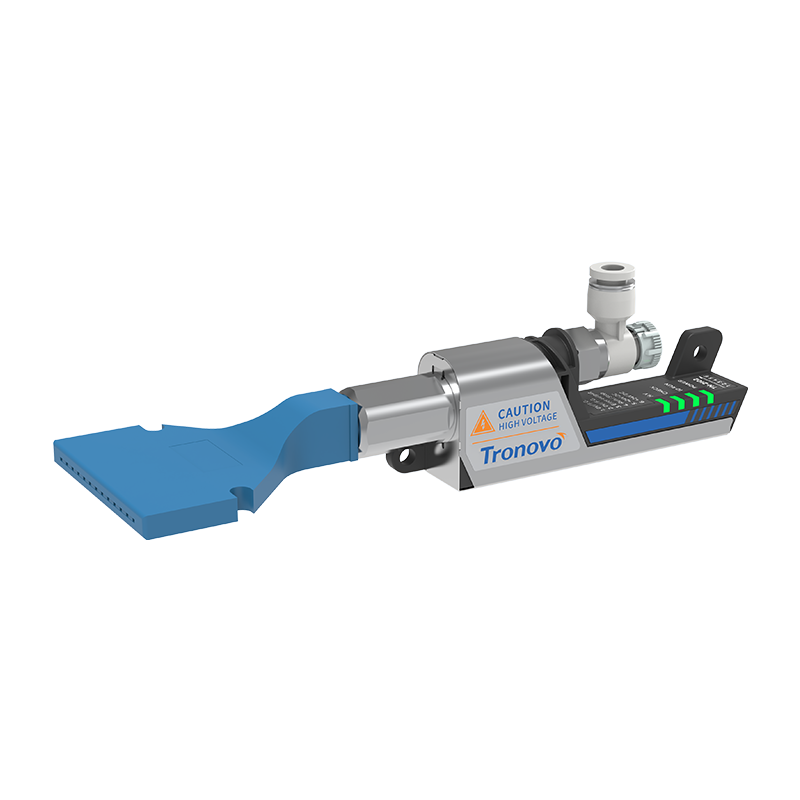

Flat-head nozzles	MODEL:DN251-SN06	MODEL:TN-SN06	Plastics	Wide range of uniform electrostatic dust removal, requires additional TN-SN10 adapter for use
90-degree nozzle	MODEL:DN251-SN07	MODEL:TN-SN07	Plastics	The angle of the air jet is perpendicular to the threaded surface, making it ideal for space-constrained locations，Requires additional TN-SN10 adapter to use
Stick type side blow nozzle	MODEL:DN251-SN08	MODEL:TN-SN08	SUS 304	De-static effective length 270mm can improve the de-static area suitable for space-restricted places, need to add the purchase of TN-SN10 adapter use
Rod type side blow nozzle + bendable hose	MODEL:DN251-SN09	MODEL:TN-SN09	SUS 304	De-static effective length of 270mm, the rod-type side blowing nozzle edge to the conductive conduit conduit diameter ø 6mm, the minimum bending radius: R25mm, the length of the conduit has a greater impact on the time to remove static electricity, please follow the site to do the choice of the appropriate, need to add the purchase of the TN-SN10 adapter to use!
Nozzle adapters		MODEL:TN-SN10	SUS 304	RP1/4 (female) to M16×1.5 (male) is suitable between the nozzle and the thread of the static eliminator.
Bamboo gimbal nozzle	MODEL:DN251-SN19	MODEL:TN-SN19	Shuo material	It can be installed on DN251 or DN252, the default length of the product is 40cm, and there are 13 nozzles in total. Customers can shorten or extend as needed.
Universal nozzle	MODEL:DN251-SN20	MODEL:TN-SN20	Metal	The nozzle can be bent arbitrarily and does not need to be fixed Keep the curved shape unchanged, using a flower wine nozzle Can increase the elimination area
Rotate the fixing bracket		MODEL:TN-RB01	SUS 304	The ionic nozzle body is fixed and installed
