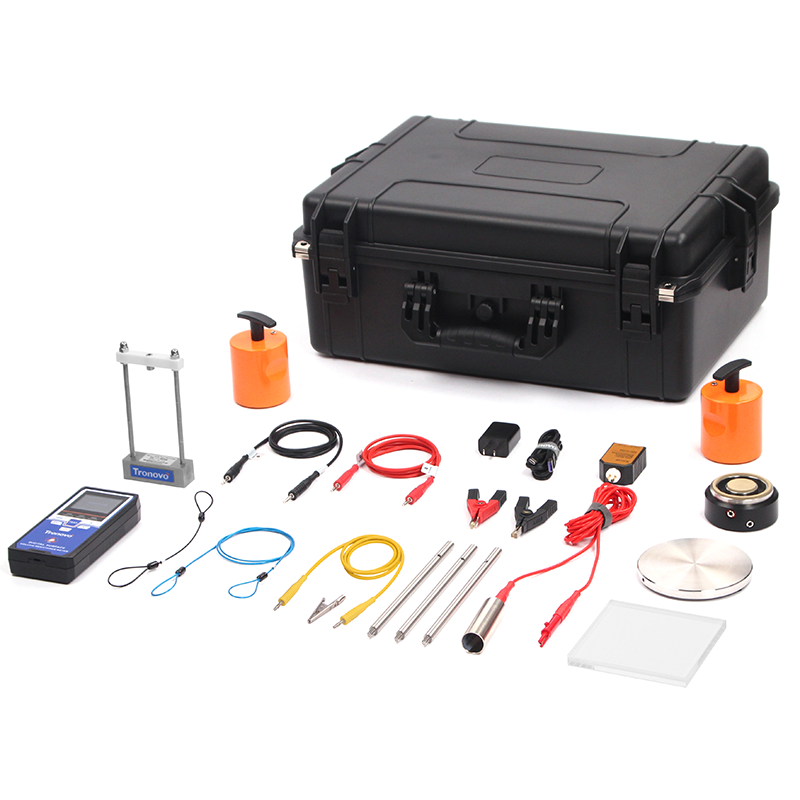

MR63Pro Packaging Engineer Test Kit
MR63Pro Packaging Engineer Test Kit

MR63Pro Packaging Engineer Test Kit

0
Electrostatic Discharge Control Program
>ANSI/ESD S20.20-2021
ESD Control Item Compliance Verification
>ANSI/ESD TR53
Surface Resistance Measurement of Planar Materials
>ANSIESD STM11.11
Volume Resistance Measurement of Planar Materials
>ANSI ESD STM11.12
Resistance Measurement of Working Surfaces
>ANSISTM4.1
Two-Point Resistance Measurement
> ANSI ESD STM11.13
Resistance Measurement of Floor-Footwear-Personnel Combination Systems
> ANSI ESD STM97.1.
Performance
❯ TFT Display
❯ Temp/RH measure
❯ Built-in Li-Battery
❯ 10³ to 10¹² ohms
❯ PASS/FAIL
❯ Data storage
Key Features
❯ High Definition Display
❯ Measurement Range
❯ Temp/RH measure
❯ ESD Quick Determination
❯ Rechargeable Design
❯ Support data export
Downloads
❯ MR63-Tronovo Digital Surface Volume Resistivity Meter
❯ Tronovo-RESISTANCE METERS SELECTION CUIDE-

You may also be interested in these products

Product Parameter

  • Model
  • MR63
  • Range
  • 1.0x10³ ~ 1.0 x10¹²
  • Accuracy
  • ±10%、±20%(>1.0x10¹¹)
  • Displayed
  • TFT color screen
  • Test Voltage
  • 10V/100V ±5%(AUTO)
  • Test Mode
  • AUTO, CONT, OFF, Set time: 5~120s
  • ESDIndicator
  • ✔
  • Voice
  • ✔
  • Temp & H Test
  • ✔
  • Display
  • ✔
  • Language
  • Chinese/English
  • Battery
  • 2X3.7V Li-ion battery
  • Standby
  • 240 hours
  • Interface
  • TYPE C
  • Environment
  • Temp: 0 to 50°c Humidity: 35 to 80%RH
  • Weight
  • 350g
  • Warranty
  • One-year

Product Details

89

New TFT large screen displays

Displays resistance tail and index, temperature, relative temperature, and analogue pointer display function. Since humidity and temperature affect the electrical properties of the material being tested. Low temperature and humidity will increase the resistance value and slow down the dissipation time. Under high humidity conditions, a thin layer of water will condense on the surface of the object to be tested or be absorbed by it, and this hygroscopicity increases the electrical conductivity of the material, and this is especially true for materials that are highly water-absorbent.

MR63 Digital Surface Volume Resistivity Meter

The MR63 is a comprehensive anti-static measuring instrument for checking surface and ground resistance, measuring the impedance or resistance of all conductive, antistatic, and electrostatic venting surfaces, as well as the relative humidity and temperature that affect electrical properties.

IMG_0581

New data logging and exporting - in a flash drive!

Store and recall up to 99 measurements and support connection to a PC for exporting test data.

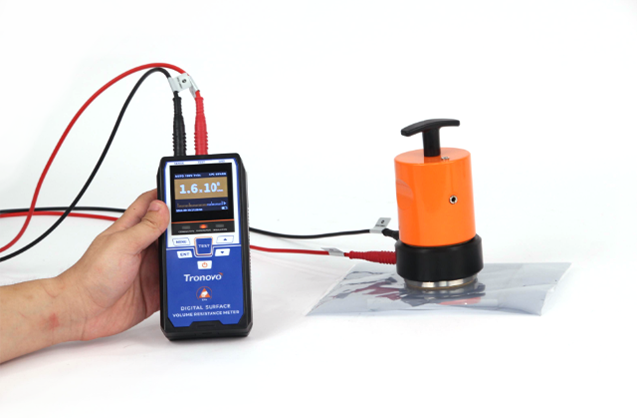

Surface resistance compliance verification

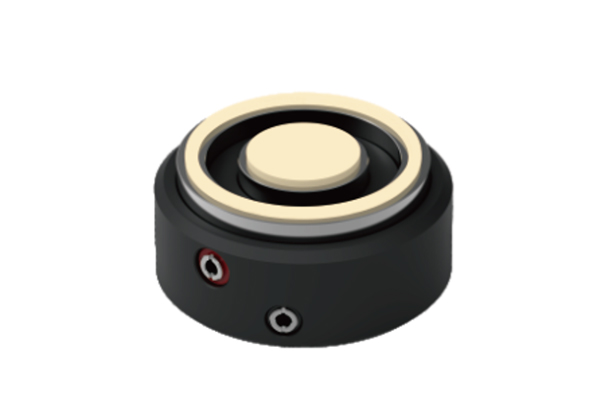

Connect one end of the first test lead to the negative (-) terminal of the MR63 Surface Resistance Measuring Instrument and the other end to the inner electrode of the Concentric Ring Electrode Assembly.

One end of the second test lead is connected to the positive (+) terminal of the MR63 Surface Resistance Measuring Instrument, and the other end is connected to the outer electrode of the Concentric Ring Electrode Assembly.

4
5

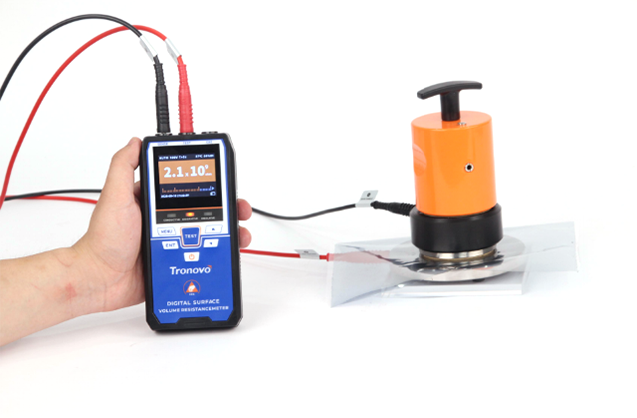

View Display Test Conclusion

One end of the first test lead is connected to the negative (-) terminal of the MR63 surface resistance meter and the other end is connected to the inner electrode of the concentric ring electrode assembly.

One end of the second test lead is connected to the positive (+) terminal of the MR63 surface resistance meter and the other end is connected to the outer electrode of the concentric ring electrode assembly.

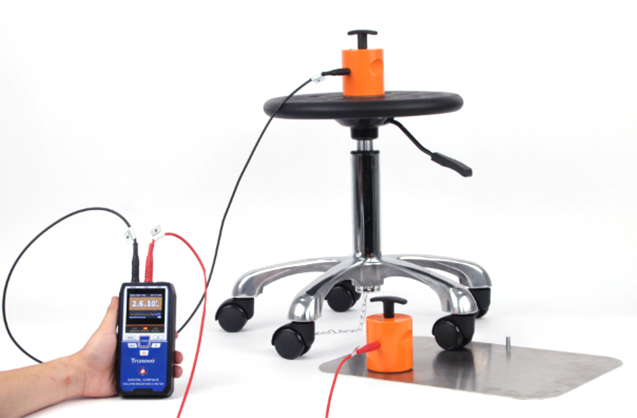

Seats - Verification of Conformity

Place one leg of the anti-static chair on the metal plate.

Connect one end of the black test lead to the negative terminal (-) of the MR63 Surface Resistance Measuring Instrument, and connect the other end of the test lead to the resistance measurement electrode

Connect one end of the red test lead to the positive terminal (+) of the MR63 Surface Resistance Meter, and connect the other end of the test lead to the resistance measurement electrode.

6
7

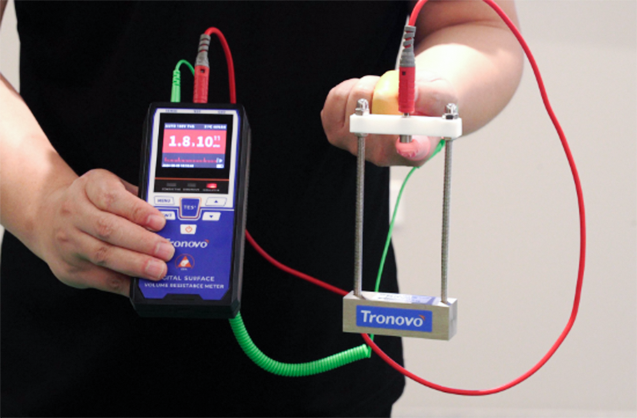

Finger Caps - Verification of Conformity

Strap to the hand that is wearing the finger cuff. Connect the wrist strap cable without 1MΩ resistance to one of the inputs of the MR63 Surface Resistance Tester. Make sure the wrist strap is well connected to the skin.

Connect the CAFE to the other input of the MR63 Surface Resistance Tester. 4. Put on the gloves and wait at least 15 seconds to begin the electrical test.

Balance the CAFE on the fingerprint side of the finger of the selected thumb or gloved hand.
