New TFT large screen displaysDisplays resistance tail and index, temperature, relative temperature, and analogue pointer display function. Since humidity and temperature affect the electrical properties of the material being tested. Low temperature and humidity will increase the resistance value and slow down the dissipation time. Under high humidity conditions, a thin layer of water will condense on the surface of the object to be tested or be absorbed by it, and this hygroscopicity increases the electrical conductivity of the material, and this is especially true for materials that are highly water-absorbent. |

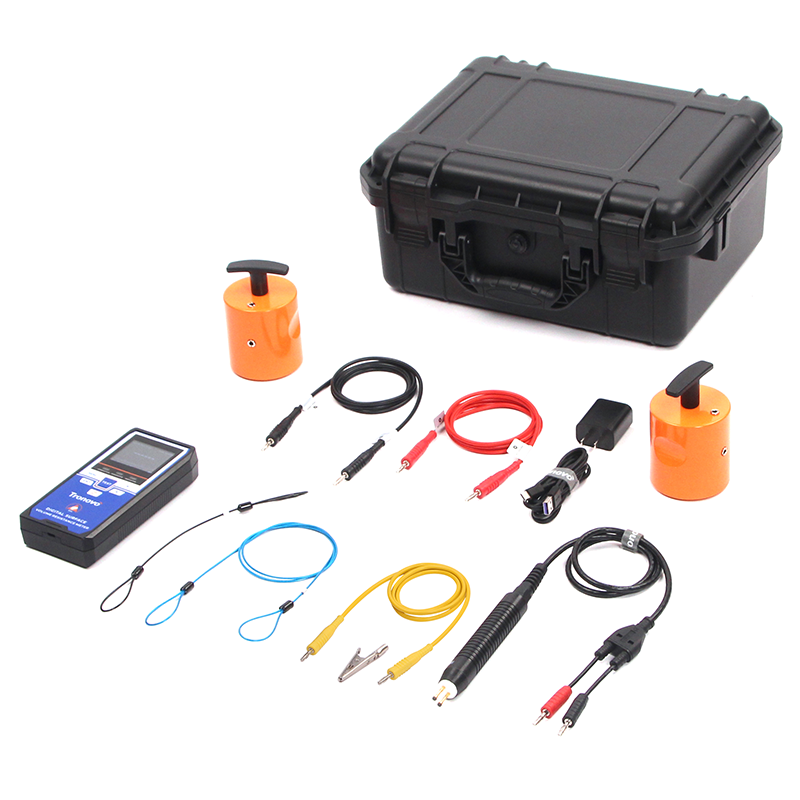

MR63 Digital Surface Volume Resistivity MeterThe MR63 is a comprehensive anti-static measuring instrument for checking surface and ground resistance, measuring the impedance or resistance of all conductive, antistatic, and electrostatic venting surfaces, as well as the relative humidity and temperature that affect electrical properties. |
 |
 |
New data logging and exporting - in a flash drive!Store and recall up to 99 measurements and support connection to a PC for exporting test data. |

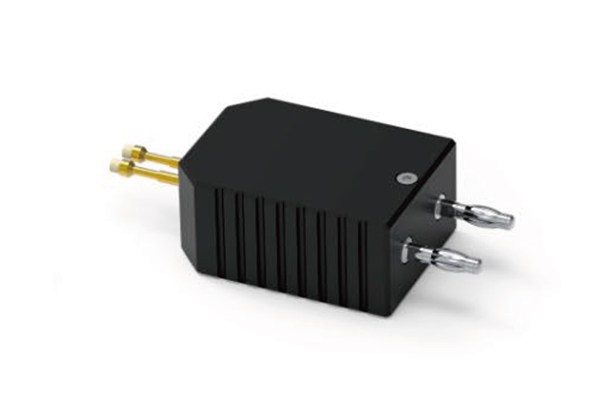

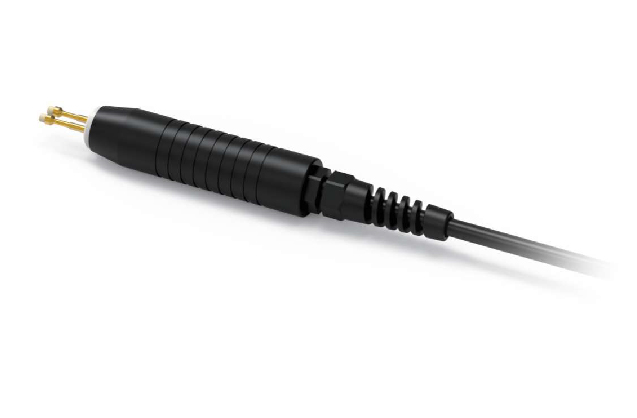

TM-2PS 2-Point Pen Probe AssemblyFor measuring point-to-point resistance over small areas For measuring materials with irregular surfaces Pen design, gold plated telescopic probe Meets the requirements of TR53 and ANSI/ESDS20.20 Meets the requirements of ANSI/ESD STM11.13 |
 |
 |

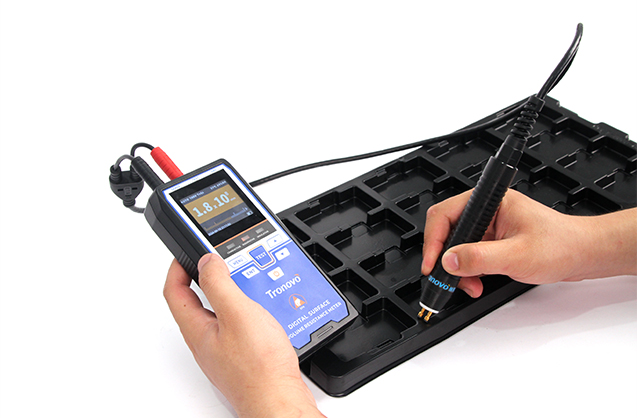

Anti-static pallet point-to-point resistance measurementConnect one end of the first test lead to the negative terminal (-) of the MR63 Surface Resistance Measuring Instrument and the other end to the negative terminal (-) of the two-point probe assembly. One end of the second test lead is connected to the positive terminal (+) of the MR63 surface resistance meter and the other end is connected to the positive terminal (+) of the two-point probe assembly. |

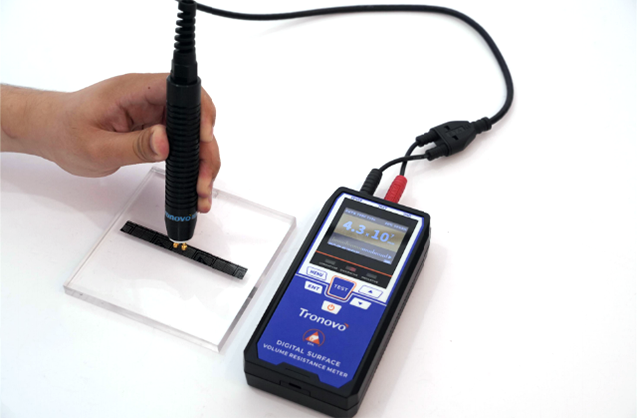

Antistatic Tape - Verification of ConformityConnect one end of the first test lead to the negative terminal (-) of the MR63 Surface Resistance Measuring Instrument and the other end to the negative terminal (-) of the two-point probe assembly. One end of the second test lead is connected to the positive terminal (+) of the MR63 surface resistance meter and the other end is connected to the positive terminal (+) of the two-point probe assembly. |
 |
 |

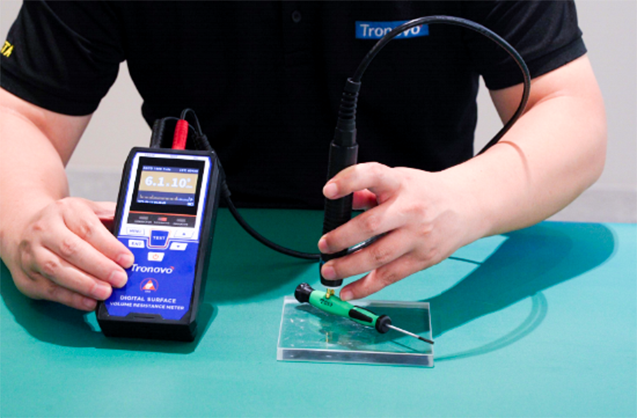

Antistatic Screwdriver - Verification of ConformityConnect one end of the first test lead to the negative terminal (-) of the MR63 Surface Resistance Measuring Instrument and the other end to the negative terminal (-) of the two-point probe assembly. One end of the second test lead is connected to the positive terminal (+) of the MR63 surface resistance meter and the other end is connected to the positive terminal (+) of the two-point probe assembly. |

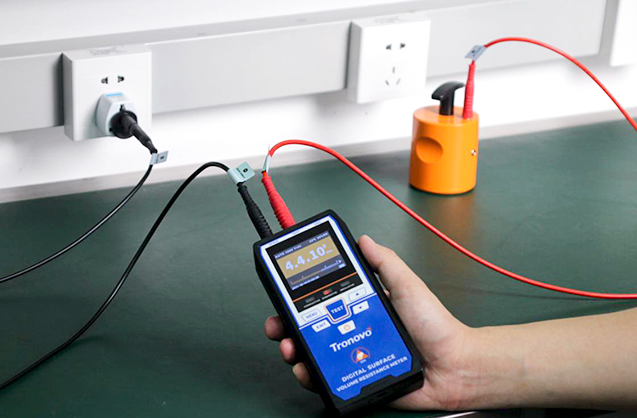

Work Surfaces - Verification of ConformityConnect one end of the first test lead to the negative terminal (-) of the MR63 Surface Resistance Tester and the other end to a previously verified ESD ground/connection reference point. One end of the second test lead is connected to the positive terminal (+) of the MR63 Surface Resistance Tester and the other end is connected to the resistance measurement electrode. Place the resistance measurement electrode on the bench surface to be verified. |
 |
