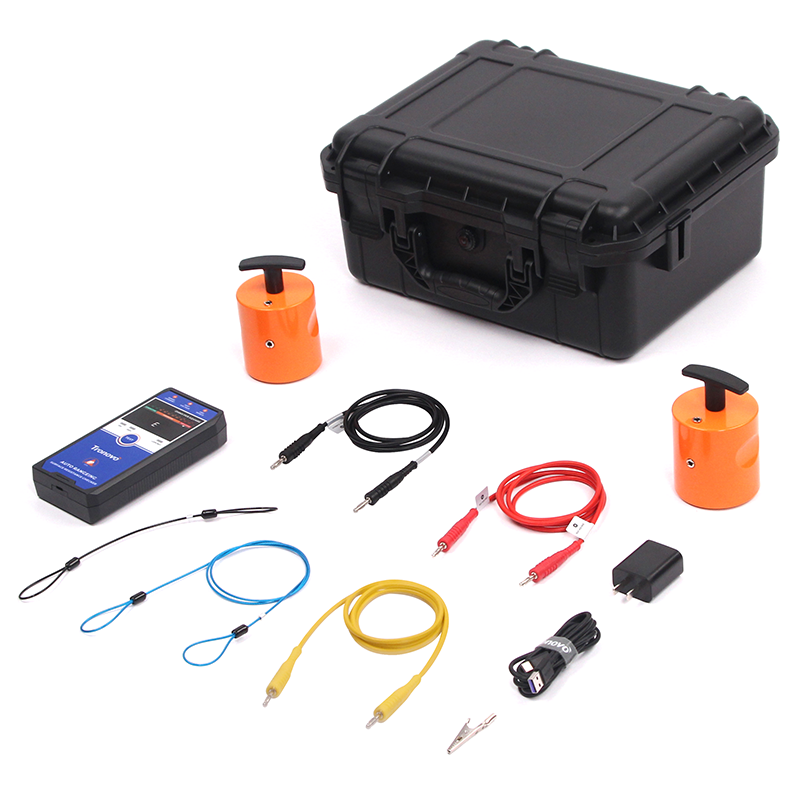

MR63RE Anti-static Economy Test Kit
MR63RE Anti-static Economy Test Kit

MR63RE Anti-static Economy Test Kit

0
It can meet the basic testing needs of internal quality control in electronic enterprises.
Test materials surface resistance
Work Surfaces, floors point-to-point resistance
Clothes, carts, shelves Point-to-ground resistance
Performance
❯ TFT Display
❯ Temp/RH measure
❯ Built-in Li-Battery
❯ 10³ to 10¹² ohms
❯ PASS/FAIL
❯ Data storage
Key Features
❯ High Definition Display
❯ Measurement Range
❯ Temp/RH measure
❯ ESD Quick Determination
❯ Rechargeable Design
❯ Support data export
Downloads
❯ MR63-Tronovo Digital Surface Volume Resistivity Meter
❯ Tronovo-RESISTANCE METERS SELECTION CUIDE-

You may also be interested in these products

Product Parameter

  • Model
  • MR63
  • Range
  • 1.0x10³ ~ 1.0 x10¹²
  • Accuracy
  • ±10%、±20%(>1.0x10¹¹)
  • Displayed
  • TFT color screen
  • Test Voltage
  • 10V/100V ±5%(AUTO)
  • Test Mode
  • AUTO, CONT, OFF, Set time: 5~120s
  • ESDIndicator
  • ✔
  • Voice
  • ✔
  • Temp & H Test
  • ✔
  • Display
  • ✔
  • Language
  • Chinese/English
  • Battery
  • 2X3.7V Li-ion battery
  • Standby
  • 240 hours
  • Interface
  • TYPE C
  • Environment
  • Temp: 0 to 50°c Humidity: 35 to 80%RH
  • Weight
  • 350g
  • Warranty
  • One-year

Product Details

89

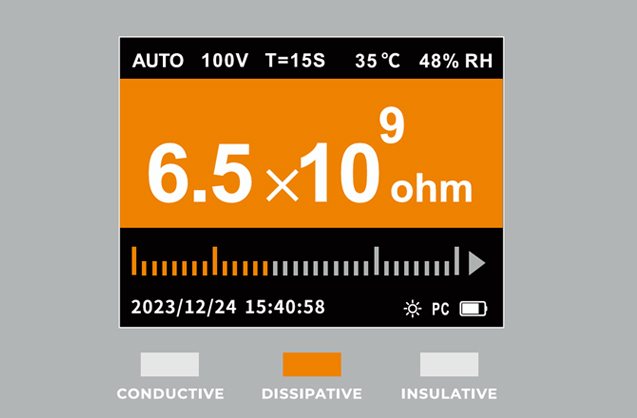

New TFT large screen displays

Displays resistance tail and index, temperature, relative temperature, and analogue pointer display function. Since humidity and temperature affect the electrical properties of the material being tested. Low temperature and humidity will increase the resistance value and slow down the dissipation time. Under high humidity conditions, a thin layer of water will condense on the surface of the object to be tested or be absorbed by it, and this hygroscopicity increases the electrical conductivity of the material, and this is especially true for materials that are highly water-absorbent.

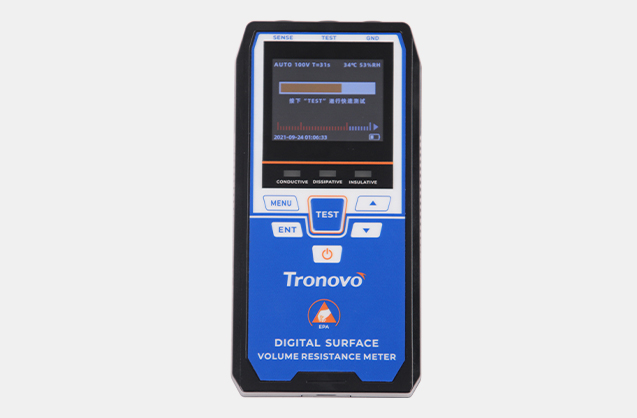

MR63 Digital Surface Volume Resistivity Meter

The MR63 is a comprehensive anti-static measuring instrument for checking surface and ground resistance, measuring the impedance or resistance of all conductive, antistatic, and electrostatic venting surfaces, as well as the relative humidity and temperature that affect electrical properties.

IMG_0581

New data logging and exporting - in a flash drive!

Store and recall up to 99 measurements and support connection to a PC for exporting test data.

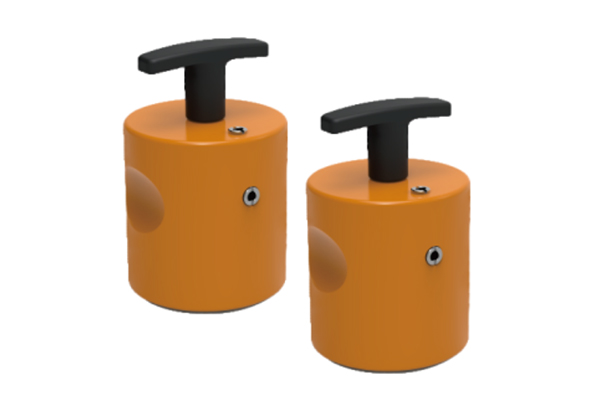

TM-RM2 Cylindrical Electrode Assembly

Used to measure floor, table mat, clothing, chair resistance Used for point-to-point and point-to-ground resistance testing

Meets the requirements of TR53 and ANSI/ESDS 20.20 Meets the requirements of ANSI/ESD STM2.1

Meets the requirements of ANSI/ESD STM4.1

Meets the requirements of ANSI/ESD STM7.1

Complies with ANSI/ESD STM12.1 Complies with IEC61340-5-1

TM-RM2
1

TM-CS10

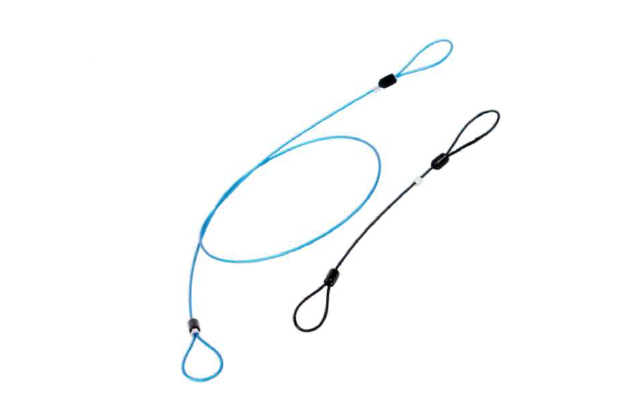

TM-CS36 CABLE SPACERS

36 &10 inch length cable spacerswith insulated end,includes2different lengths(36 and 10inches)convenient for measuringpoint-to-point,idea for use with TM-RM2 5-lb conductive rubberelectrodes

Point-to-point resistance measurement of table surface

Connect the leads of the MR63 to the resistance measuring electrode.

Place the resistance measurement electrode on the surface of the tabletop system under test and mark the distance between the two weights with a 10-inch test lead.

Set the MR63 test time to 15 seconds, press the TEST button, wait for the countdown to end, and record the resistance value.

61e3f4046e6231c

Flooring - Point to Point Resistance Compliance Verification

Connect the leads of the MR63 to the resistance measurement electrode.

Place the resistance measuring electrode on the surface of the floor system under test and mark the distance between the two weights with a 36-inch test line.

Set the MR63 test time to 15 seconds, press the TEST button, wait for the countdown to end, and record the resistance value.

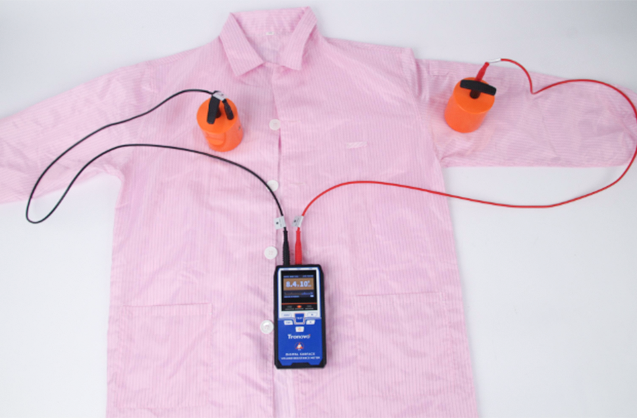

Antistatic Clothing - Point-to-Point Resistance Compliance Verification

Connect one end of the first test lead to the negative (-) terminal of the MR63 Surface Resistance Measuring Instrument and connect the other end of the test lead to the resistance measurement electrode.

Connect one end of the second test lead to the positive (+) terminal of the MR63 Surface Resistance Measuring Instrument and connect the other end of the test lead to the resistance measurement electrode.

Set the MR63 test time to 15 seconds, press the TEST button, wait for the countdown to end, and record the resistance value.
