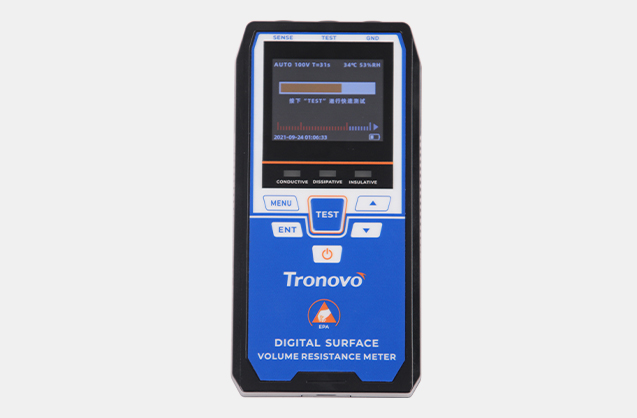

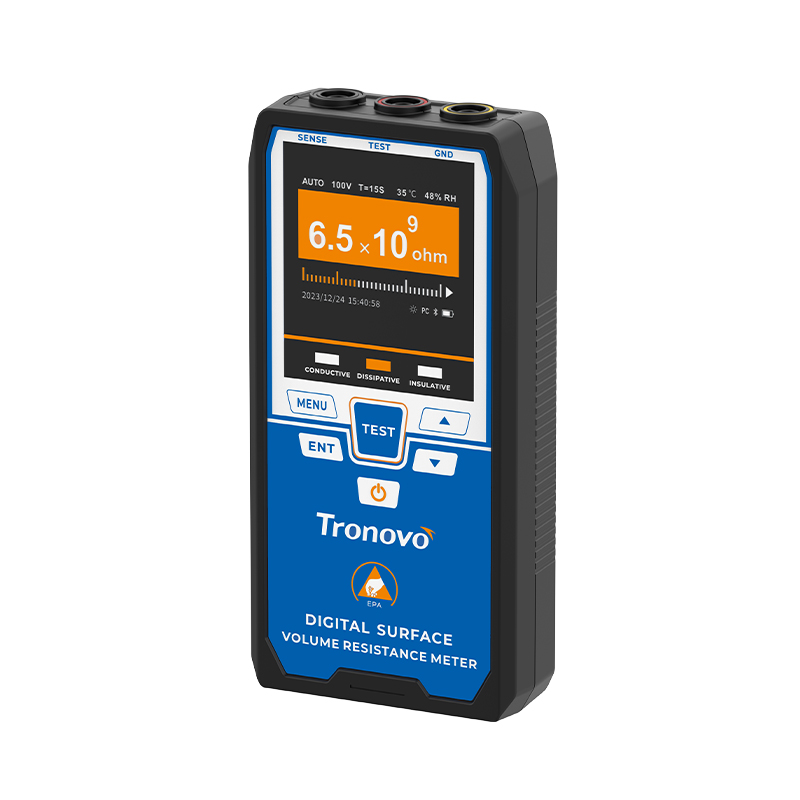

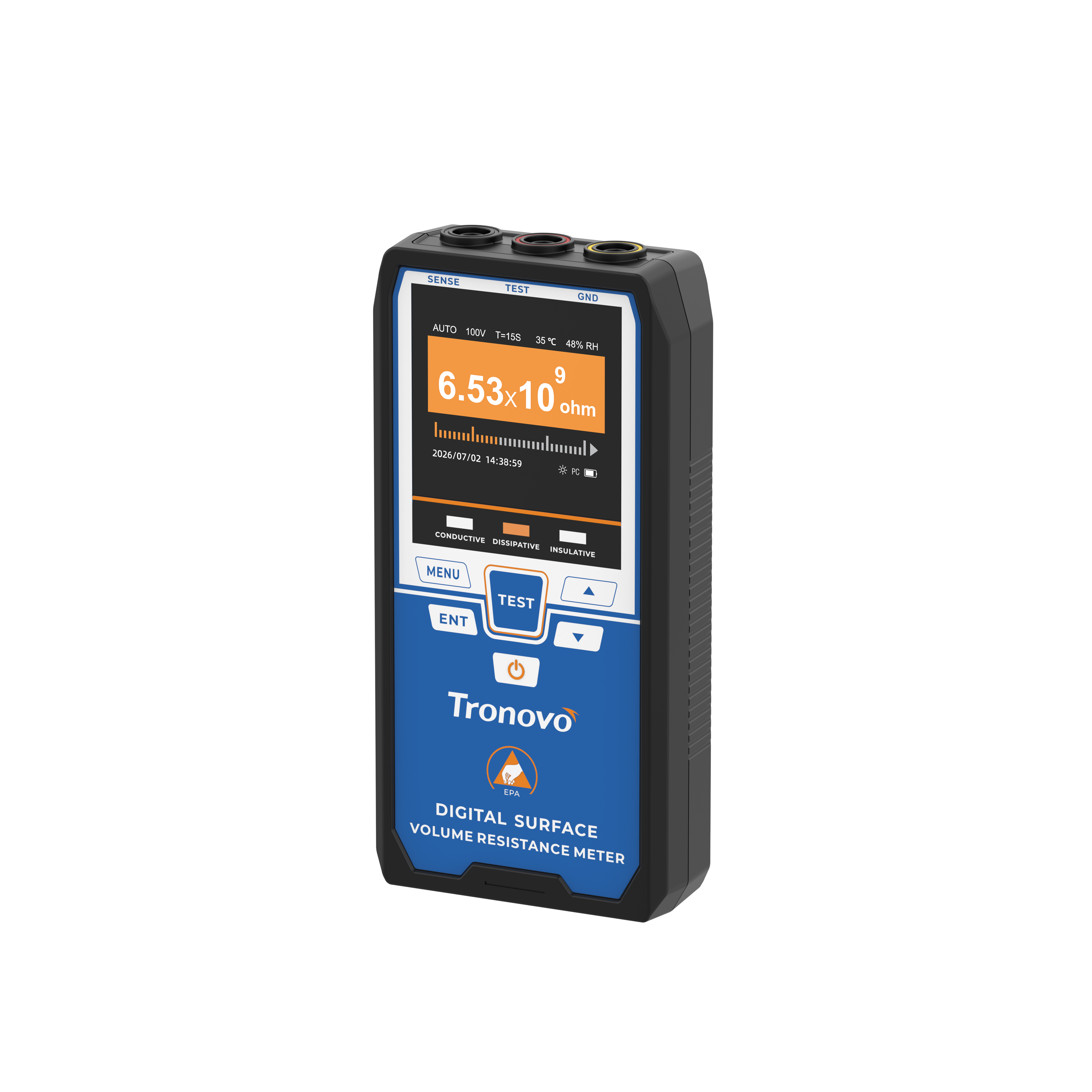

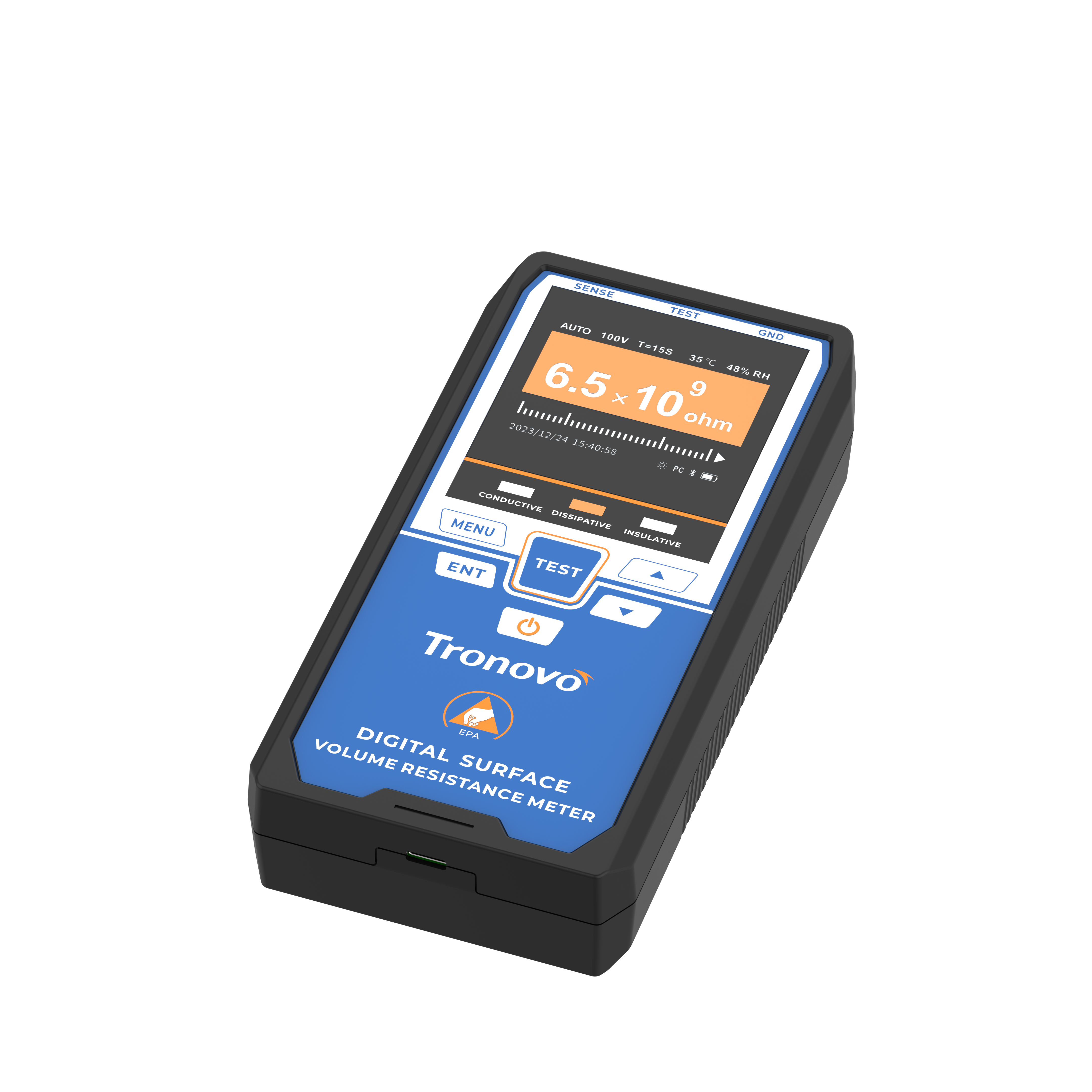

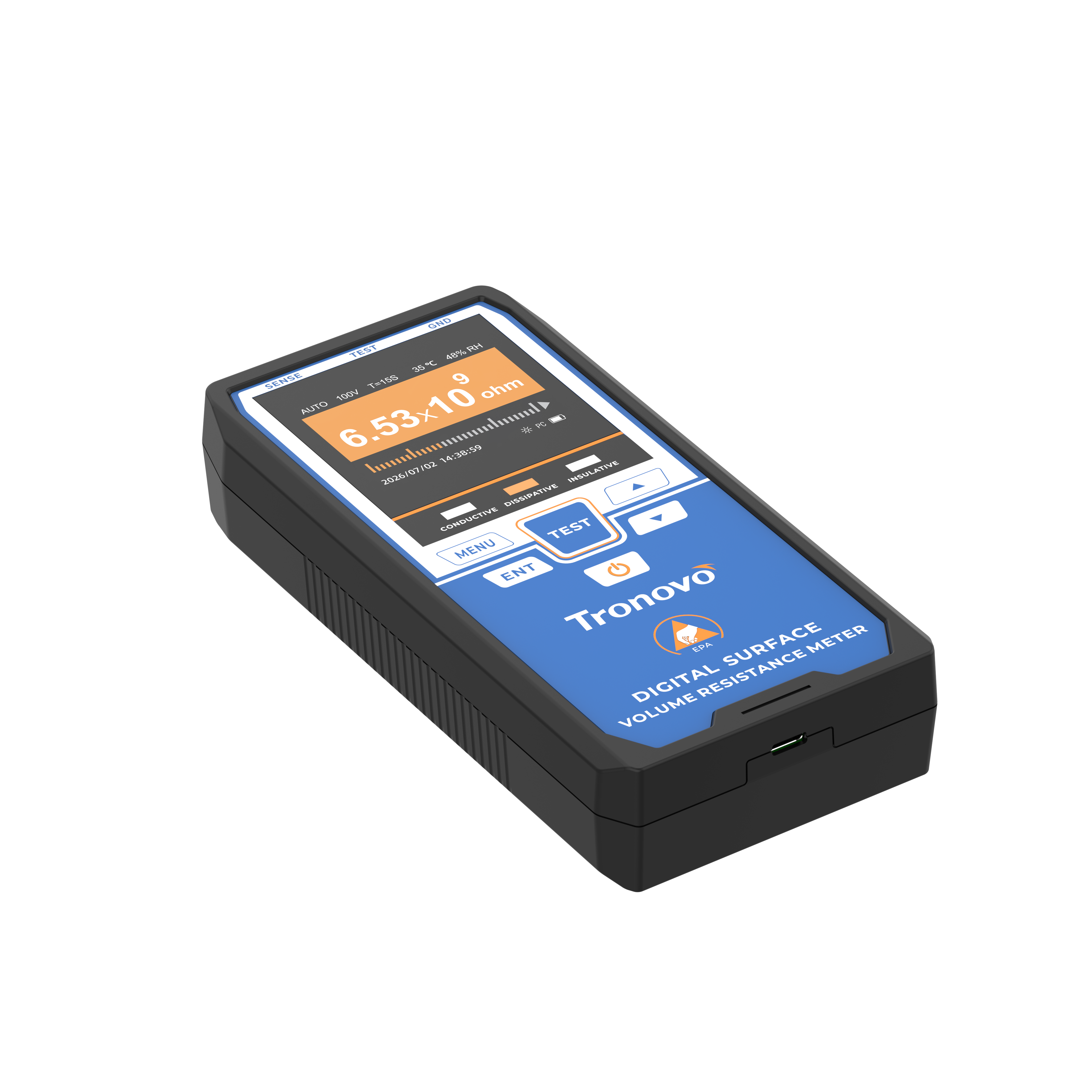

MR63 Digital Surface Volume Resistivity Meter
MR63 Digital Surface Volume Resistivity Meter

MR63 Digital Surface Volume Resistivity Meter

The MR63 is a comprehensive anti-static measuring instrument for checking surface and ground resistance, measuring the impedance or resistance of all conductive, antistatic, and electrostatic venting surfaces, as well as the relative humidity and temperature that affect electrical properties. Designed according to the international standard "EOS/ESD, CECC, ASTM and UL" test procedures, it can be used for material testing of all consumables and supplies required for production lines, such as different table mats, floor coating layers, lacquer surfaces, plates, wrist straps, ankle straps, anti-static overalls, shoes (shoe covers), various PE bags and containers of different specifications
Performance
❯ Easy-to-read color TFT display
❯ The indicator provides a visual indication of dissipation,conductivity,or insulation
❯ Meets the general specifications for anti-static detection
❯ This is important for resistance measurement results
❯ The resistance range and test voltage are automatically selected for you
❯ Increase test productivity

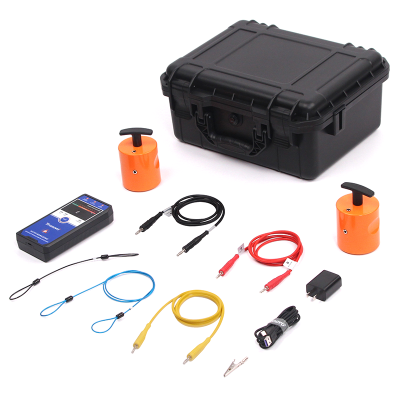

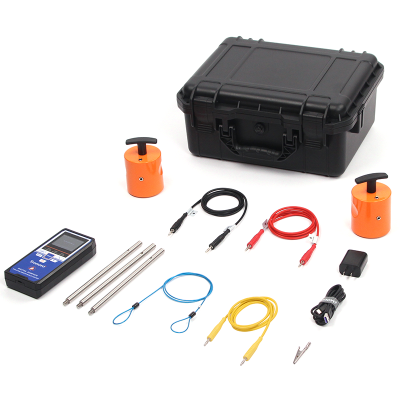

❯ Built-in parallel resistivity probe for use with 5lb weight, two-point probe, or concentric ring probe
Key Features
❯ Digital display
❯ ESD fast determination
❯ Complies ANSI/ESD S20.20 andlEC61340-5-1
❯ Measure temperature and humidity
❯ Fully automated measurements
❯ Voice broadcast

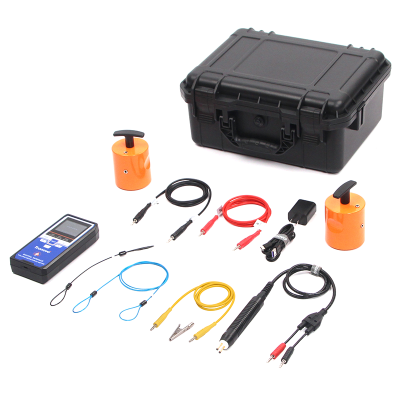

❯ Abundant probes (optional)
Downloads
❯ MR63-Tronovo Digital Surface Volume Resistivity Meter

You may also be interested in these products

Product Parameter

  • Model
  • MR63
  • Range
  • 1.0x10³ ~ 1.0 x10¹²
  • Accuracy
  • ±10%、±20%(≥1.0x10¹¹)
  • Displayed
  • TFT color screen
  • Test Voltage
  • 10V/100V ±5%(AUTO)
  • Test Mode
  • AUTO, CONT, OFF, Set time: 5~120S
  • ESD Indicator
  • ✔
  • Voice
  • ✔
  • Temp & H Test
  • ✔
  • Display
  • ✔
  • Language
  • Chinese/English
  • Battery
  • 2x3.7V Li-ion battery
  • Standby
  • 240 hours
  • Interface
  • TYPE C
  • Environment
  • Temp: 0 to 50°c Humidity: 35 to 80%RH
  • Weight
  • 350g
  • Warranty
  • One-year

Product Details

86

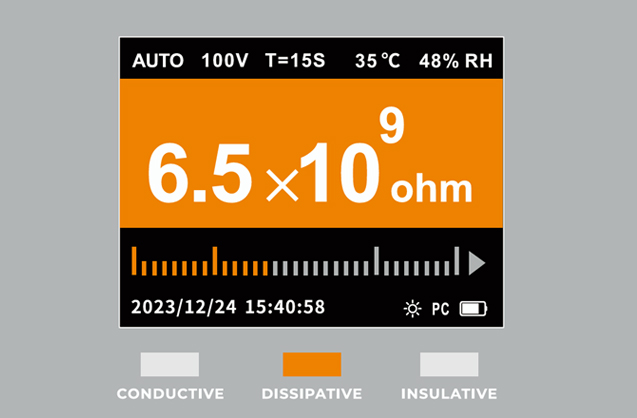

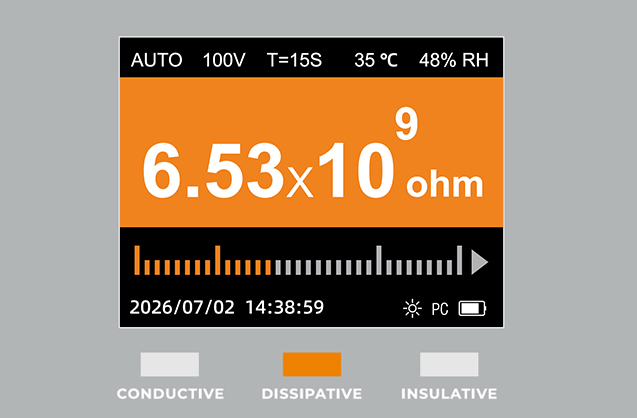

New TFT large screen displays

Displays resistance tail and index, temperature, relative temperature, and analogue pointer display function. Since humidity and temperature affect the electrical properties of the material being tested. Low temperature and humidity will increase the resistance value and slow down the dissipation time. Under high humidity conditions, a thin layer of water will condense on the surface of the object to be tested or be absorbed by it, and this hygroscopicity increases the electrical conductivity of the material, and this is especially true for materials that are highly water-absorbent.

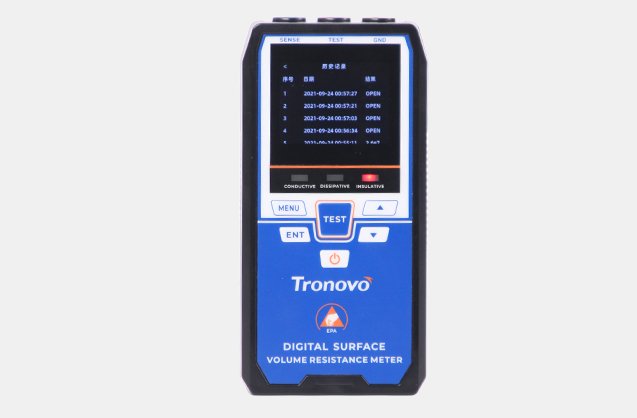

New data logging and exporting - in a flash drive!

Up to 99 measurements can be stored and recalled, and connection to a PC is supported for exporting test data.

87
88

New measurement stability mode

A 15-second electrification cycle is set for test requirements and three different modes of measurement are supported.

Automatic switching of test voltage (10V or 100V ±5%)

According to ESDA standards STM 4.1 and S7.1, a voltage of 10 V must be selected when the surface resistance of the conductor is less than 106; greater than or equal to106When,Select the voltage of 100V, the instrument has a built-in transformer which can convert the battery voltage to 10V or 100V, the instrument can test with 10V or 100V and adjust automatically according to the test material.

89
90

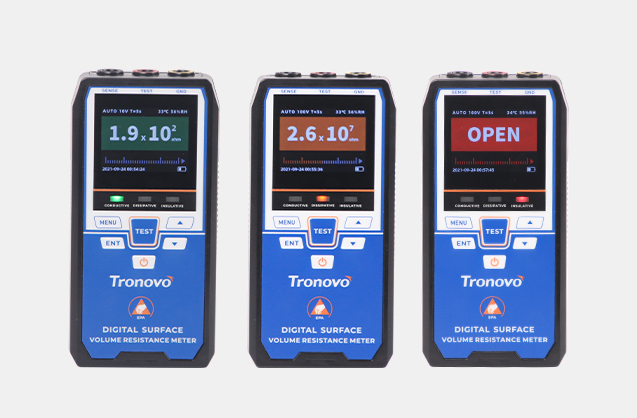

View Display Test Conclusion

The material type can be visually indicated by judging the lamp and screen colour.
C ONDUCTIVE conductive material, reference range:＜1.0×105Ω
DISSIPATIVE  Dissipative material reference range:1.0×106~1.0×1011Ω
INSULATIVE  Insulating materials Reference range:>1.0×1011Ω

voice announcement function

Increase productivity and reduce user reliance on screens or numbers.
Feedback of measurement results through sound provides the user with a more intuitive and convenient operating experience. This type of interaction not only reduces the visual burden on the user, but the user can more easily hear the measurement results without having to struggle to see the numbers on the screen.

91
