DN532 Rotate  Cleaning  Ring Ionizer
DN532 Rotate  Cleaning  Ring Ionizer

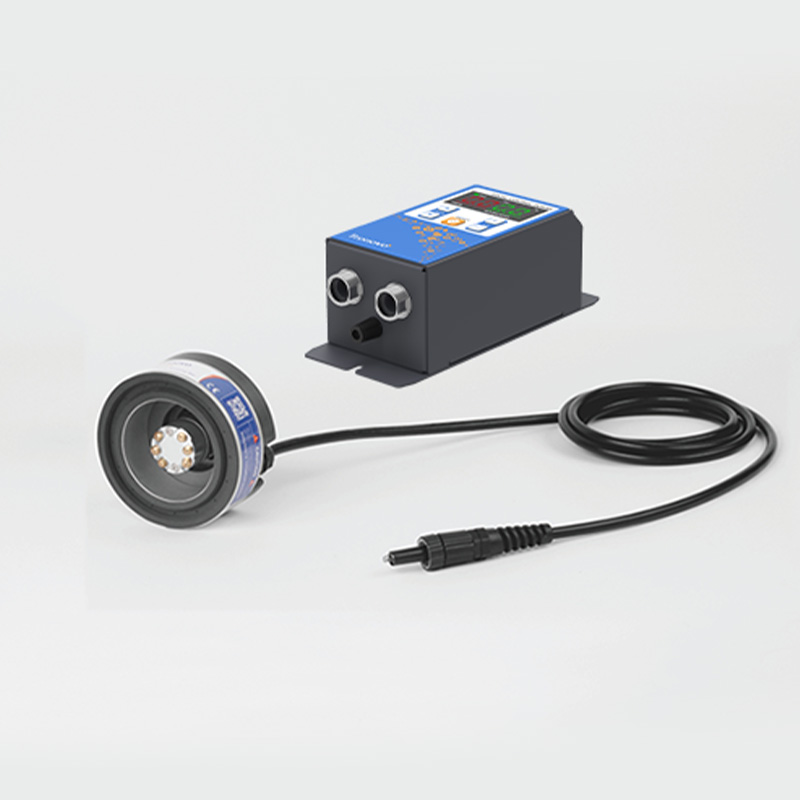

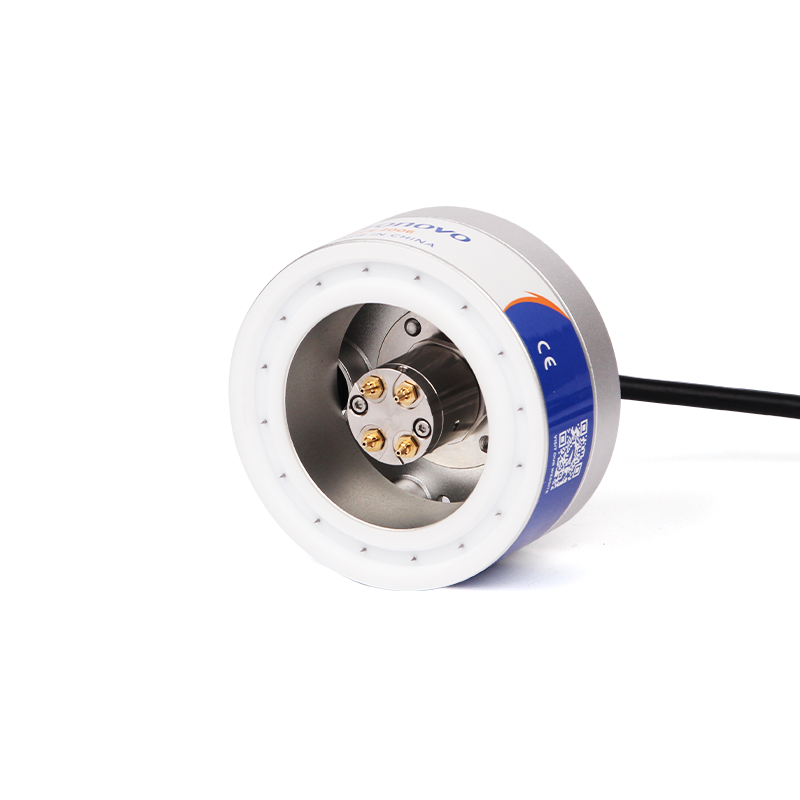

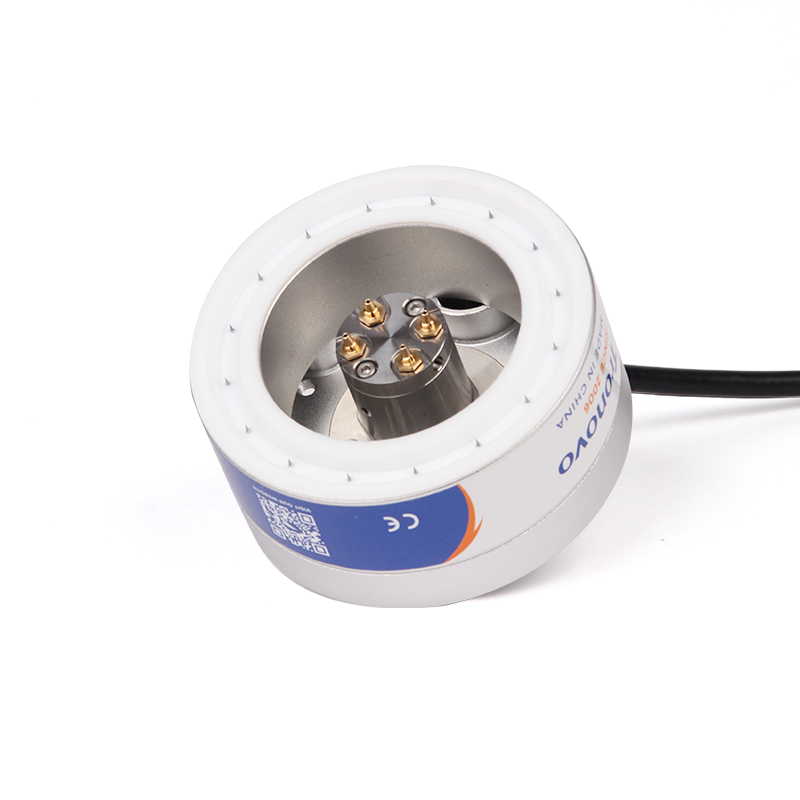

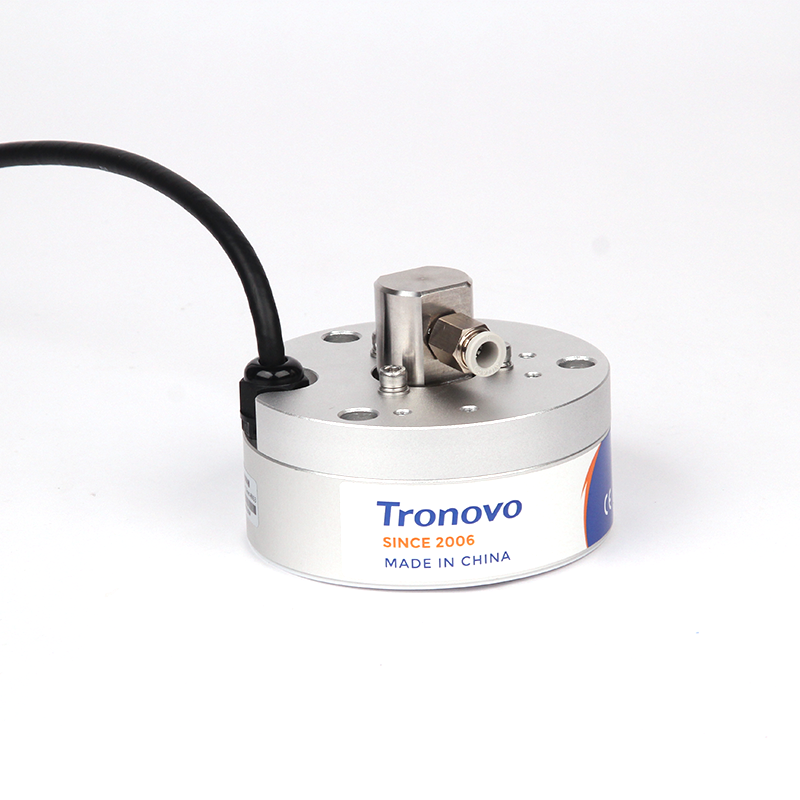

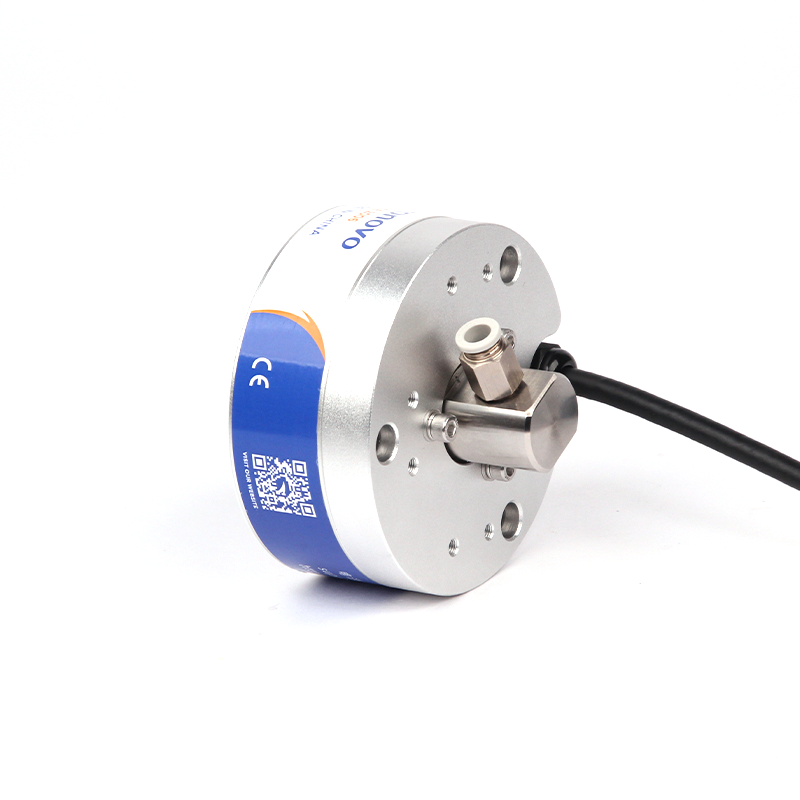

DN532 Rotate Cleaning Ring Ionizer

It consists of a rotating six-head nozzle and a unique circular static eliminator. The compressed air drives the nozzle to rotate at a high speed of up to 60 revolutions per second, and the resulting pulsed ionized air flow sweeps across the product surface up to 240 times per second, blowing dust and impurities off the product surface from different angles, especially for irregular products with complex surface shapes or grooves.
Performance
❯ Contactless 360-degree surface for powerful dust removal
❯ The air pulsates by purging by rotating the cleaning nozzle
❯ Effectively cleans surfaces with complex shapes and gaps
❯ Circular ionizers are used to remove electrostatic charges
❯ It can be used in combination to clean large objects with a large appearance
❯ It can be easily integrated with transmission lines, robot arms,and dust collection systems
Key Features
❯ Innovative cyclone cleaning system
❯ Proprietary performance
❯ Deep cleaning
❯ Static neutralization
❯ Greater coverage
❯ Diverse installation methods
Downloads

You may also be interested in these products

Product Parameter

  • Model
  • DN532
  • Power
  • 10W
  • Coupling
  • Resistive
  • Discharge
  • ≤1.5S (distance 100mm)
  • Balance
  • ≤|±30V|(AVE) * pulse static control power
  • Range
  • 100mm→600mm
  • Disc size
  • 112mm/customizable
  • Air pressure
  • 0.1~0.6Mpa
  • Connect
  • 8mm
  • Emitters
  • Tungsten
  • Cables
  • 2.5m
  • Environment
  • +5°C to +45°c, humidity: 35 to 70%RH
  • Power
  • DP712, TP5301,TP5502,TP5501CA
  • Warranty
  • one year
