DN551 lonizing Air Knives
DN551 lonizing Air Knives

DN551 lonizing Air Knives

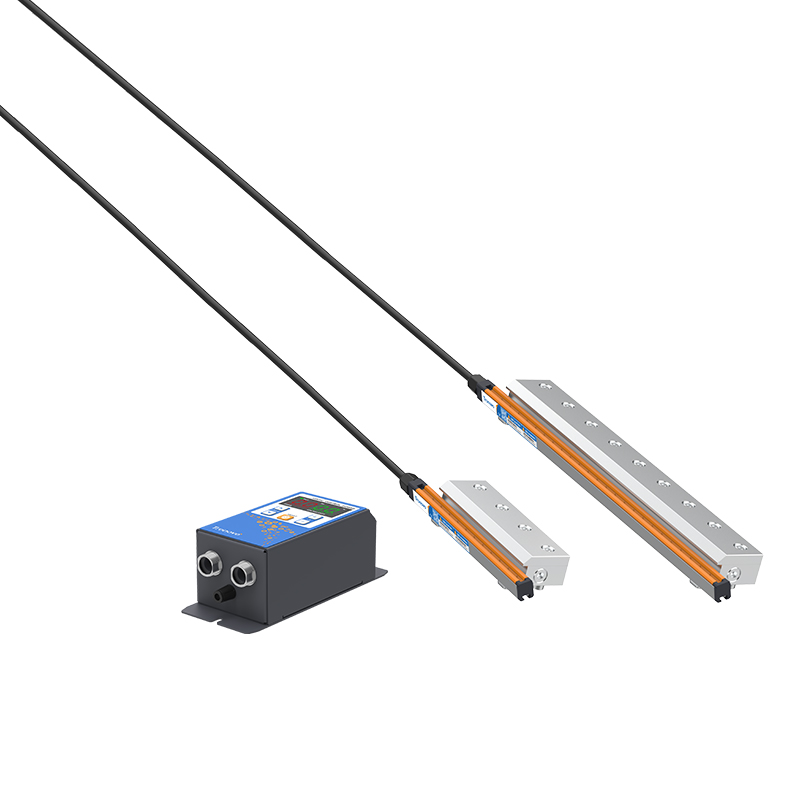

The ionic air jet consists of an ion rod and an air jet. The ion rod produces a large number of ions under high pressure, and a large number of ions are brought to the surface of the object to be eliminated through the thin sheet air curtain blown by the air knife, and the static electricity on the surface of the product is neutralized, and the air curtain can also blow off impurities such as dust on the surface, It has the characteristics of strong wind pressure, low noise, fast electrostatic neutralization speed, long effective action distance and wide range of action, which can significantly improve production efficiency and product quality.
Performance
❯ More ion, faster static velocity
❯ It is especially suitable for dust removal on the surface of workpieces with static electricity
❯ No blind spots, effective cleaning of complex-shaped surfaces
❯ Reliable operation and adaptability to harsh industrial environments
❯ It can be used in combination to clean large objects with a large appearance
❯ It can be easily integrated with transmission lines, robot arms,and dust collection systems
Key Features
❯ Pulsed AC ionization technique
❯ Eliminate static electricity and blow away dust
❯ Curtain-shaped airflow
❯ Extremely low maintenance
❯ Greater coverage
❯ Diverseinstalation methods
Downloads

You may also be interested in these products

Product Parameter

  • Model
  • DN551-150mm DN551-200mm DN551-300mm DN551-400mm DN551-500mm DN551-600mm DN551-700mm DN551-800mm DN551-900mm DN551-950mm
  • Effective
  • 150mm 200mm 300mm 400mm 500mm 600mm 700mm 800mm 900mm 950mm
  • Air/min
  • 0.45m³ 0.62m³ 0.94m³ 1.25m³ 1.57m³ 1.88m³ 2.20m³ 2.51m³ 2.83m³ 2.99m³
  • Input
  • 2x8mm 2x8mm 2x8mm 3x8mm 3x8mm 4x8mm 4x8mm 5x8mm 5x8mm 5x8mm
  • Noises
  • 52dB A / 55dB A / 59dB A / 63dB A / 65dB A / 69dB A / 70dB A / 74dB A / 76dB A / 78dB A
