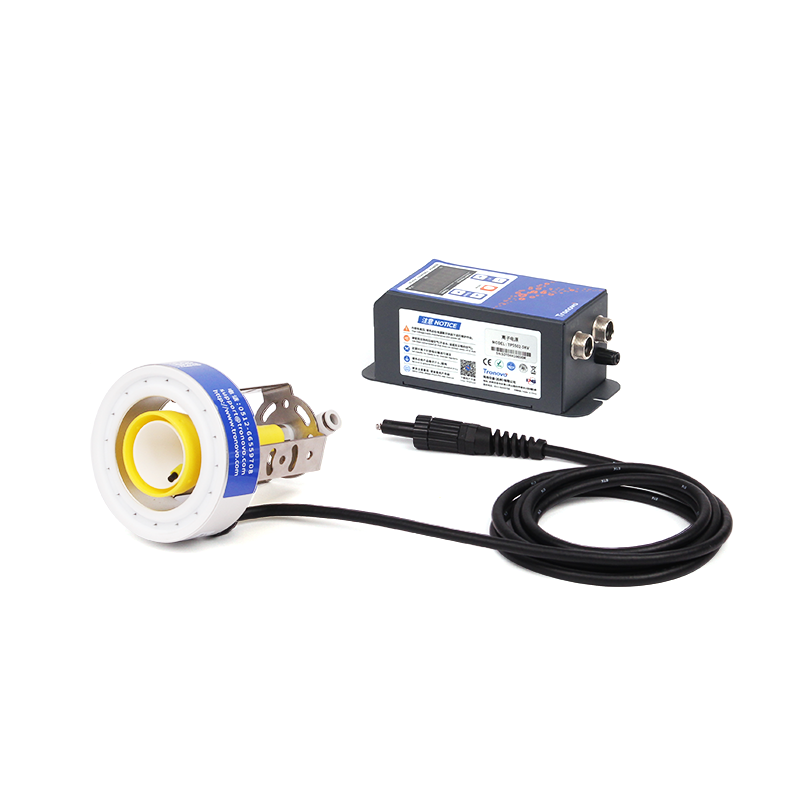

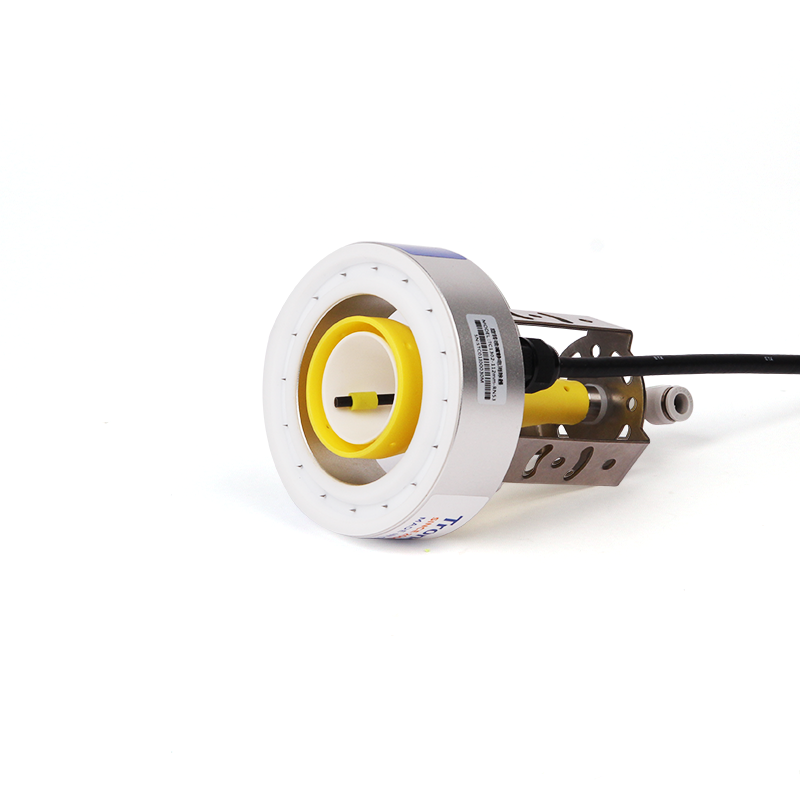

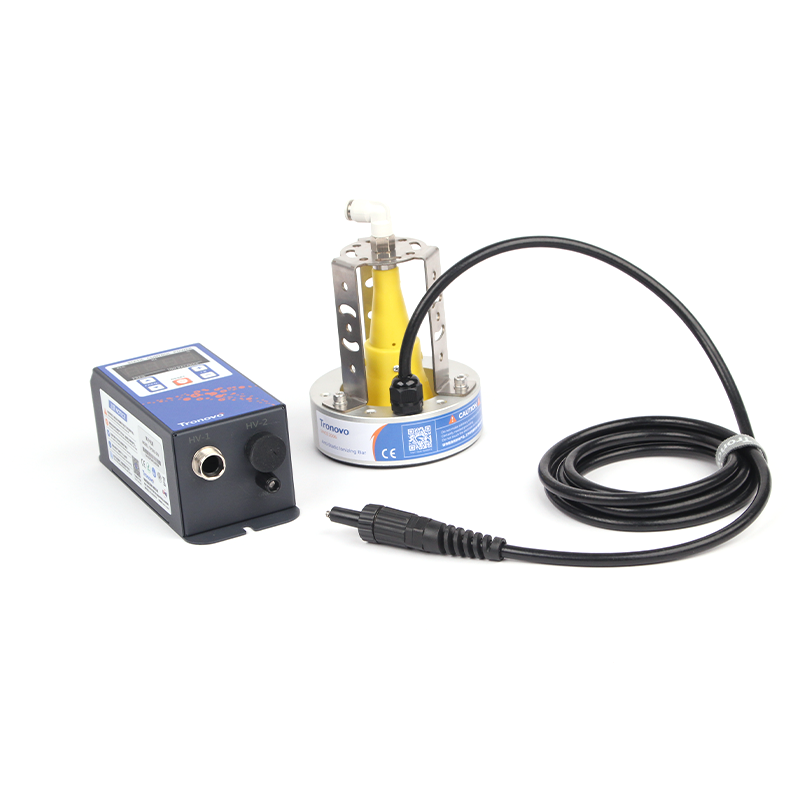

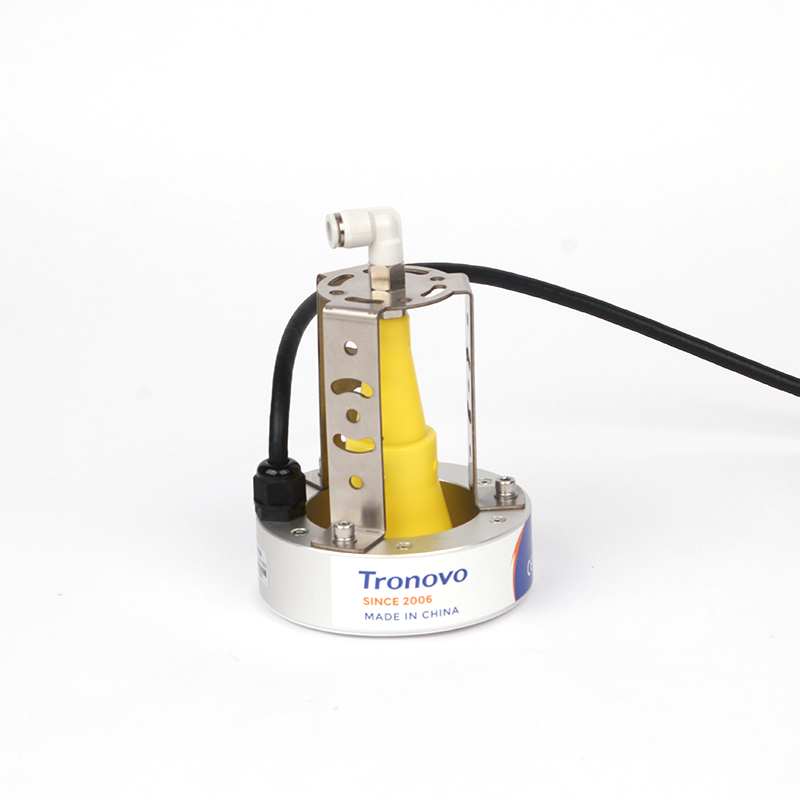

DN532-112-RN40 Shock Wave Nozzle
DN532-112-RN40 Shock Wave Nozzle
DN532-112-RN40 Shock Wave Nozzle
DN532-112-RN40 Shock Wave Nozzle
DN532-112-RN40 Shock Wave Nozzle
DN532-112-RN40 Shock Wave Nozzle
DN532-112-RN40 Shock Wave Nozzle
DN532-112-RN40 Shock Wave Nozzle
DN532-112-RN40 Shock Wave Nozzle
DN532-112-RN40 Shock Wave Nozzle

DN532-112-RN40 Shock Wave Nozzle

0
Designed for the dual needs of industrial dust removal and static control, it combines high-speed rotating shockwave nozzles with AC ionization technology. Driven by dry compressed air, it achieves dynamic airflow diffusion and static neutralization, precisely removing dust and static charges from surfaces. The high-speed rotating nozzle expands the cleaning radius to fit complex curved surfaces and hidden areas. Supports robotic arms and is compatible with 7-axis robots.
Performance
❯ Designed for dust removal and cleaning
❯ Ionizing speed up to 300 m/min
❯ Acting distance up to 600 mm
❯ High purity tungsten needles for long service life
❯ Designed for reassuring safety
❯ Up to 2 ionizing rods connected to 1 power supply
Key Features
❯  Innovative cyclone cleaning system, non-contact 360 degree surface powerful dust removal
❯ Proprietary performance with air pulsation caused by blowing through the rotating cleaning nozzle
❯ Deep cleaning, effective on surfaces with complex shapes and crevices.
❯ Static neutralization, circular ion generator for removing static charges
❯ Greater coverage, can be used in combination to clean large objects with a large form factor.
❯ Versatile mounting options for easy integration into conveyor lines, robot arms, and dust collection systems.
Downloads

You may also be interested in these products

Product Parameter

  • Model
  • DN532-112-RN40
  • Elimination speed
  • ≤1.5 sec@15cm
  • Elimination distance
  • 600mm
  • Coverage area
  • 50mm@30cm
  • Connection tube
  • O.D. ø8
  • Supply air pressure
  • 0.4MPa
  • Air consumption
  • 100NL/min
  • Air flow rate
  • Determined by measurement based on the air pressure, nozzle number and type
  • Ionization control power supply
  • TR8600-ll-5.6KV
  • High-voltage cable
  • 2.5m
  • Operating environment
  • 0 to +55°C (no condensation), 35 to 65% RH
  • Consumables
  • Inner rotor is consumable.

Product Details

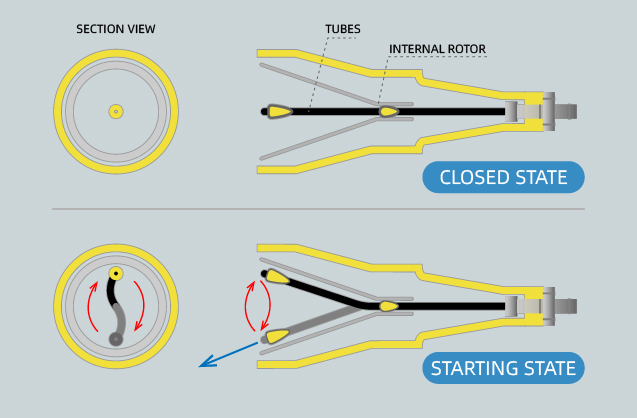

Shockwave Nozzle Static Eliminator Jets

When ejected, the pressure causes the tube to move and begin to rotate along the inner wall of the inner rotor. In this state, the jet sprays intermittently
The wave generated by the rotation of the tube produces an air collision force equal to the number of rotations.
The inner rotor (white cap) is the part that rotates in synchronization with the nozzle tube. As a result, frictional resistance during rotation is reduced. Dust generation and wear are reduced.

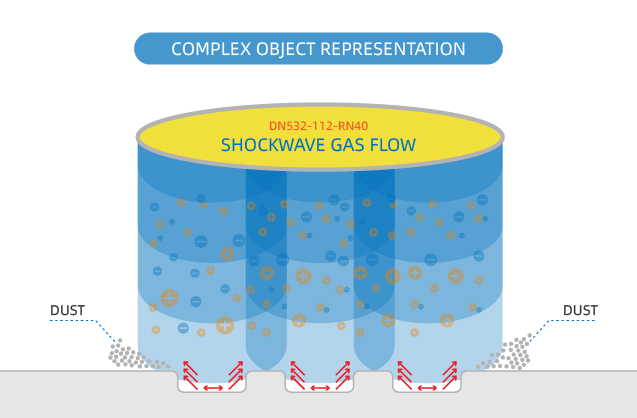

Dedusting method for complex shapes

Since the flow of normal air is constant, it pressurizes the air at the entrance of the groove and does not give good results. The wave motion of the Shockwave Nozzle Static Eliminator does not create a pressure wall at the entrance to the recess, and the air can effectively penetrate deeper into the recess.


Highly efficient dust removal range

When used at the same pressure, shockwave nozzle static eliminators can be treated extensively by the high effect of rotating wave nozzles.

Dust removal performance

Distance vs. Fluctuation Intensity Distance vs. Effective Diameter of Jet
