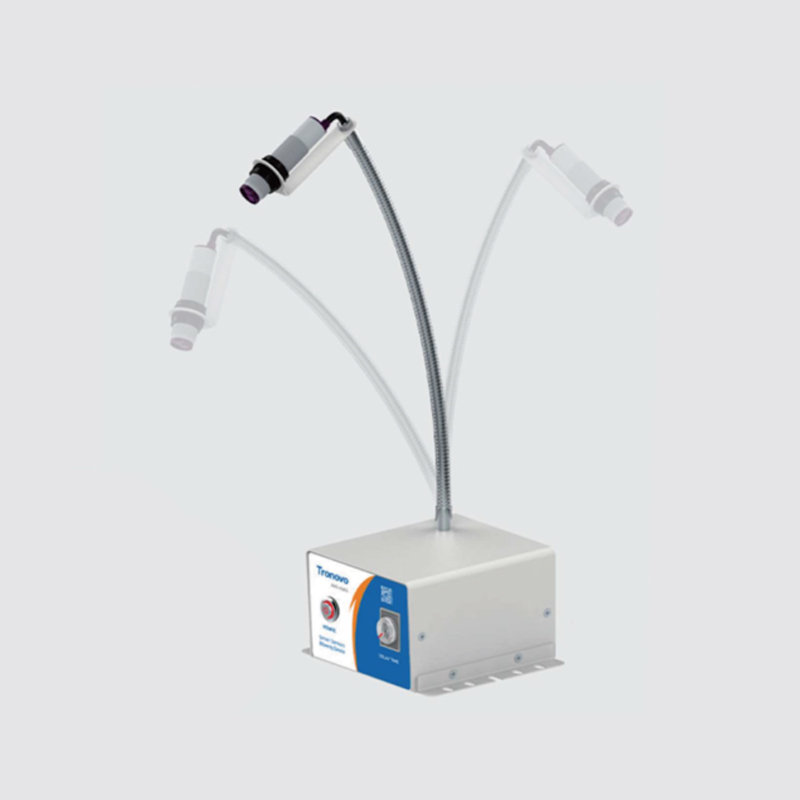

DC71B Intelligent induction blowing device
DC71B Intelligent induction blowing device
DC71B Intelligent induction blowing device
DC71B Intelligent induction blowing device

DC71B Intelligent induction blowing device

In industrial production, the operator needs to complete the blowing by pressing the action, and can not free his hands, and the use of ionizing air rods, the air pressure of the normal spray brings a waste of energy. The intelligent induction blowing device can effectively solve this problem, when the sensor senses the object, the ion rod starts to blow, the object stops blowing after leaving the sensor, and when the object stays under the sensor, the blowing time can be controlled by the time relay.
Performance
Key Features
❯ Infrared induction of gas
❯ The sensing distance is adjustable
❯ The jet time is adjustable
❯ DC 24V power supply
❯ The sensor can be fixed in a variety of ways
Downloads

You may also be interested in these products

Product Parameter

  • Model
  • DC71
  • Voltage
  • DC 24V
  • Sensing distance
  • 10~30cm
  • Time adjustable
  • 5~30 seconds (customizable)
  • Input air
  • 8mm
  • Output air
  • 8mm
  • Air pressure
  • 0.1~0.8Mpa
  • Indication
  • The red light is on and it works normally
  • Sensor holder
  • Material
  • Iron dusting
  • Weight
  • 250g
  • Environment
  • Temp: 0 to 50°C Humidity: 35 to 80%RH
  • Dimensions
  • 135 x113 x 81.5mm
  • Warranty
  • One-year
