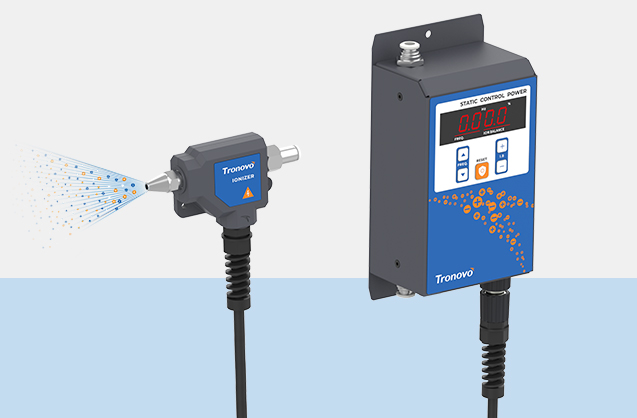

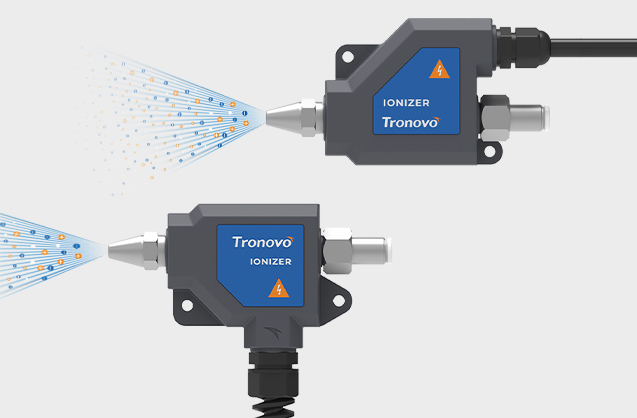

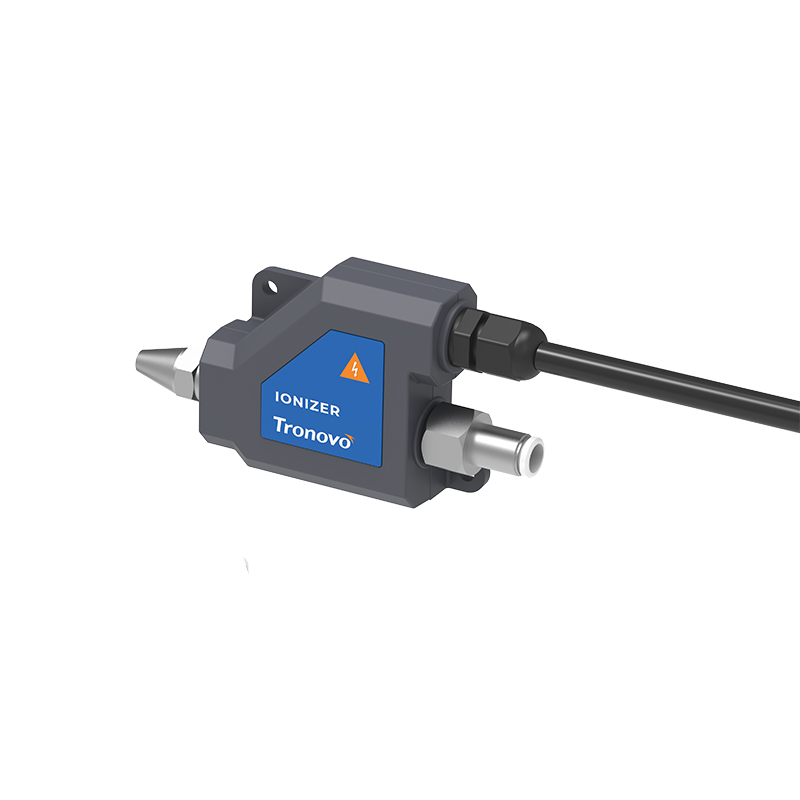

DN53T lonizing Air Nozzle
DN53T lonizing Air Nozzle

DN53T lonizing Air Nozzle

0
Ionic nozzle is ideal for static elimination, contaminant and dust removal of prior to assembly, packaging, painting, or finishing. Compared to traditional compressed air cleaning methods, ionic air nozzles not only effectively eliminate electrostatic charges, but also completely blow away surface contaminants. Neutral surfaces treated with ion nozzles will no longer re-adsorb airborne contaminants from the manufacturing process, ensuring long-lasting cleanliness.
Performance
❯ DP522 and DP53l lon Control Power Only
❯ It is suitable for use in industrial environments and clean room environments
❯ Effectively remove surface contaminants and particles
❯ High-quality materials and manufacturing processes are used
❯ Only DP531 ion control power
❯ Ion needles are easy to clean and replace,reducing maintenance downtime
❯ Ac pulse technology can reduce nozzle electrode losses
Key Features
❯ Adjustable ion balance and frequency
❯ Small size and easy to install
❯ Efficient electrostatic and dust removal
❯ Good durability and reliability
❯ High safety, gas and electricity control
❯ Easy to maintain
❯ Longer service life
Downloads
❯ DN53B DN53T-Tronovo lonizing Air Nozzle

You may also be interested in these products

Product Parameter

  • Model
  • DN53T
  • Discharge
  • ≤1.0S (distance 50mm)
  • Balance
  • ≤|±30V|(AVE) * pulse static control power
  • Airflow
  • 0.1~0.7Mpa
  • Piping entry
  • BOTTOM
  • Connecting
  • 8mm
  • Emitters
  • W-Tungsten
  • Cables
  • 2.5m
  • Environment
  • +5°C to +45°c, humidity: 35 to 70%RH
  • Warranty
  • One-year

Product Details


Highly efficient de-staticizing and dust removal

Good durability and reliability, small size, easy to install.

Adjustable de-static performance
Better de-static effect

By precisely adjusting the output ratio of positive and negative ions, the pulse frequency and voltage can be adjusted according to different application requirements, thus realizing adjustable residual band voltage on the surface of the workpiece.


Rapid neutralization of static electricity
Adoption of Pulse AC Ionization Technology

Pulse AC technology generates a large number of ions in a short time by rapidly switching the polarity of the electrodes and alternately generating positive and negative ions. These ions can rapidly neutralize the electrostatic charge on the surface of the object and achieve faster static elimination.

No inductive leakage
Safe to use, safe “no electricity”.

Plastic gun body, strong insulation, ergonomic and lightweight design, can reduce the workload. High-voltage shielded cable ensures that there is no danger of electric shock to the operator or surrounding equipment during use.


“Simultaneous control of air and electricity” design
Synchronized control of high voltage and air output

This design makes it possible for the ion generator to start generating ions only when the board controls the air blowing, effectively eliminating the risk of spontaneous combustion of the gun body caused by leaving the power supply on for a long time.

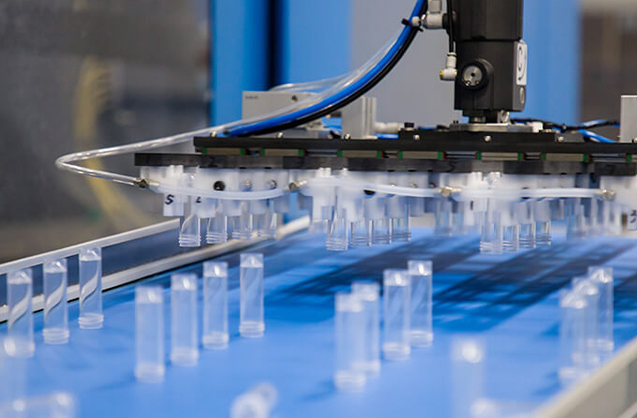

Application Areas

Powerful and concentrated ionized air flow effectively removes surface contaminants, reduces electrostatic adsorption to keep surfaces clean and improves product appearance.
