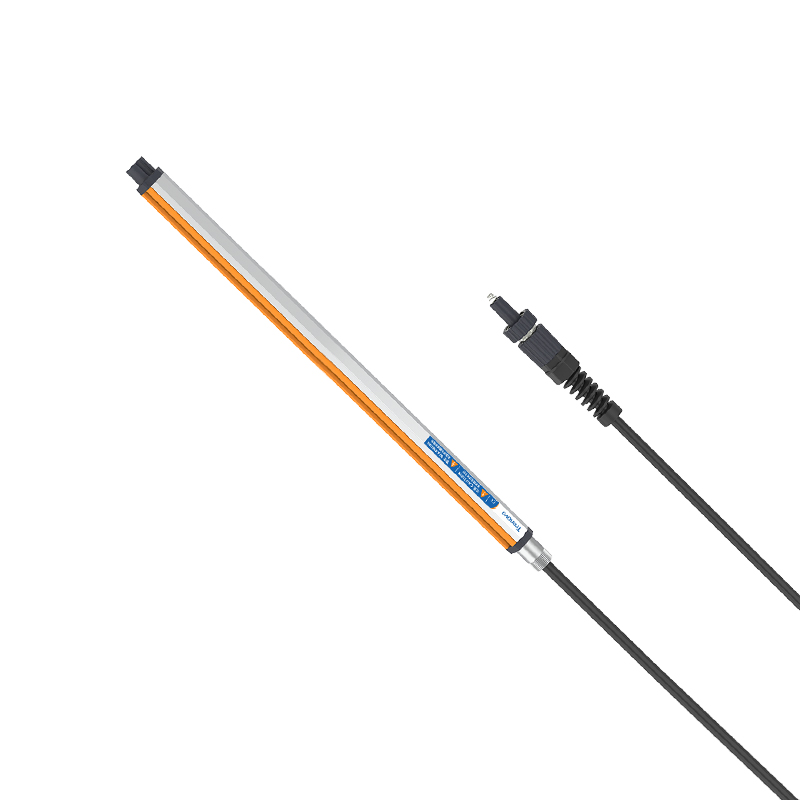

DB72 Ultra-compact lonizing Bar
DB72 Ultra-compact lonizing Bar

DB72 Ultra-compact lonizing Bar

The circular structure of the ion rod provides the ability to adjust it at any angle when fixed, and this circular design gives it advantages in terms of space utilization, aesthetics and ease of use. The ion rod eliminates static electricity quickly and efficiently, and its special alloy electrodes ensure a long service life, bringing lasting value to customers. The design and performance of this ion bar make it ideal for many industries, including plastics, paper, films, and other areas of manufacturing where static electricity needs to be eliminated.
Performance
❯ It is highly adaptable and can be adjustedat any angle
❯ There is no electric shock,ensuring the safety of the operator

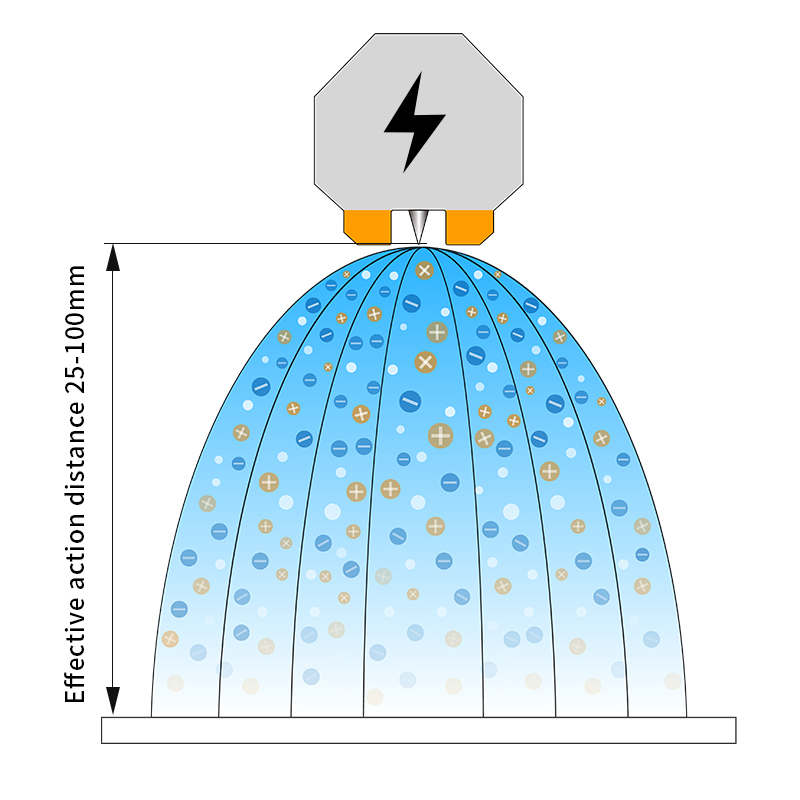

❯ Uniform power dissipation, can act on the distance below 10cm
❯ High-voltage plug with flexible coaxial shielded cable
❯ Prevent damage caused by unclean compressed air
❯ Easy to wipe aluminum and flame-retardant environmentally friendly materials
❯ The back ofthe rod body has a special strip notch,and the mounting bolts can be moved
Key Features
❯ Circular structure design
❯ Inductive coupling technology
❯ Effectively removes static electricity
❯ Reliable connection-patent protected
❯ Low maintenance costs
❯ Safe to use
❯ Easy to install
Downloads
❯ DB72-Tronovo Ultra-compact lonizing Bar

You may also be interested in these products

Product Parameter

  • Model
  • DB72
  • Coupling
  • Induction
  • Discharge
  • ≤0.5S(distance 50mm)

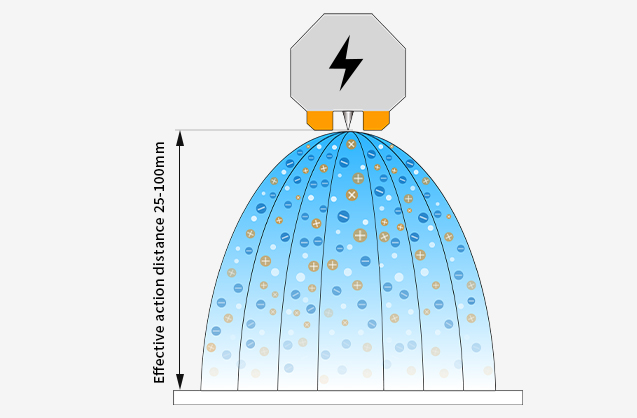

  • Range
  • 25→100mm
  • Distance
  • 50mm / recommend
  • Dimensions
  • 150→2000mm / customized
  • Material
  • Aluminium
  • Emitters
  • SS
  • Cables
  • 2.5m
  • Temperature
  • +5'C to +45°C, humidity: 35 to 70%RH
  • Warranty
  • One-year

Product Details

17339140505f23e8

Round-no wind to remove static electricity

Eliminate the electrostatic charge during product transportation, easy to install in a small space, and the electrostatic removal efficiency is> 85%

In addition to static electricity-the effect must be better!

Instantaneous static removal speed, high-speed industrial production, every second counts, 5kV to 0.5kV, only 0.5 5S

173391574292c897
17339142116f13fd

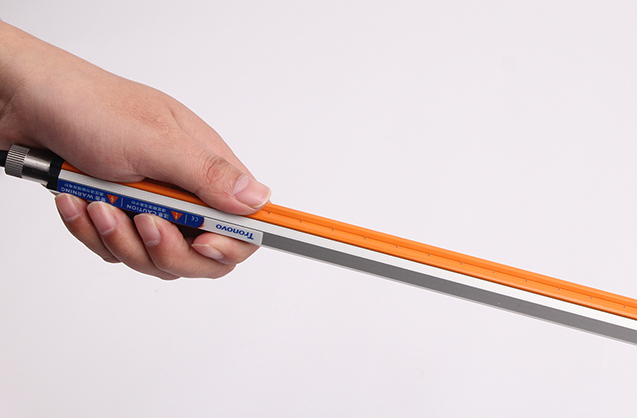

Compact size-easy to install in small areas

High space efficiency performance and flexible adjustment ability can quickly and efficiently eliminate static electricity.

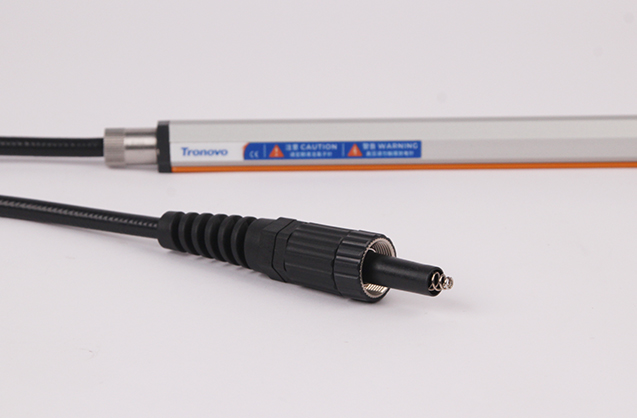

Secure Connection

The use of a new type of airtight high-voltage plug cleverly integrates the grounding function, which not only improves the electrical safety performance and simplifies the installation steps.

1733915822fa8c21
1733916086d3375b

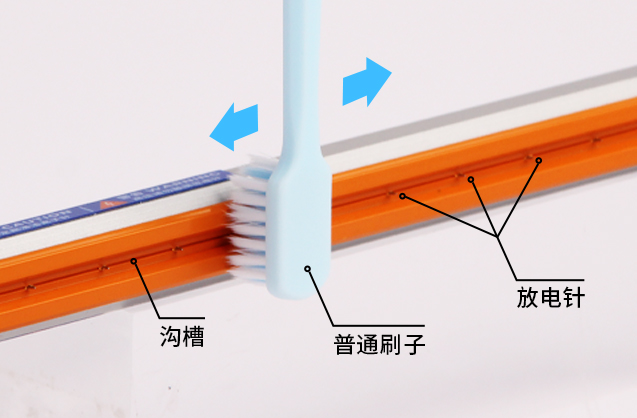

Easy to maintain-easy to clean!

Be sure to turn off the power when cleaning, do not place it in flammable and explosive areas, and use a soft brush to clean the ion needle once a week.

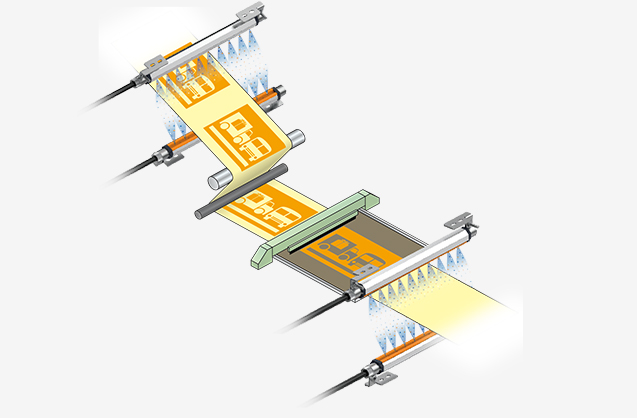

Printing electrostatic removal

Precision substrate and small parts, no need to worry about the sliding of the workpiece and the scattering of small parts.

17339143229c6290
1733915081898d44

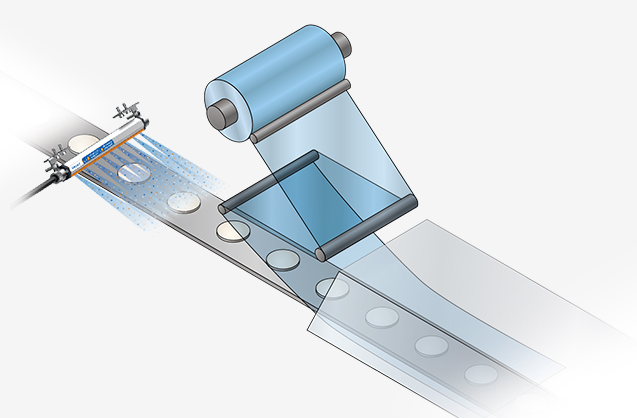

Film electrostatic removal

Wide coverage area, high-speed ion airflow foreign matter defective products decreased sharply.

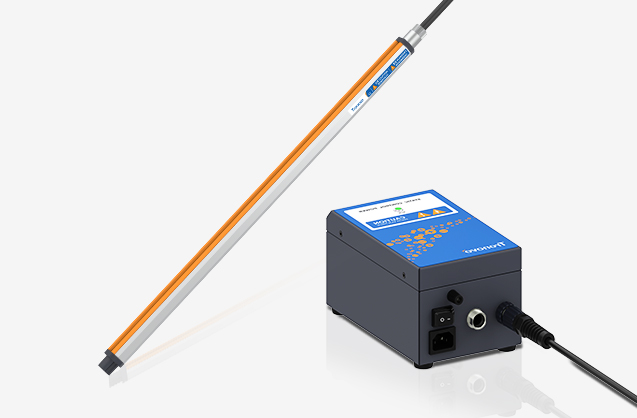

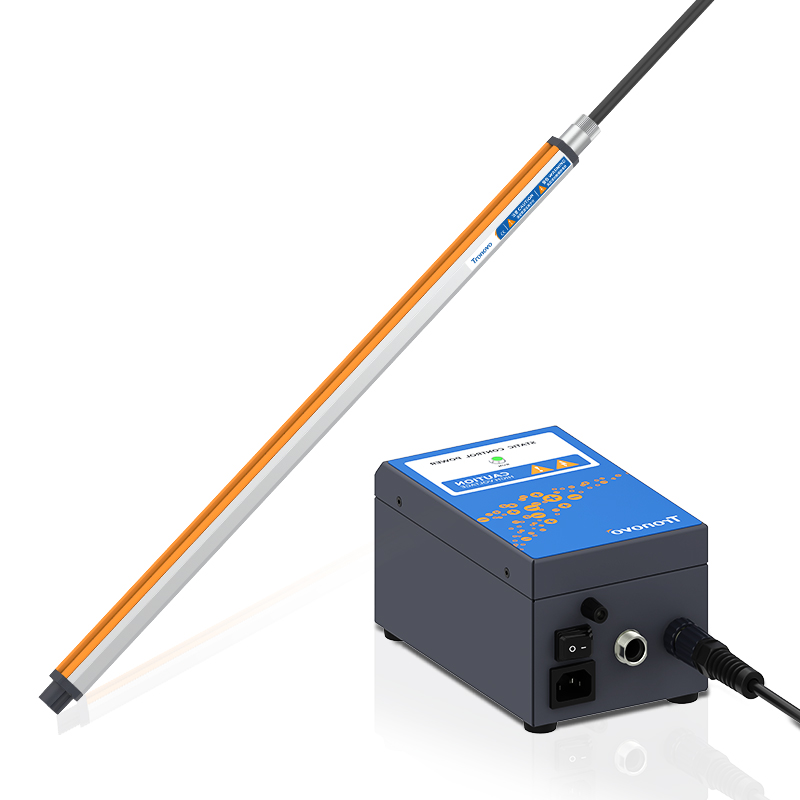

Suitable ion power supplies include!

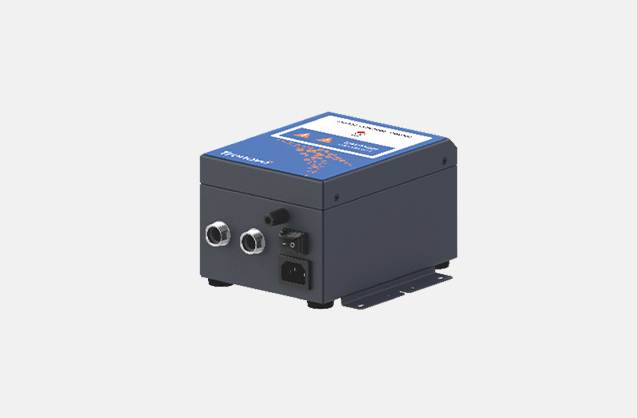

DP522 Static Control Power

173418033885c716
