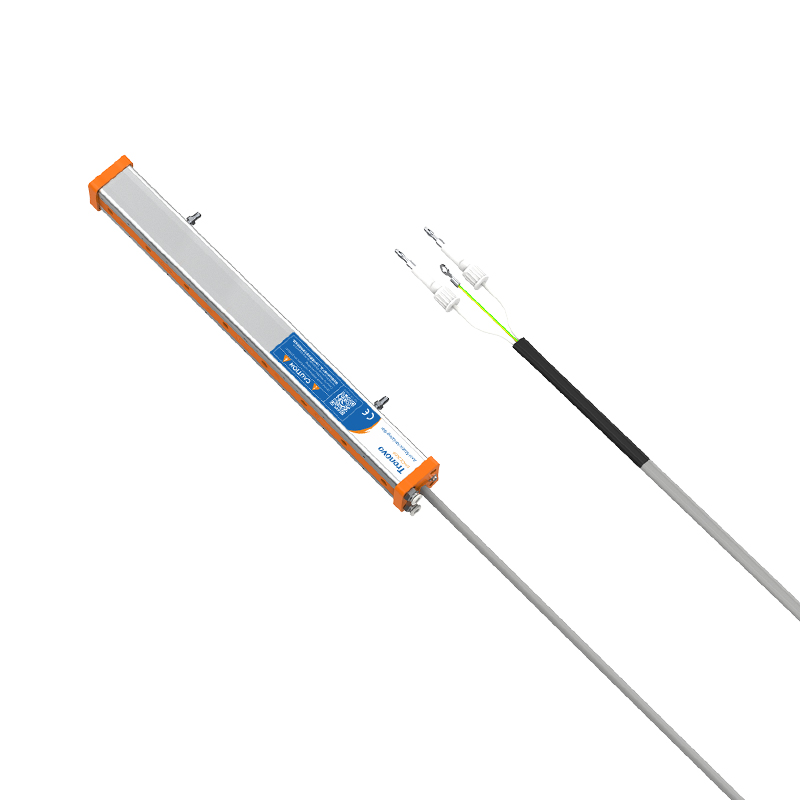

DB732 High Performance lonizing Bar
DB732 High Performance lonizing Bar

DB732 High Performance lonizing Bar

The performance of the static elimination rod meets the strict requirements of the electronics industry for the EPA electrostatic discharge protection zone ionizer, and the residual voltage is less than ±35V. The aluminium enclosure is suitable for use in cleanrooms due to its oxidation resistance and low particle emissions, and the light profile of the aluminium ensures good character requirements and visual integration in the cleanroom. The tungsten alloy electrode ensures a long service life, allows for quick and direct replacement of the ionization needle, and is also very convenient for later maintenance. The square structure, together with a special bar holder, allows for precise axial adjustment of the angle.
Performance
❯ Electrical,pneumatic separation
❯ Ensure the safety of operators
❯ Comply with electronic industry standards, below +35V
❯ Maintain the cleanliness ofthe clean room
❯ Increase ionic air coverage
❯ Easy to wipe aluminum and PVC eco-friendly materials
❯ The back of the rod body has a special strip notch,and the mounting bolts can be moved
Key Features
❯ Excellent stability
❯ Inductive coupling technology
❯ Excellent ionic balance
❯ Suitable for dust-free workshops
❯ Two-row air vent design
❯ Safe to use
❯ Comes with an angle adjustment bracket
Downloads
❯ DB732-Tronovo High Performance lonizing Bar

You may also be interested in these products

Product Parameter

  • Model
  • DB732
  • Coupling
  • Induction
  • Discharge
  • ≤1.5S (Distance 300mm)
  • Balance
  • ≤|±30V|(AVE) Distance 300mm
  • Range
  • 25-100mm→600mm
  • Dimensions
  • 150→3000mm/customized
  • Airflow
  • 0.1~0.7Mpa
  • Air input
  • 6mmx2
  • Ozone
  • ≤0.04ppm not exceeding
  • Material
  • Aluminium
  • Emitters
  • Tungsten
  • Cable
  • 2.5m (custom length available)
  • Environment
  • +5°C to +45°C, humidity: 35 to 70%RH
  • Warranty
  • Two-year
