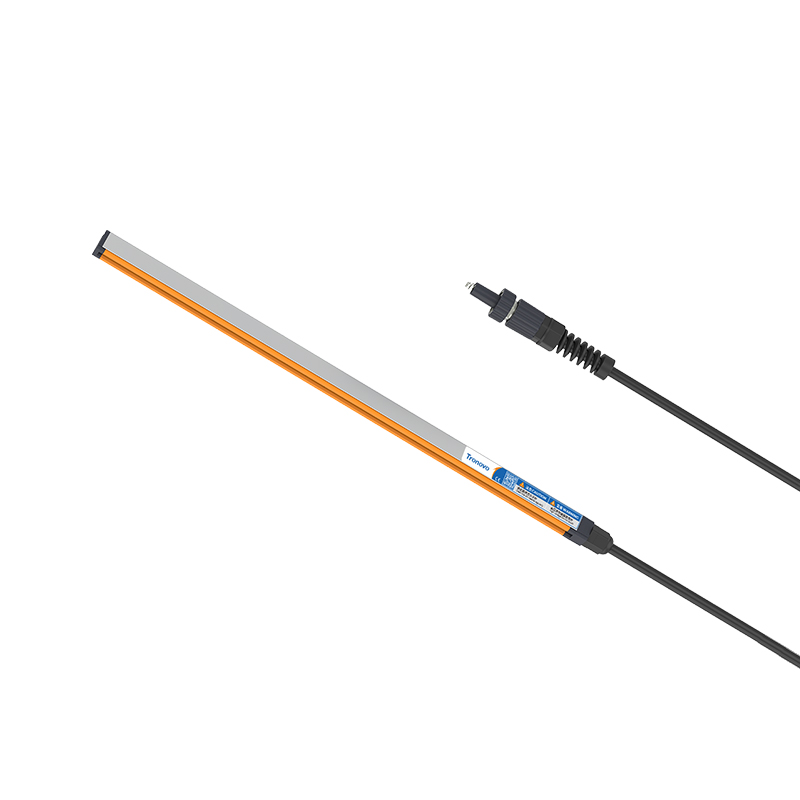

DB51 Ultra-Small lonizing Bar
DB51 Ultra-Small lonizing Bar

DB51 Ultra-Small lonizing Bar

The square minimaturization of static elimination rods achieves superior performance and safety with its extreme size. The ion rod achieves a high electrostatic elimination efficiency while minimizing its , size,significantly surpassing other similar products on the market, The ion rod uses our patented technology of airtight high-voltage plug and flexible coaxial shielded cable to achieve a superior performance to traditional plugs, and has also achieved significant improvements in safety, durability and ease of use, making it ideal for removing static electricity in many narrow scenes.
Performance
❯ Easy to install in confined spaces
❯ There is no electric shock, ensuring the safety of the operator
❯ Uniform power dissipation, can act on the distance below 10cm
❯ High-voltage plug with flexible coaxial shielded cable
❯ Prevent damage caused by unclean compressed air
❯ Easy to wipe aluminum and flame-retardant environmentally friendly materials
❯ The back of the rod body has a special strip notch,and the mounting bolts can be moved
Key Features
❯ Small cross-section
❯ Resistive coupling technology
❯ Effectively removes static electricity
❯ Reliable connection-patent protected
❯ Low maintenance costs
❯ Safe to use
❯ Easy to install
Downloads
❯ DB51-Tronovo Ultra-Small lonizing Bar

You may also be interested in these products

Product Parameter

  • Model
  • DB51
  • Coupling
  • Resistive
  • Discharge
  • <0.3S (distance 50mm)

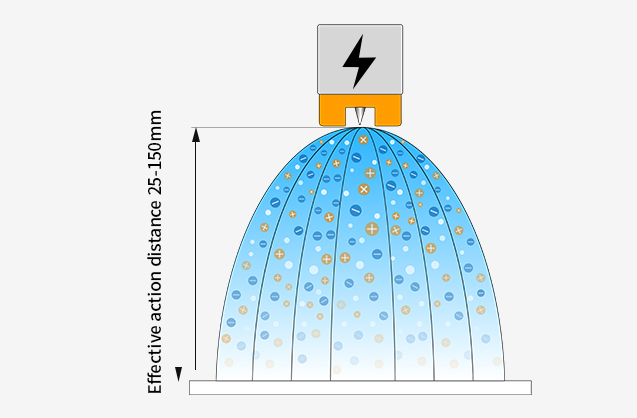

  • Range
  • 25→150mm
  • Distance
  • 50-100mm/recommend
  • Dimensions
  • 150→1500mm/customized
  • Material
  • Aluminium
  • Emitters
  • SS
  • Cables
  • 2.5m
  • Temperature
  • +5°C to +45°c, humidity: 35 to 70%RH
  • Warranty
  • One-year

Product Details


Extreme Compact-Powerful Performance

Extremely small square static elimination rod
  Easy to install in a small space in addition to static efficiency> 90%

In addition to static electricity-the effect must be better!

Instantaneous static removal speed, high-speed industrial production, every second counts, 5kV to 0.5kV, only 0.3s.


Compact size-easy to install in small areas

High space utilization, high efficiency performance and flexible adjustment ability can quickly and efficiently eliminate static electricity,

Secure Connection

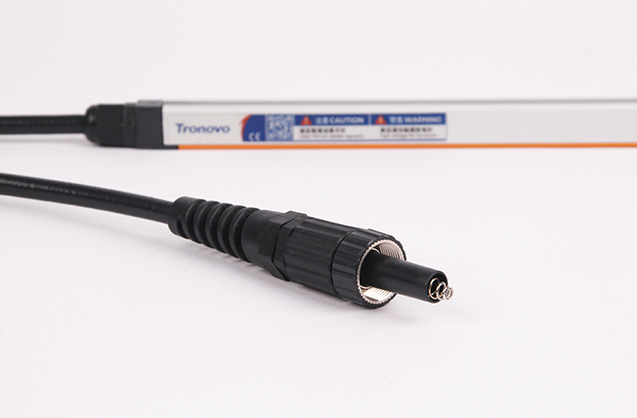

The use of a new type of airtight high-voltage plug cleverly integrates the grounding function, which not only improves the electrical safety performance and simplifies the installation steps.


No wind to remove static electricity

Since there is almost no dust diffusion caused by air, it is suitable for static elimination in a dust-free environment.

Small space installation

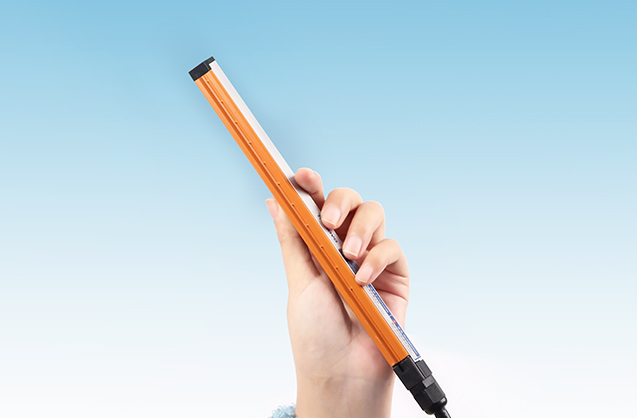

The diameter is only the size of a finger, suitable for installation inside the device, in addition to static performance is stable, can support PLC control.

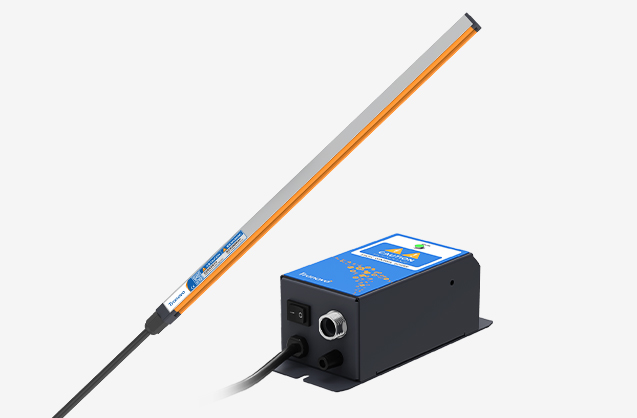

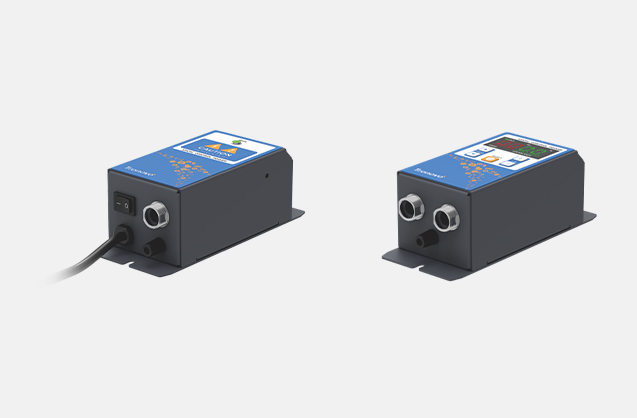

Suitable ion power sources include:

DP522 Static Control Power
DP511 Static Control Power
