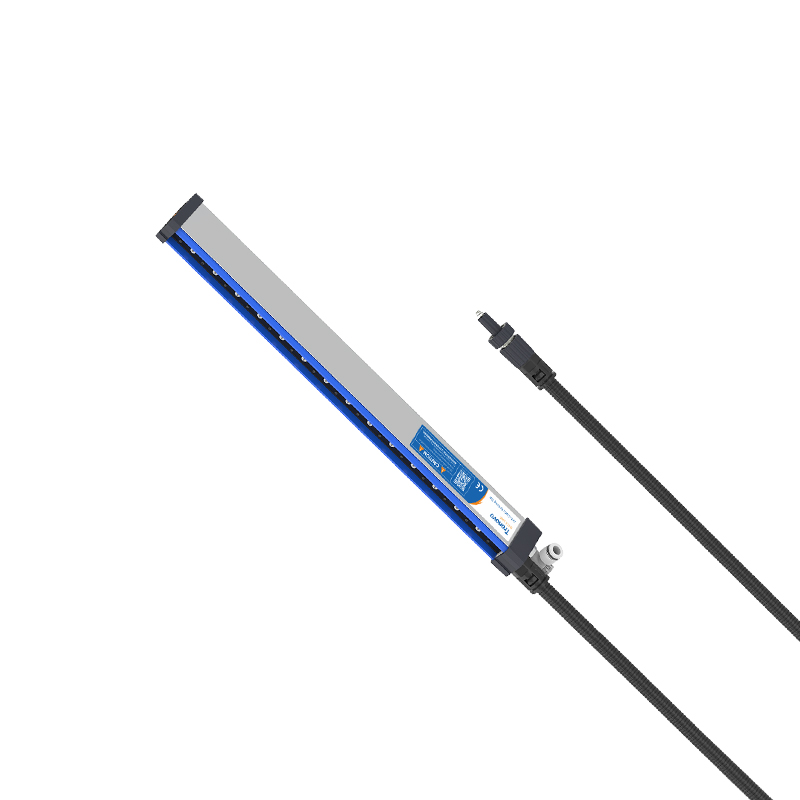

DB531 High-power lonizing Bar
DB531 High-power lonizing Bar

DB531 High-power lonizing Bar

After tens of thousands of customers have been installed and used on site, the ultra-high repurchase rate has proved its excellent quality and performance. Its innovative technology and high-grade materials enable it to quickly, effectively and reliably remove surface static electricity from the production process even at medium to high speeds. The design with air source gives it the ability of ionic air knife, which can act on a long distance of more than 50cm. Thanks to its high-speed airflow, it is able to blow away foreign matter adsorbed by static electricity, making it a powerful assistant in industrial production and a trusted choice for customers.
Performance
❯ High-quality materials guarantee long-term results
❯ There is no electric shock,ensuring the safety of the operator
❯ Quickly eliminates static electricity and remains effective at faster web speeds
❯ Hermetically sealed high-voltage plug with flexible coaxial shielded cable
❯ It can be applied to a distance of more than 60cm
❯ Environmentally friendly materials of aluminum and flame retardant PVC for easy wiping
❯ The back of the rod body has a special strip notch,and the mounting bolts can be moved
Key Features
❯ Excellent stability
❯ Resistive coupling technology
❯ Efficient anti-static performance
❯ Reliable connection-patent protected
❯ Longer range
❯ Safe to use
❯ Easy to install
Downloads
❯ DB531-Tronovo High-power lonizing Bar

You may also be interested in these products

Product Parameter

  • Model
  • DB531
  • Coupling
  • Resistive
  • Discharge
  • ≤0.6S (Distance 300mm)
  • Balance
  • ≤|±30V|(AVE) * pulse static control power
  • Range
  • 25→100mm-600mm
  • Dimensions
  • 150→3000mm/customized
  • Airflow
  • 0.1~0.7Mpa
  • Air input
  • 8mm
  • Material
  • Aluminium
  • Emitters
  • Tungsten
  • Cable
  • 2.5m
  • Temperature
  • +5°C to +45°c, humidity: 35 to 70%RH
  • Warranty
  • One-year

Product Details

1733921284fba514

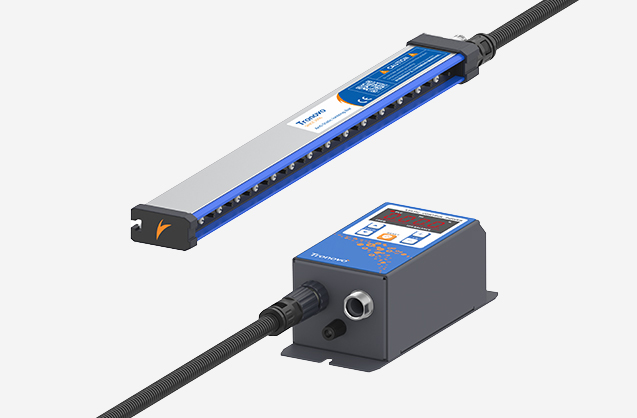

Pulse type static eliminator

High voltage square wave pulse width modulation technology, precise control of ion output, lower static residual

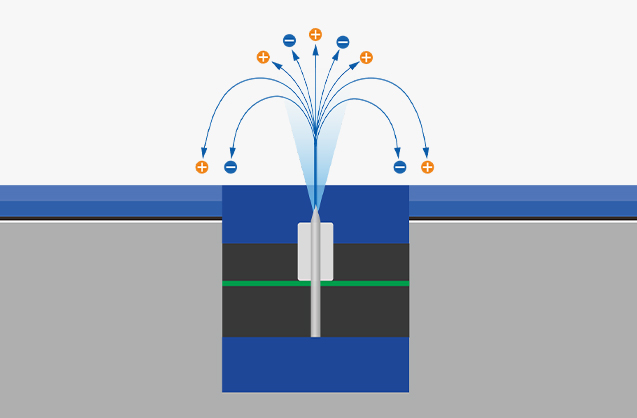

Efficient ion generation technology

The use of imported high-end static eliminator high-voltage square wave pulse width modulation technology, through the precise control of the square wave duty cycle and frequency, high efficiency in addition to static。

1733921356af3ef0
1733921726e1e68a

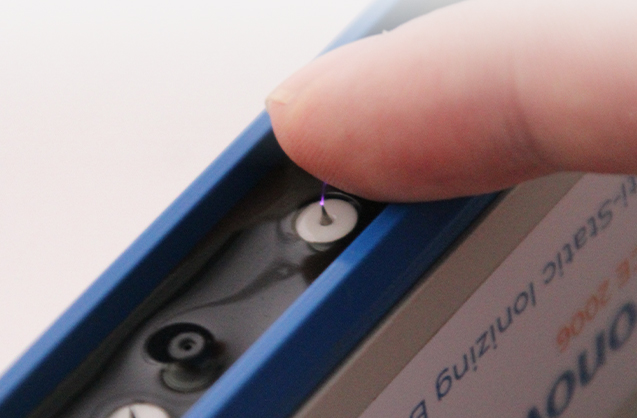

Electric Shock Protection-Safe

Ceramic resistance coupling is used to limit the discharge energy of the ion needle and improve product safety. Protect the operator from touching the electrode needle carelessly and causing pain by electric shock.

Design to improve service life

The ion needle is isolated by ceramic magnetic column, which can solve the problem of aging and powder falling of epoxy resin caused by high temperature and redox reaction.

17340083012df9e8
1734008392b39aa1

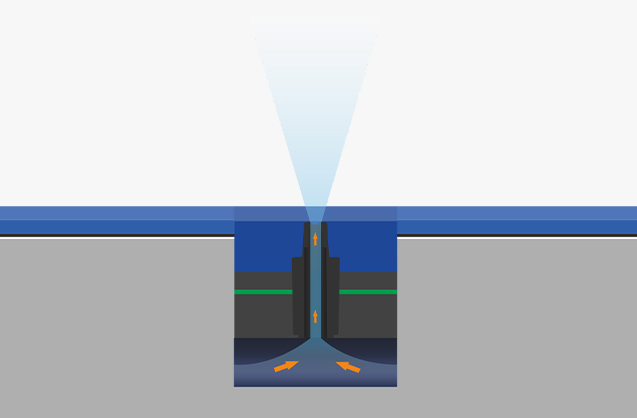

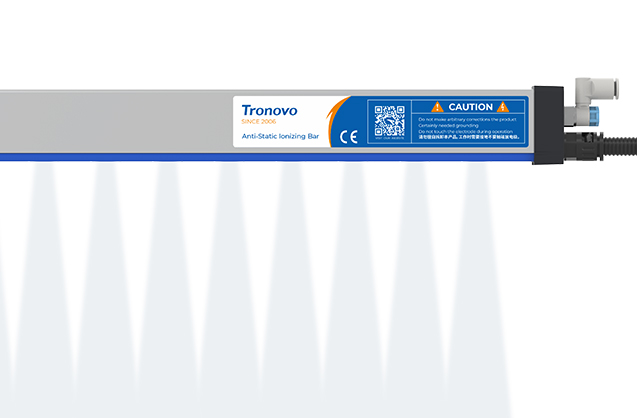

Improving the working efficiency of static elimination rods

The special air duct structure of the mold is adopted to make the ion air flow more uniform and improve the working efficiency of the static elimination rod.

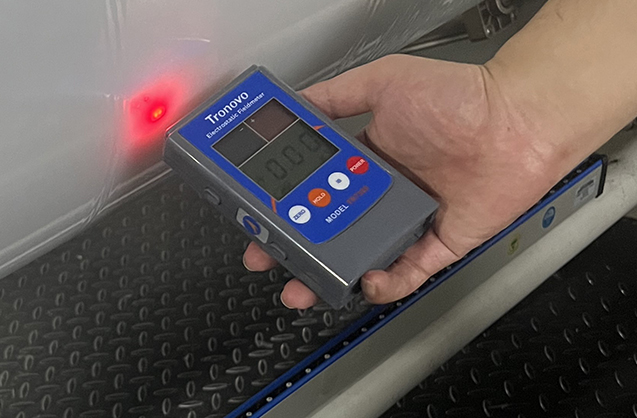

Lower residual static can be achieved

By accurately adjusting the output ratio of positive and negative ions, the ion bar can more efficiently neutralize the positive and negative electrostatic charges on the surface of the object, so as to realize the adjustable value of the residual band voltage on the surface of the special body.

1733921541f9d152
17344339880f6ead

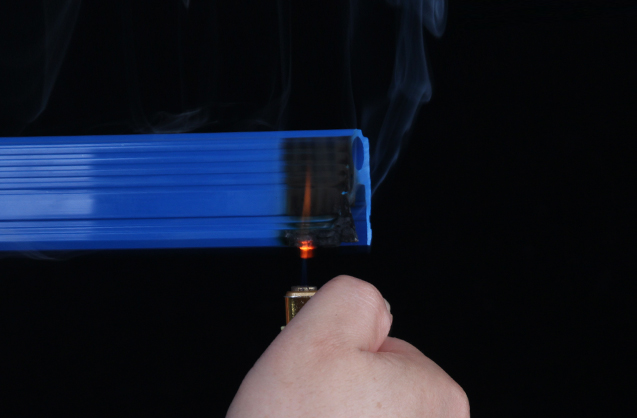

Flame retardant material

The rod body is made of high-grade barrier material, without fire risk, which is one of the important measures to ensure the safety of ion rods.

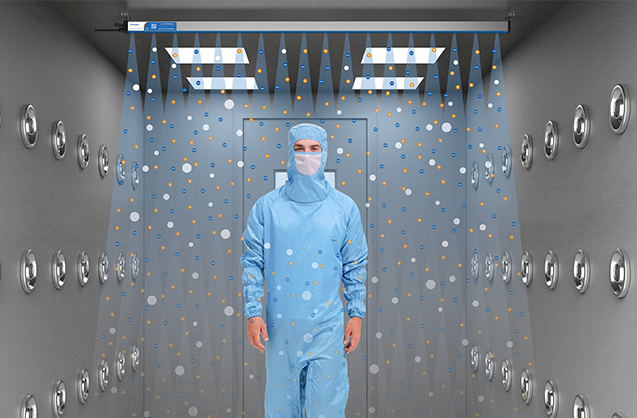

Long Distance-Space Static Removal

Air shower room, dust suit changing room, effective control of particle adhesion.

173392143774334b
17339219992e1ad7

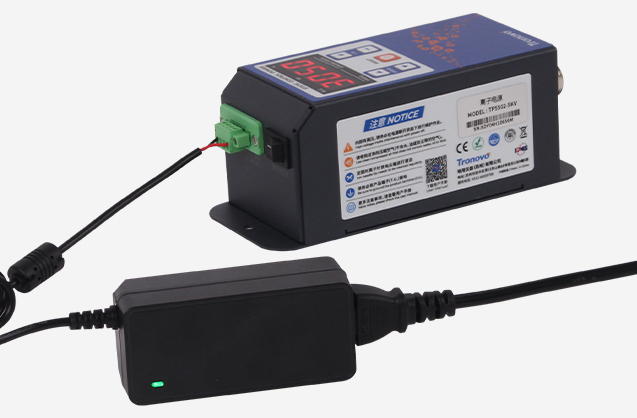

24V low voltage wiring

The use of low-voltage wiring, high flexible drag chain power cord, etc., the adapter needs to be purchased separately.

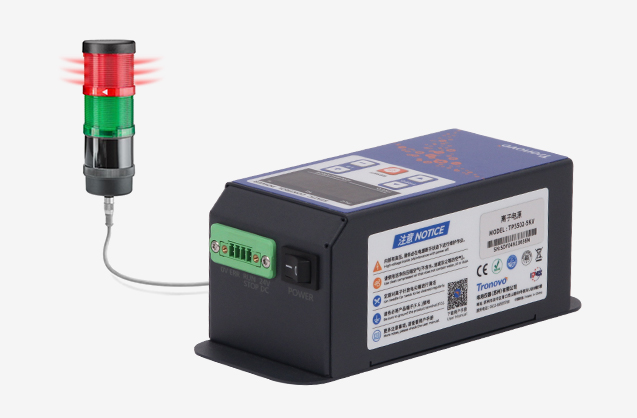

Support PLC control

Ion power IO interface design, fully consider the actual needs of the automation industry, * only TP5502 ion power support this function.

173392188531618e

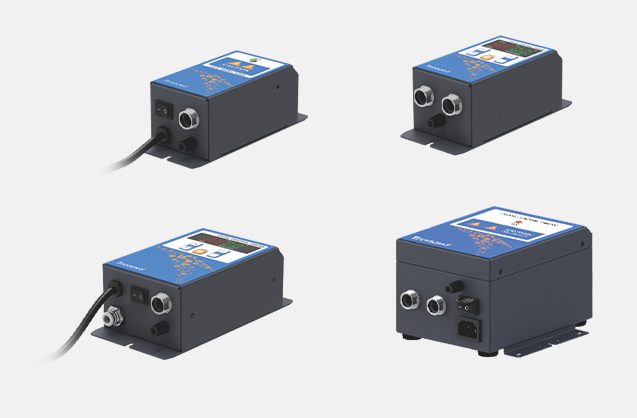

Suitable ion power sources include,

TR8600-11-5.6kV
  TP5301-6.0kV
  TP5502-6.0kV
  TP5501CA-6.0kV
