The ionic air snake with power frequency technology provides efficient static elimination and dust removal, and also has a good price/performance ratio, Due to its simple structure, it can maintain stable performance no matter what kind of production environment. t is widely used in various fields such as printing, packaging, plastics, spraying, etc. which affect production efficiency and product quality, and ionic wind snakes can effectively solve these problems.
Performance
❯ Capable of stable ion output
❯ Induction is the blowing of ionic air, making the operation more convenient
❯ Serpentine tube design, easy to adapt to various angles
❯ Prevent the risk of ablation in the field due to anomalies
❯ The structure is simple and easy to maintain
❯ It has a good cost performance
❯ Hands-free, easy airflow
❯ Filters compressed air from impurities
Key Features
❯ Efficient and stable
❯ Easy to operate-photoelectric sensor
❯ Flexibility
❯ Design safety
❯ Simple maintenance
❯ Affordable
❯ Option foot switch
❯ Option air filter
Downloads

You may also be interested in these products

Product Parameter

  • Model
  • DN543
  • Voltage
  • 220V±5%
  • Discharge
  • ≤1.5S (Distance100mm)
  • Balance
  • ≤|±50V|(AVE)
  • Sensing distance
  • 100→500mm Adjustable
  • Technology
  • AC
  • Air pressure
  • 0.15~0.7Mpa
  • Connecting
  • 8mm
  • Number snake
  • 1
  • Ozone
  • ≤0.04ppm
  • Emitters
  • Tungsten
  • lon indication
  • Work indicator
  • Environment
  • +5°C to +45°c, humidity: 35 to 70%RH
  • Warranty
  • One-year limited warranty
  • Option

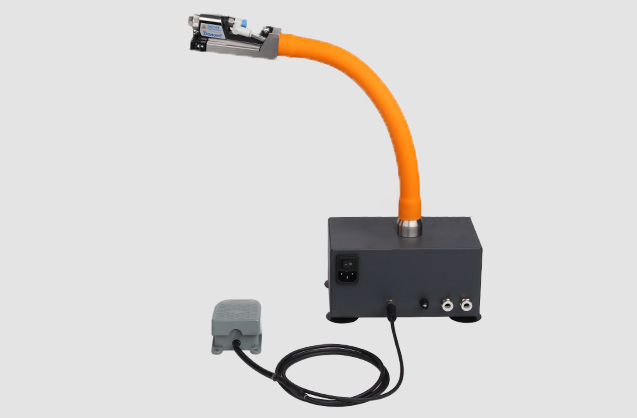

  • Foot switch (DN-FPO1), air filter (DN-AFO1)

Product Details


Removes static electricity and foreign matter from surfaces

This industrial air snake efficiently removes static and foreign objects from workbenches. This industrial air snake is designed to eliminate static electricity from workbenches. The flexible tube can be bent and deformed at will to point precisely at the target area. The innovative use of a photoelectric sensor switch automatically senses when to start and stop the airflow, achieving contact-free operation and leaving your hands free. It effectively cleans the work surface, improving working efficiency and product yield.

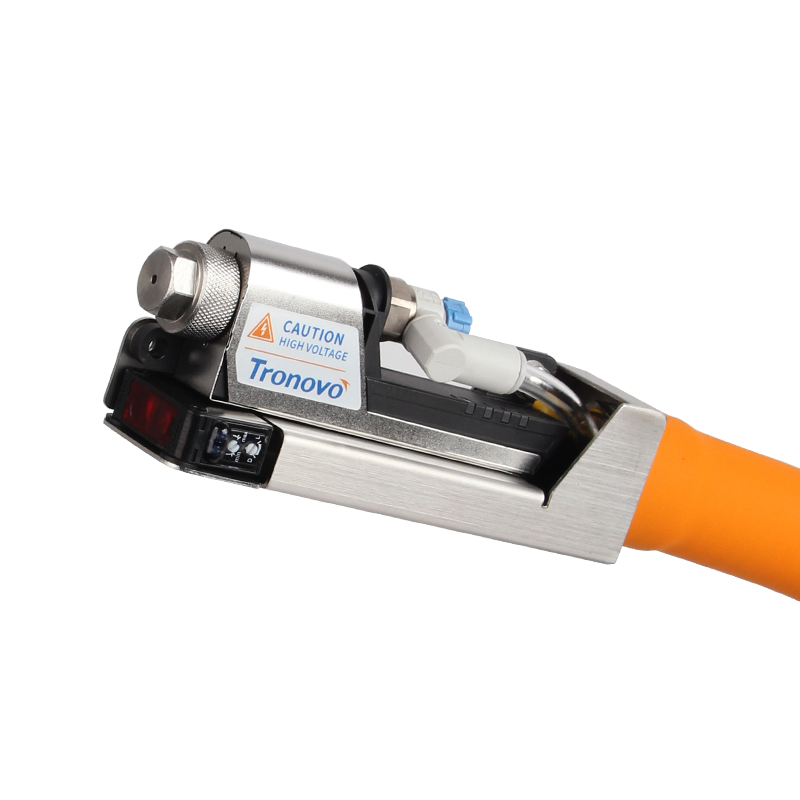

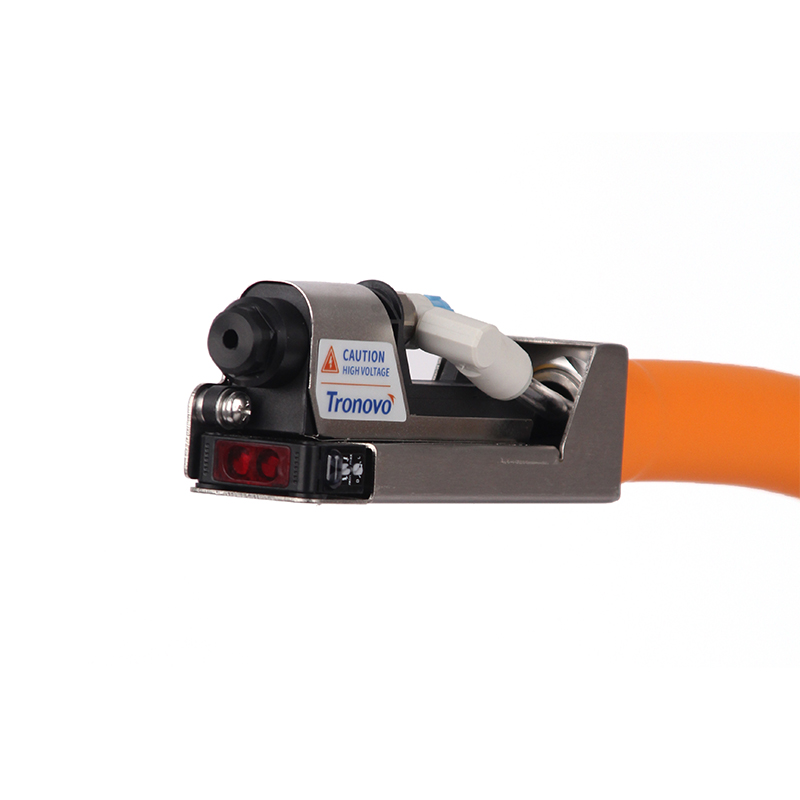

Inductive design - simultaneous control of gas and electricity

It adopts an inductive static elimination design to realise pneumatic and electric synchronous intelligent control. When an object enters the sensor area 300 mm in front of the nozzle, compressed air is automatically connected and the high-pressure ion is turned on, blowing a strong ion wind. This cutting-edge gas-electric synchronous technology efficiently neutralises static electricity while effectively reducing ozone generation. It is suitable for precision electronics, packaging, and other applications requiring static electricity treatment.


Front throttle valve - the airflow size is easy to adjust

The front airflow throttle valve enables adjustment of the wind volume for a strong, stable wind. The photoelectric sensor ionic wind switch enables automatic control of the airflow without manual operation, freeing up your hands to improve efficiency.

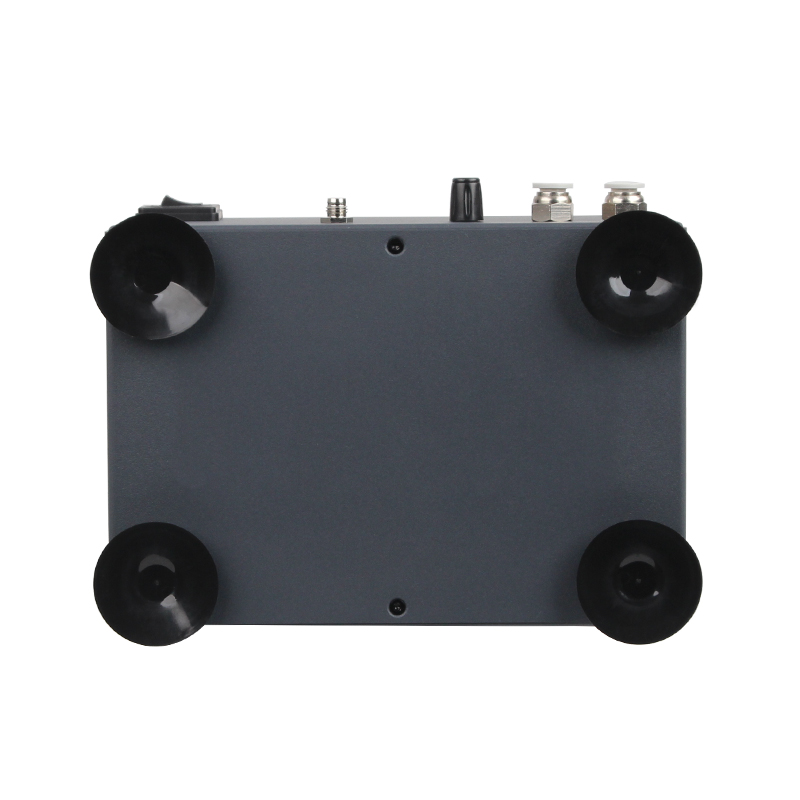

Suction cup design - There is a mounting suction cup at the bottom

The bottom-mounted suction cup design provides stable adsorption to workbenches or machine equipment surfaces. There is no need for complicated fixing; it is ready to use in a variety of scenarios. The adjustable snake tube can accurately point to the target and has a photoelectric induction static elimination function. This is ideal for electronic processing, precision assembly and other workbench scenarios, as it achieves stable and efficient removal of static electricity and foreign bodies.
