DN543D Ionizing Wind Snake
DN543D Ionizing Wind Snake
DN543D Ionizing Wind Snake
DN543D Ionizing Wind Snake
DN543D Ionizing Wind Snake
DN543D Ionizing Wind Snake

DN543D Ionizing Wind Snake

The ionic air snake with power frequency technology provides efficient static elimination and dust removal, and also has a good price/performance ratio, Due to its simple structure, it can maintain stable performance no matter what kind of production environment. t is widely used in various fields such as printing, packaging, plastics, spraying, etc. which affect production efficiency and product quality, and ionic wind snakes can effectively solve these problems.
Performance
❯ Capable of stable ion output
❯ Induction is the blowing of ionic air, making the operation more convenient
❯ Serpentine tube design, easy to adapt to various angles
❯ Prevent the risk of ablation in the field due to anomalies
❯ The structure is simple and easy to maintain
❯ It has a good cost performance
❯ Hands-free, easy airflow
❯ Filters compressed air from impurities
Key Features
❯ Efficient and stable
❯ Easy to operate-photoelectric sensor
❯ Flexibility
❯ Design safety
❯ Simple maintenance
❯ Affordable
❯ Option foot switch
❯ Option air filter
Downloads

You may also be interested in these products

Product Parameter

  • Model
  • DN543
  • Voltage
  • 220V±5%
  • Discharge
  • ≤1.5S (Distance100mm)
  • Balance
  • ≤|±50V|(AVE)
  • Sensing distance
  • 100→500mm Adjustable
  • Technology
  • AC
  • Air pressure
  • 0.15~0.7Mpa
  • Connecting
  • 8mm
  • Number snake
  • 2
  • Ozone
  • ≤0.04ppm
  • Emitters
  • Tungsten
  • lon indication
  • Work indicator
  • Environment
  • +5°C to +45°c, humidity: 35 to 70%RH
  • Warranty
  • One-year limited warranty
  • Option
  • Foot switch (DN-FPO1), air filter (DN-AFO1)

Product Details


Removes static electricity and foreign matter from surfaces

It is suitable for use on the workbench, the snake tube can be deformed at will to make the wind snake point to the target direction, and the photoelectric induction switch controls the airflow, without manual operation.

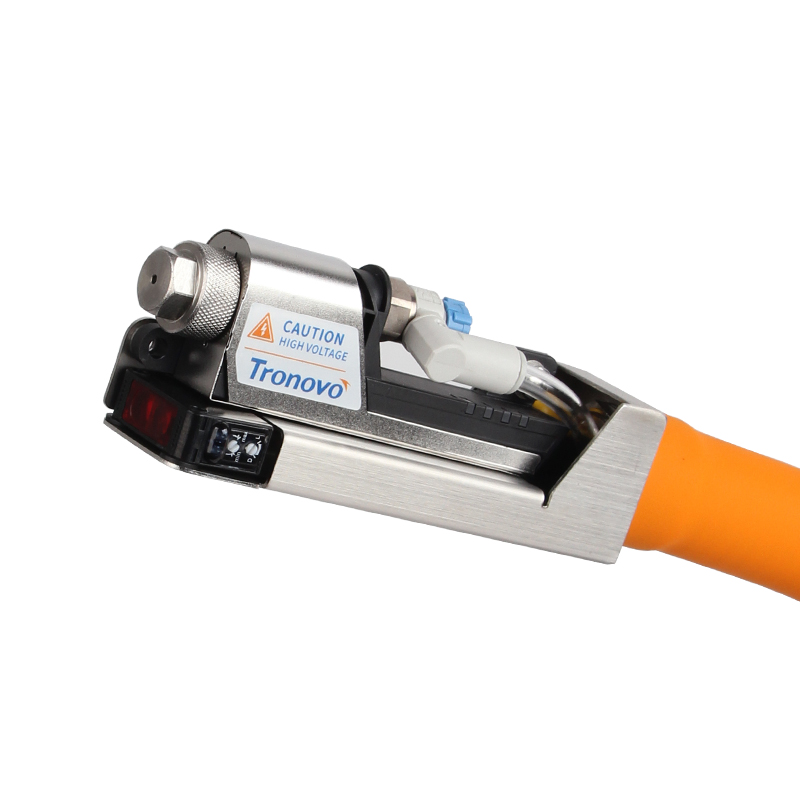

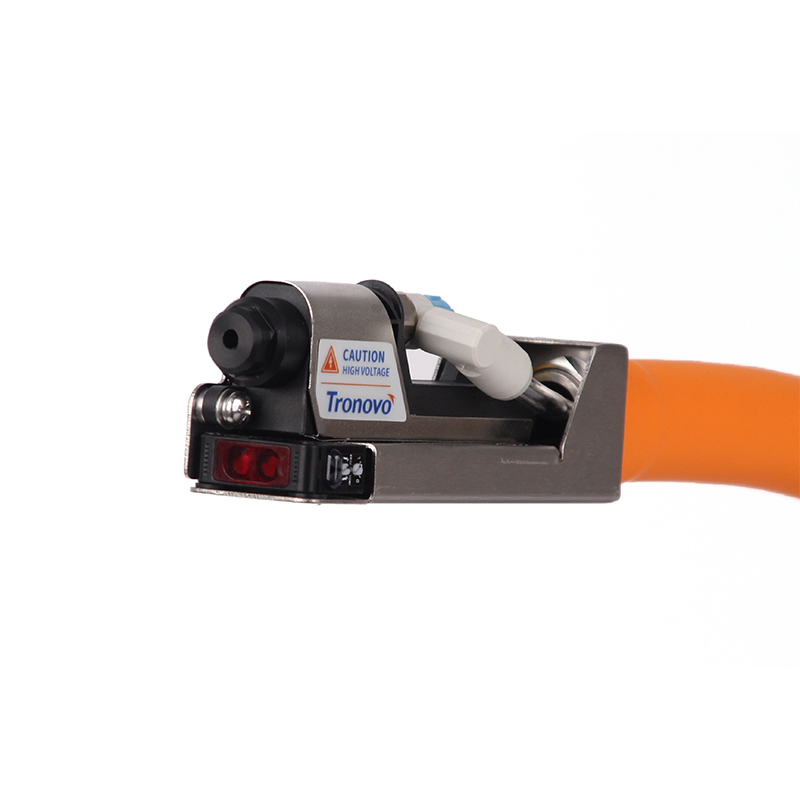

Inductive design - simultaneous control of gas and electricity

When an object appears within 300mm in front of the nozzle, the nozzle can automatically turn on the compressed air and turn on the high-pressure ions at the same time, blowing out a strong ionic wind. The industry's cutting-edge gas-electric synchronous control can effectively reduce ozone generation


Front throttle valve - the airflow size is easy to adjust

The air volume can be adjusted arbitrarily, the wind is strong, and the photoelectric induction switch controls the airflow without manual operation.

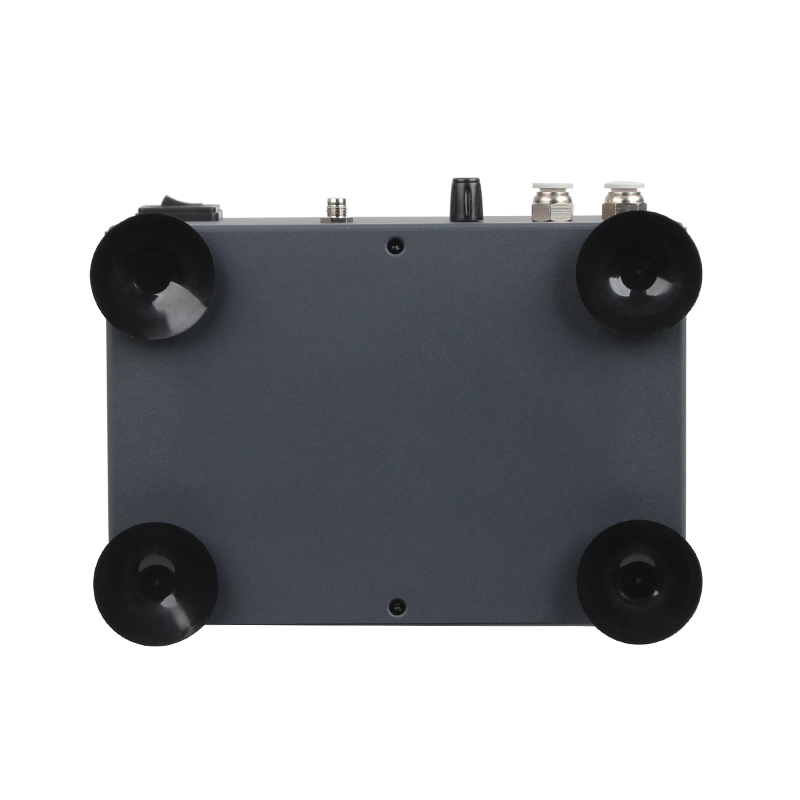

Suction cup design - There is a mounting suction cup at the bottom

It is suitable for use on the workbench or installed on the machine.

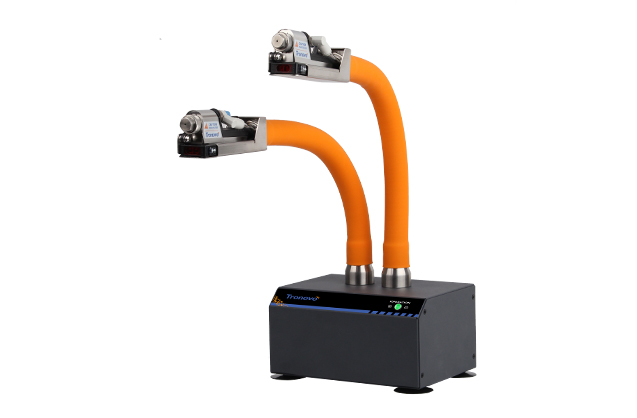

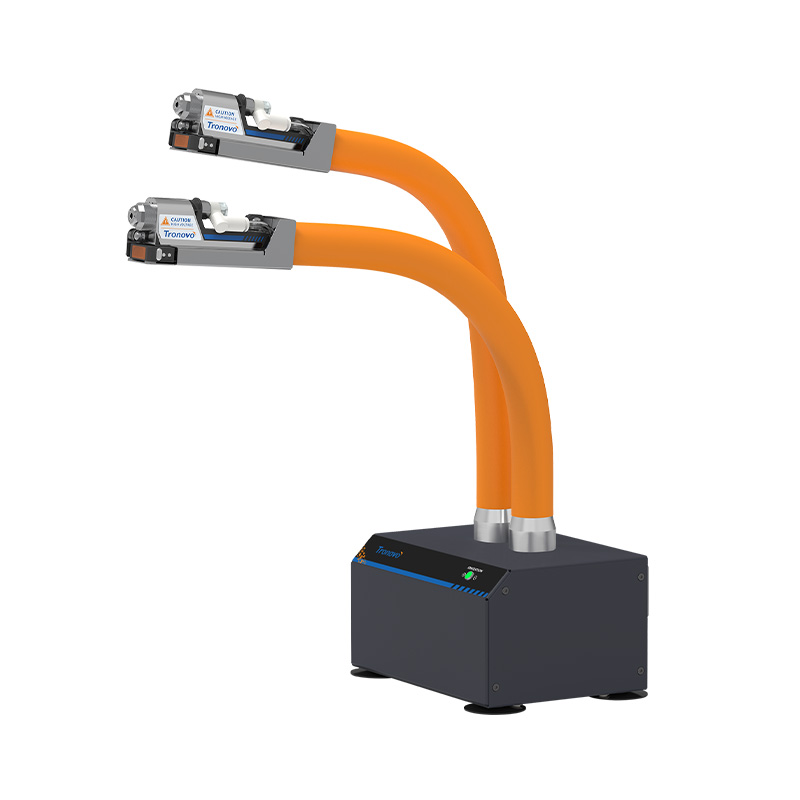

Double-headed snake tube - work efficiency is greatly improved

One machine can be used for two stations, which occupies a small area, which is more convenient to use and saves a lot of time.

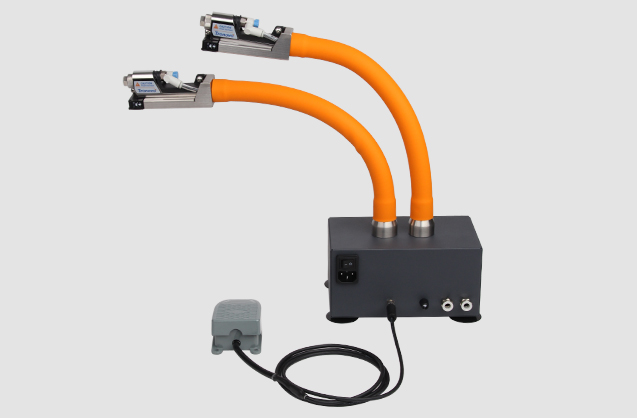

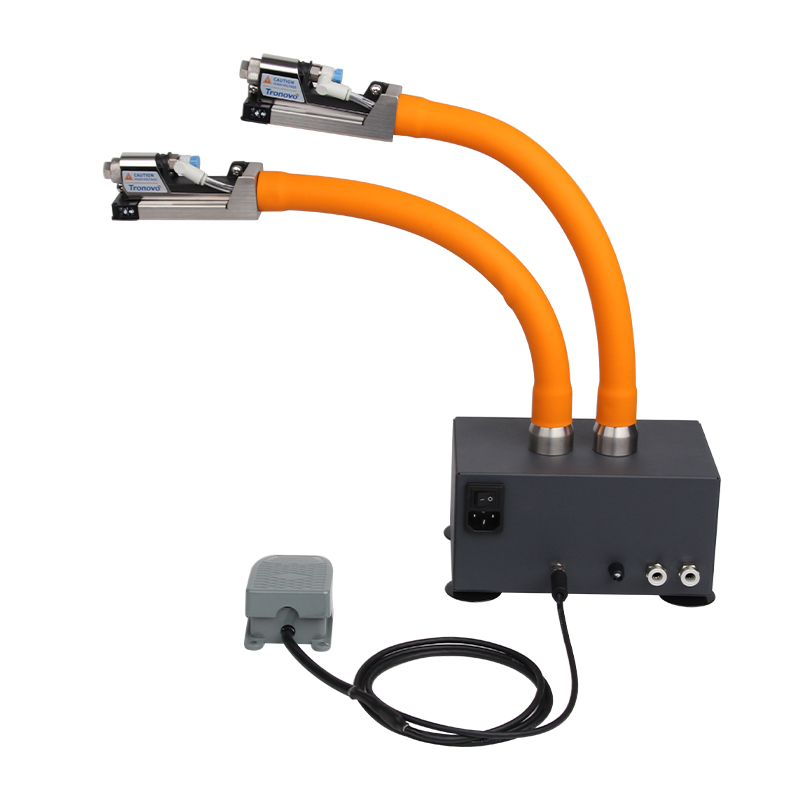

Foot pedal function - user-friendly design

To improve the operator's sense of experience, the role of the foot pedal is mainly to free the operator's hands during operation.

Product Video
