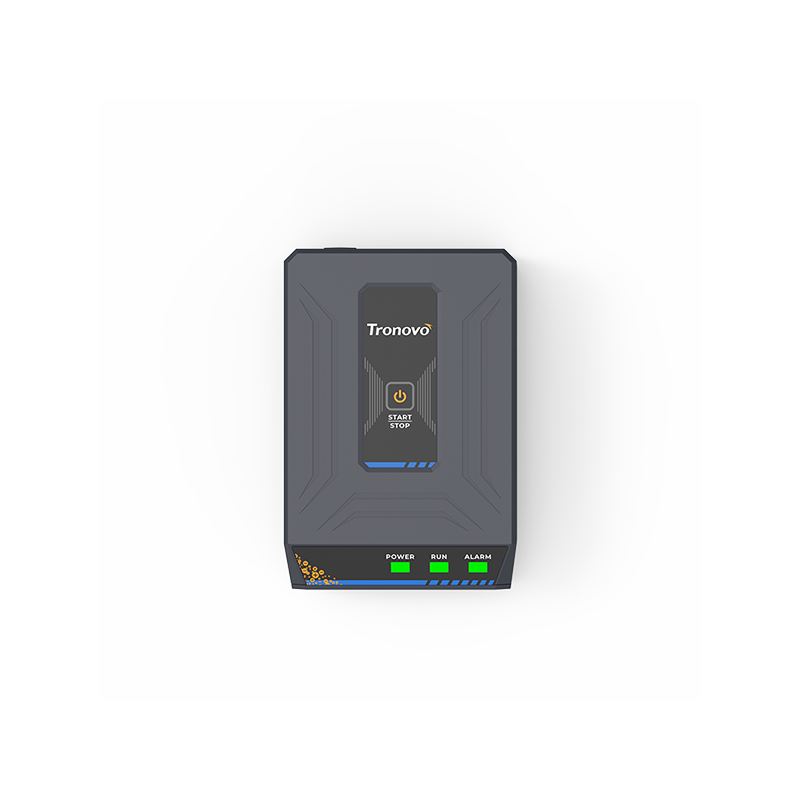

DS932 Laminar Flow Area Static Eliminator
DS932 Laminar Flow Area Static Eliminator
DS932 Laminar Flow Area Static Eliminator
DS932 Laminar Flow Area Static Eliminator
DS932 Laminar Flow Area Static Eliminator
DS932 Laminar Flow Area Static Eliminator
DS932 Laminar Flow Area Static Eliminator
DS932 Laminar Flow Area Static Eliminator

DS932 Laminar Flow Area Static Eliminator

0
Miniature windless static eliminator, palm size fits narrow space and equipment integration. Relying on DC technology to generate ions, no airflow interference, eliminate dust pollution, zero noise operation. Intelligent LED real-time monitoring of working conditions, support PLC and RS485 interconnection, easy maintenance. Quickly eliminate static electricity within 10-40cm, adapt to chip packaging, precision assembly, micro-weighing and other scenes, guard high-value components and data accuracy, is the ideal choice for precision operations.
Performance
Key Features
❯ Ultra-small body only palm large, easy to integrate equipment inside or narrow space
❯ No airflow design, from the root to avoid the risk of secondary pollution.
❯ Intelligent LED indicator, real-time feedback running, standby or abnormal state
❯ Support PLC control and RS485 protocol, seamless access to industrial networks
❯ Run the whole zero noise, adapt to the high demand for mute precision work environment.
❯ Low daily maintenance requirements, significant savings in long-term use and maintenance costs.
❯ 10-40cm effective range, quickly eliminate static electricity, ensure efficient and accurate operation.
Downloads

You may also be interested in these products

Product Parameter

  • Model
  • DS932
  • Operating voltage
  • 24VDC±5%
  • Product power
  • About 0.7W
  • Corona mode
  • Pulse DC mode
  • Power dissipation speed
  • <5 seconds @ 20cm
  • Electrode material
  • Tungsten (W)-Tungsten
  • Number of discharge pins
  • 2

Product Details

画板 2

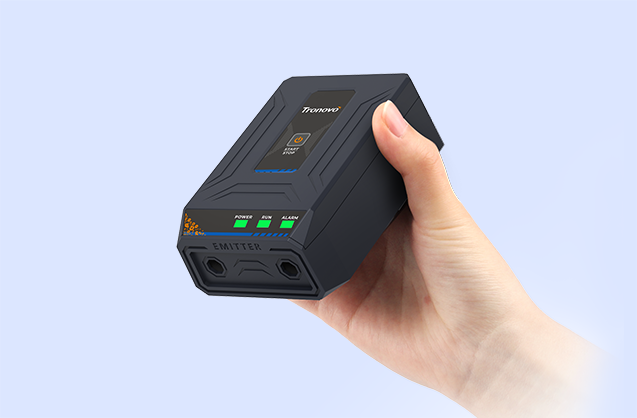

Compact design, worry-free static

The ultra-small windless static eliminator designed for precision operations, the mini body is only the size of the palm, easy to integrate into the equipment or narrow space. Whether it is chip assembly, optical lens cleaning, or inside the instrument, you can go deep into corners that traditional equipment cannot reach, eliminate static electricity accurately and silently, and protect high-value components and product quality throughout the process.

No airflow interference, accurate neutralization of static electricity

The windless static eliminator generates ions through a high-voltage electric field, and can accurately neutralize static electricity on the surface of an object without relying on airflow. Compared with the traditional static eliminator, its biggest advantage is that it completely abandons the way of transmitting ions by compressed air or fan, thus fundamentally avoiding the risk of secondary pollution such as dust and particle scattering caused by airflow disturbance. This feature enables it to truly achieve zero-interference electrostatic protection for precision components, lightweight materials and sensitive environments in scenarios that require extremely high cleanliness.

画板 3
画板 10

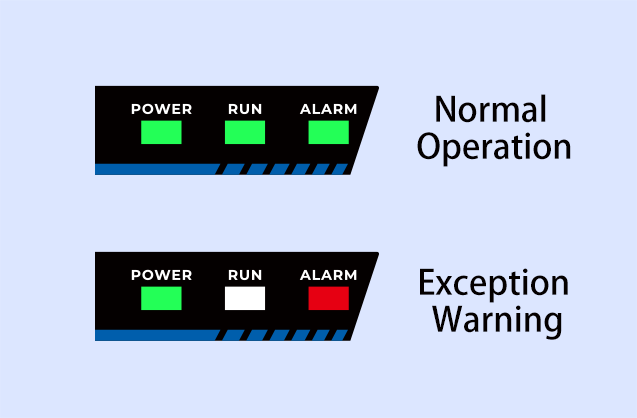

Working status, at a glance

The device is equipped with intelligent LED indicators to provide intuitive status monitoring. Real-time feedback on operation, standby or abnormality ensures that you can grasp the working conditions of the equipment instantly. This 1 the design can effectively avoid the electrostatic protection blind area caused by abnormal equipment, so as to ensure the continuity and stability of key processes such as chip manufacturing and precision assembly, which is an important part of reliable production.

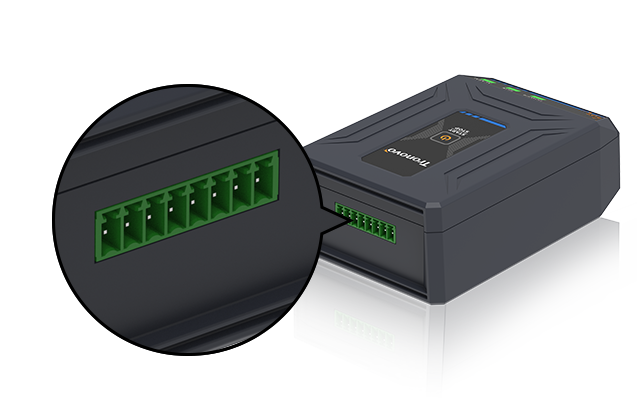

Seamless integration, intelligent interconnection

The equipment supports standard PLC control and RS485 communication protocol, is designed for automated production lines, and can be easily connected to existing industrial networks. Realize multi-device centralized control, status monitoring and intelligent early warning, completely integrate electrostatic management into your intelligent production system, and significantly improve the level of process automation and operational reliability.

画板 5
画板 6.png

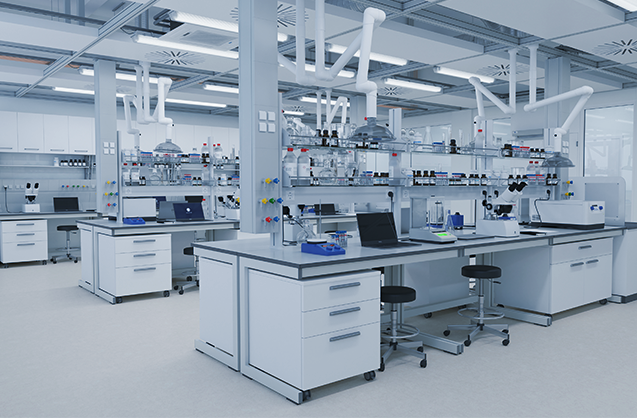

Very little working noise and simple maintenance

The wind-free static eliminator is designed for environments with extreme requirements for silence and cleanliness. It adopts a windless body, running with zero noise and zero airflow, and completely bid farewell to the buzzing interference of traditional fans. Whether it is the ultra-clean table or glove box in the laboratory of colleges and universities, the assembly of precision optical components, or the micro-assembly process between chip packages, it can quietly eliminate static electricity and guard every moment of concentration while eliminating dust. At the same time, due to the fan-free dust accumulation structure, the daily maintenance requirements are significantly reduced, which greatly saves long-term use costs.

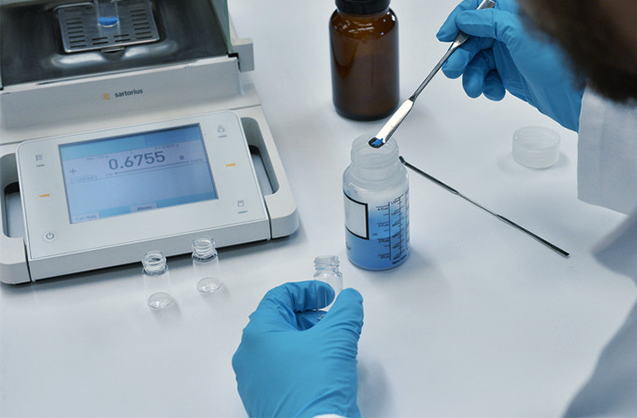

Improve weighing accuracy and stability

The static eliminator quickly eliminates 99% static electricity in the range of 10-40cm through fanless DC corona discharge technology, avoiding reading errors and instability caused by electrostatic adsorption or repulsion during weighing. Especially suitable for low humidity environment of micro sample and powder weighing, prevent sample loss, improve accuracy and repeatability. Compact, adjustable, safe and environmentally friendly, is the ideal auxiliary equipment to ensure accurate and reliable data in balance weighing.

画板 7
画板 9

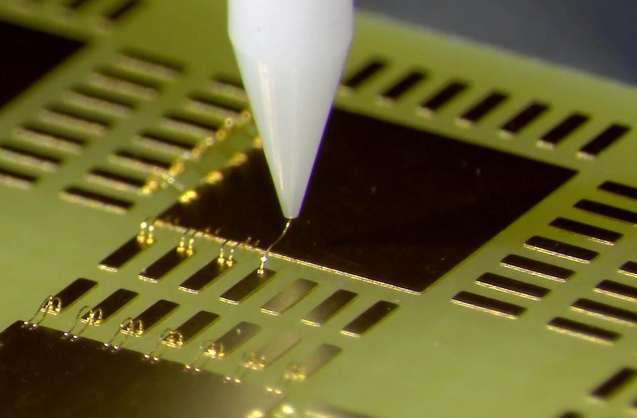

Semiconductor chip packaging wire bonding process

In the high-speed bonding process, the surface of the chip, lead frame and extremely thin gold/copper bonding wire (diameter can be as small as 25 m) is very easy to generate static electricity due to friction and high-speed movement. Although the traditional air-blowing static eliminator can neutralize static electricity, its forced airflow will become a new source of interference-airflow disturbance will directly cause the light bonding wire to drift, causing the second solder joint position to deviate, the lead wire radian misalignment, and in severe cases, short circuit or insufficient tension. At the same time, the air flow may carry particles to contaminate the pads.

Compact design, worry-free static

The ultra-small windless static eliminator designed for precision operations, the mini body is only the size of the palm, easy to integrate into the equipment or narrow space. Whether it is chip assembly, optical lens cleaning, or inside the instrument, you can go deep into corners that traditional equipment cannot reach, eliminate static electricity accurately and silently, and protect high-value components and product quality throughout the process.

画板 2.png

No airflow interference, accurate neutralization of static electricity

The windless static eliminator generates ions through a high-voltage electric field, and can accurately neutralize static electricity on the surface of an object without relying on airflow. Compared with the traditional static eliminator, its biggest advantage is that it completely abandons the way of transmitting ions by compressed air or fan, thus fundamentally avoiding the risk of secondary pollution such as dust and particle scattering caused by airflow disturbance. This feature enables it to truly achieve zero-interference electrostatic protection for precision components, lightweight materials and sensitive environments in scenarios that require extremely high cleanliness.

画板 3.png

Working status, at a glance

The device is equipped with intelligent LED indicators to provide intuitive status monitoring. Real-time feedback on operation, standby or abnormality ensures that you can grasp the working conditions of the equipment instantly. This 1 the design can effectively avoid the electrostatic protection blind area caused by abnormal equipment, so as to ensure the continuity and stability of key processes such as chip manufacturing and precision assembly, which is an important part of reliable production.

画板 10.png

Seamless integration, intelligent interconnection

The equipment supports standard PLC control and RS485 communication protocol, is designed for automated production lines, and can be easily connected to existing industrial networks. Realize multi-device centralized control, status monitoring and intelligent early warning, completely integrate electrostatic management into your intelligent production system, and significantly improve the level of process automation and operational reliability.

画板 5.png

Very little working noise and simple maintenance

The wind-free static eliminator is designed for environments with extreme requirements for silence and cleanliness. It adopts a windless body, running with zero noise and zero airflow, and completely bid farewell to the buzzing interference of traditional fans. Whether it is the ultra-clean table or glove box in the laboratory of colleges and universities, the assembly of precision optical components, or the micro-assembly process between chip packages, it can quietly eliminate static electricity and guard every moment of concentration while eliminating dust. At the same time, due to the fan-free dust accumulation structure, the daily maintenance requirements are significantly reduced, which greatly saves long-term use costs.

画板 6.png

Improve weighing accuracy and stability

The static eliminator quickly eliminates 99% static electricity in the range of 10-40cm through fanless DC corona discharge technology, avoiding reading errors and instability caused by electrostatic adsorption or repulsion during weighing. Especially suitable for low humidity environment of micro sample and powder weighing, prevent sample loss, improve accuracy and repeatability. Compact, adjustable, safe and environmentally friendly, is the ideal auxiliary equipment to ensure accurate and reliable data in balance weighing.

画板 7.png

Semiconductor chip packaging wire bonding process

{}                    In the high-speed bonding process, the surface of the chip, lead frame and extremely thin gold/copper bonding wire (diameter can be as small as 25 m) is very easy to generate static electricity due to friction and high-speed movement. Although the traditional air-blowing static eliminator can neutralize static electricity, its forced airflow will become a new source of interference-airflow disturbance will directly cause the light bonding wire to drift, causing the second solder joint position to deviate, the lead wire radian misalignment, and in severe cases, short circuit or insufficient tension. At the same time, the air flow may carry particles to contaminate the pads.

画板 9.png
