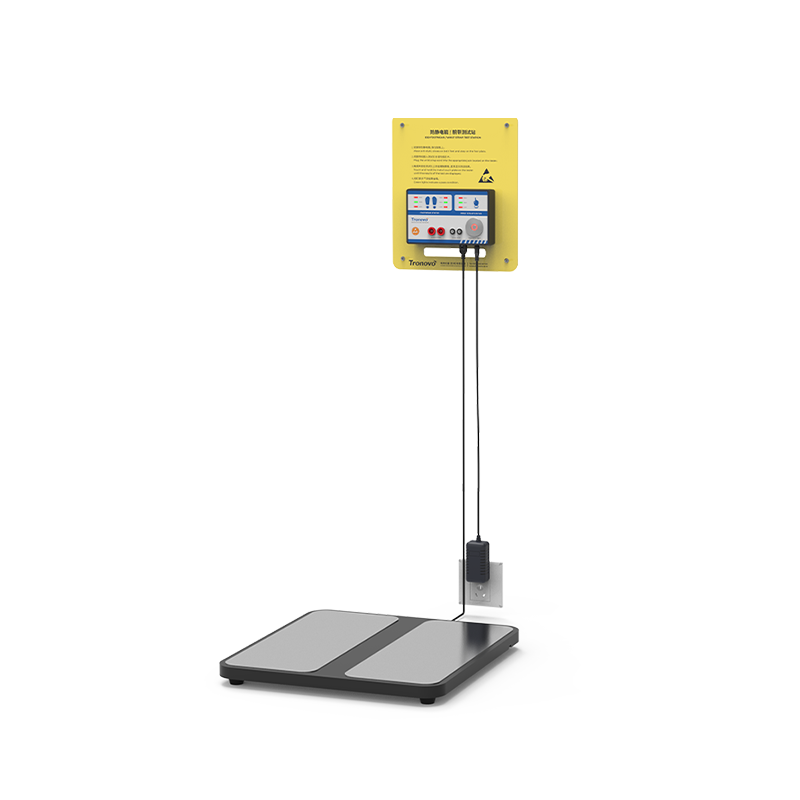

MP341A Series Wirst Strap/Foot Ground Tester(wall-mounted)
MP341A Series Wirst Strap/Foot Ground Tester(wall-mounted)

MP341A Series Wirst Strap/Foot Ground Tester(wall-mounted)

The multi-functional human body comprehensive tester can test single-wire, double-wire wrist straps and work shoes, installed at the EPA(electrostatic control area)inlet, and accurately test whether the resistance of the human body through the wrist strap and the grounding of work shoes is qualified, prevent electrostatic damage, and make your working environment safer and more reliable!
Performance
❯ Keep your tests accurate and extend the life of your tester
❯ Freely configure the control scope of wristbands and electrostatic footwear
❯ Automatically discharges static electricityfrom the human body during measurement
❯ Relays control electronic door locks, lights,puzzers,or air shower doors
❯ Position the test button and indicate the operating status
❯ Operators are allowed to test anti-static shoes while wearing gloves or finger covers
❯ It can be installed on turnstiles, floor standing or wall mounting
❯ The sound intensity is appropriate when the alarm is generated
❯ Indicate the wrist strap, left shoe,and right shoe resistance values high/pass/low
❯ Dual ports are provided to increase the life of the plug and dial
Key Features
❯ Solid-state touch test buttons
❯ The DIP sets the test range
❯ Built-in electrostatic discharge
❯ Control for turnstiles or automatic doors
❯ Background light reminds the indication
❯ Supports gloved measurements
❯ Multi-scenario installation
❯ Adjustable alarm sound volume
❯ 3 sets LED status indicators
❯ Supports both single- and double-wire wrist strap measurements
Downloads
❯ DF261R DF261P-Tronovo Automatic cleaning HF lonizing Air Blower

You may also be interested in these products

Product Parameter

  • Model
  • MP341A
  • Single/Double wire wrist range
  • Low limit:750KΩ & Max limit: 10MΩ/35MΩ
  • Shoes range
  • Low limit: 100kΩ/750KΩ & Max limit: 35MΩ/100MΩ/500MΩ/1GΩ
  • Power
  • 100~240V AC to 12V DC/2A, cable length 1.5m
  • Test voltage
  • 9V DC (Open Circuit)
  • Accuracy
  • ±10% or ±20% (500M or 1GΩ set)
  • Relay output
  • 1A@30VDC
  • Opera temp
  • 5~30°C, 21~30°C (500M or 1GΩ set)
  • Humidity
  • 80% or <50% max. (500M or 1GΩ set)
  • Test meter size
  • 160x100x32mm, Weight: 0.3kG
  • Footrest size
  • 400x420x35mm, Weight: 5.3KG
  • Net weight
  • The main body is about 6.8 kg
  • Warranty
  • One-year

Product Details

75

Test scoping setting

The upper limit of the bracelet and the upper and lower limits of anti-static shoes can be set through the DIP switch on the left side of the device according to the control conditions.

ANSI/ESD S20.20-2014 Certification Requirements
EPA Electrostatic Discharge Protection Zone, Personnel Grounding RequirementsProduct Approval Requirements Limits: Human Shoes Ground System＜1.0×109ohms； Test Method:：ANSI/ESD STM97.1

IEC 61340-5-1-2016 Certification Requirements
EPA Electrostatic Discharge Protection Zone, Personnel Grounding Requirements Approved Requirements Limits: Human Shoes Ground System＜1.0×108ohms； Test Method:：IEC 61340-5-1

Practical, but not simple ...

The panel is clearly designed and easy to read, showing low, high, and pass LEDs with large touch buttons to release static electricity and not easily damaged, and an audible alarm will sound when abnormal.

76
77

Two-legged test board

According to the requirements of the static management code, each foot needs to be measured, and the pedal is designed independently of the feet, and the left shoe and right shoe are completely tested at one time.

The two-foot pedal has a split foot pedal, a device that allows for independent verification of both feet at the same time. If many operators need to check their personnel grounding equipment, using a two-foot test pedal can save a lot of time.

Dual-wire wrist straps can be tested

Before entering the electrostatic protection area (EPA), the anti-static wrist strap is tested using a comprehensive body tester to ensure that it is working properly. MP341 can   test single wire wrist strap / double wire wrist strap

78
79

No mechanical wear and durability

The test key uses an inner/outer metal conductor, and the test is started by holding down the finger to connect the inner/outer conductor. Solid-state test keys can be used to avoid mechanical damage.

Wear gloves or finger sleeves for the test

If you wear gloves or finger covers, the test current cannot be started due to the high resistance, and an infrared induction grip is required. * When mode only, work shoe test is supported.

80
81

Turnstile installation

ESD access control systems are compulsory, and employees must pass the ESD test before entering the workshop before they are allowed to enter.

Supporting models:
MP321E Single loop bracelet / access control function
MP341E Single and double loop bracelet / access control function
* Pictures shown are MP341E

Dry node control signals

Relay terminals can be integrated with electronic door locks, turnstiles, lights, buzzers, etc. This would be an advantage if the company only wanted to let people in after they had passed the test.

Dry contact terminals：
 Contacts 1 and 2 are normally open during standby; 2 and is normally closed. The status of each contact remains unchanged if the test fails. When the test is passed, 1 and 2 are closed; 2 and 3 are disconnected.
Relay Rated Current:
 When connecting the three-roller turnstile or other electronic locks, be careful that the external current does not exceed the rated range, otherwise the relay may burn out.

84
