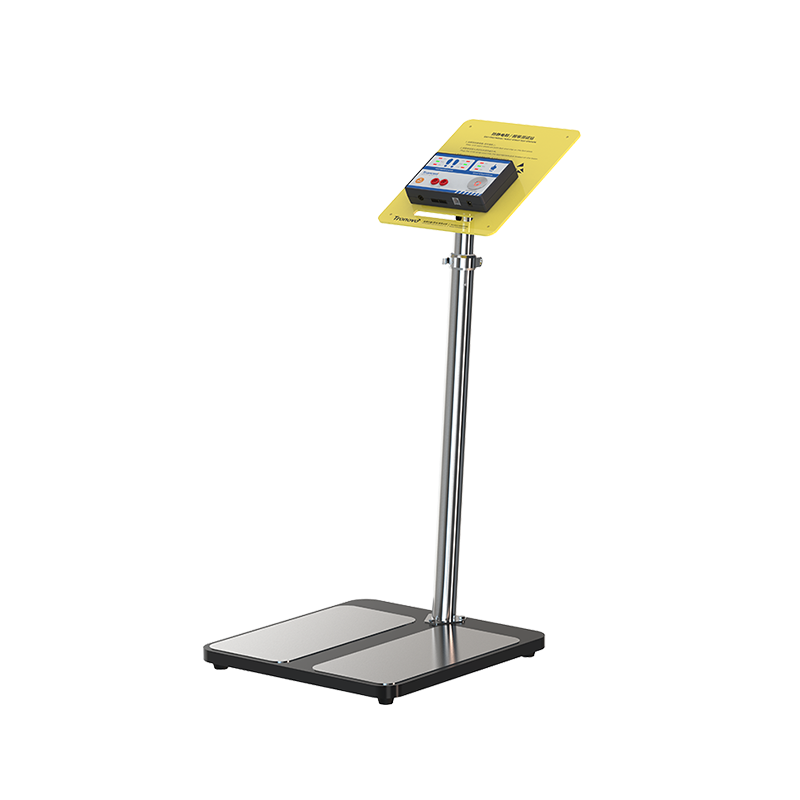

MP321C Wrist & Foot Ground Tester(Vertical)
MP321C Wrist & Foot Ground Tester(Vertical)

MP321C Wrist & Foot Ground Tester(Vertical)

According to IEC 61340-5-1 (European standard), ANSI/ESD S20.20 (American standard), SJ/T 10694 (electronic industry standard), and GJB 3007A (military standard), the Human Body Comprehensive Tester conducts accurate testing of the wrist strap and anti-static shoe (foot ring) grounding for personnel in an Electrostatic Discharge Protection Zone (EPA).
Performance
❯ Keep your tests accurate and extend the life of your tester
❯ Freely configure the control scope of wristbands and electrostatic footwear
❯ Automatically discharges static electricity from the human body during measurement
❯ Relays control electronic door locks, lights,buzzers, or air shower doors
❯ Position the test button and indicate the operating status
❯ Operators are allowed to test anti-static shoes while wearing gloves or finger covers
❯ It can be installed on turnstiles, floor standing or wall mounting
❯ The sound intensity is appropriate when the alarm is generated
❯ Indicate the wrist strap, left shoe, and right shoe resistance values high/pass/low
Key Features
❯ Solid-state touch test buttons
❯ The DlP sets the test range
❯ Built-in electrostatic discharge
❯ Control signals for turnstiles or automatic doors
❯ Background light reminds the indication function
❯ Supports gloved measurements
❯ Multi-scenario installation
❯ Adjustable alarm sound volume
❯ 3 sets of high-brightness LED status indicators
Downloads

You may also be interested in these products

Product Parameter

  • Model
  • MP321C
  • Single wire range
  • Low limit:750KΩ & Max limit: 10MΩ/35MΩ
  • Shoes range
  • Low limit: 100kΩ/750KΩ & Max limit: 35MΩ/100MΩ/500MΩ/1GΩ
  • Power
  • 100-240V AC to 12V DC/2A, cable 1.5m
  • Test voltage
  • 9V DC (Open Circuit)
  • Accuracy
  • ±10% or ±20% (500M or 1GΩ set)
  • Relay output
  • 1A@30VDC
  • Operating temp
  • 5-30°C,21~30°C(500M or 1GΩ set)
  • Humidity
  • 80% or <50% max. (500M or 1GΩ set)
  • Test meter size
  • 160x100x32mm, weight: 0.3KG
  • Footrest size
  • 400x420x35mm, weight: 5.3kG
  • Net weight
  • The main body is about 6 kg
  • Warranty
  • One-year

Product Details

wrist strap and footwear tester
