MP342E Anti_static Access Control System
MP342E Anti_static Access Control System

MP342E Anti_static Access Control System

According to IEC 61340-5-1 (European standard), ANSI/ESD S20.20 (American standard), the human body comprehensive tester accurately tests the wrist strap and anti-static shoe (foot ring) grounding of ESD protection zone (EPA) personnel.
Performance
❯ Keep your tests accurate and extend the life of your tester
❯ Indicate the wrist strap, left shoe, and right shoe resistance values high/pass/low
❯ Freely configure the control scope of wristbands and electrostatic footwear
❯ Dual ports are provided to increase the life of the plug and dial
Key Features
❯ Solid-state touch test buttons
❯ 3 sets of high-brightness LED status indicators
❯ The DlP sets the test range
❯ Support single and double wire wrist strap measurement
Downloads

You may also be interested in these products

Product Parameter

Product Details

70

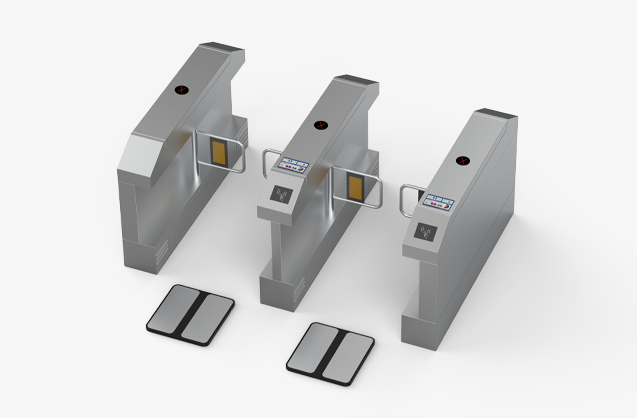

Fingerprint wing gate electrostatic access control case

Fingerprint wing gate electrostatic access control case

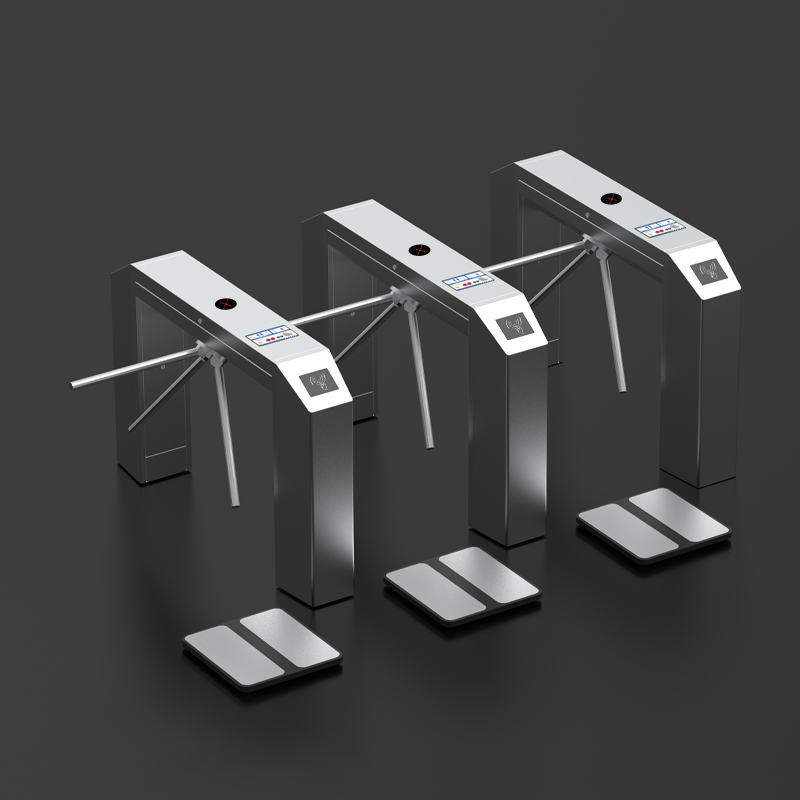

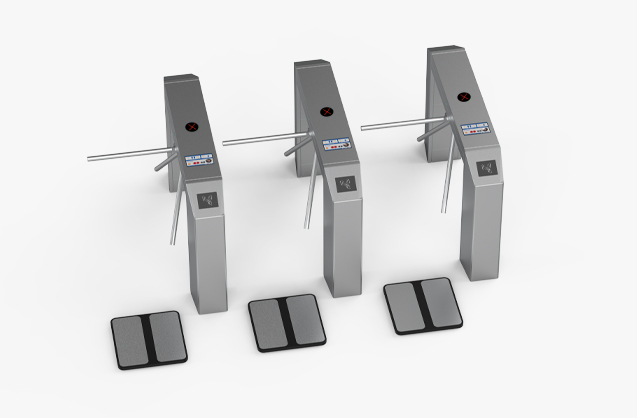

Three-roller turnstile electrostatic access control case

Three-roller turnstile electrostatic access control case

71
72

Cargo air shower room access control case

Cargo air shower room access control

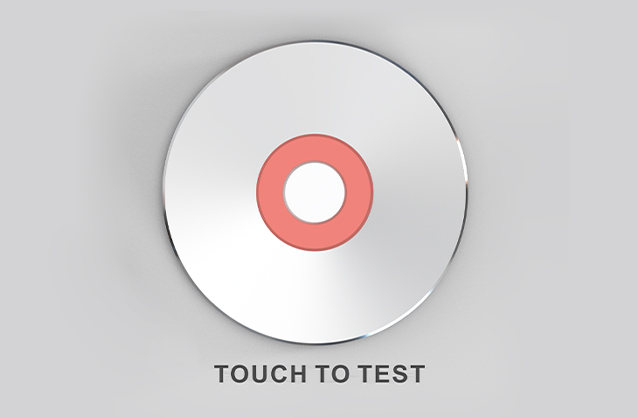

No mechanical wear and durability

The test key uses an inner/outer metal conductor, and the test is started by holding down the finger to connect the inner/outer conductor. Solid-state test keys can be used to avoid mechanical damage.

73
74

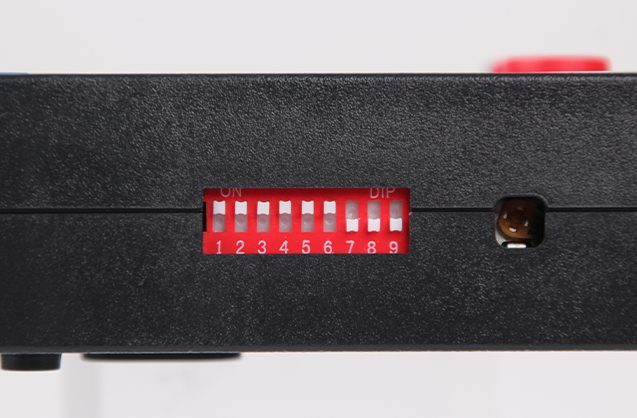

Test scoping setting

The upper limit of the bracelet and the upper and lower limits of anti-static shoes can be set through the DIP switch on the left side of the device according to the control conditions.

ANSI/ESD S20.20-2014 certification requirements
EPA Electrostatic Discharge Protection Zone, Personnel Grounding RequirementsProduct Approval Requirements Limits: Human Shoes Ground System＜1.0×109ohms； Test Method:：ANSI/ESD STM97.1

IEC 61340-5-1-2016 Certification Requirements
EPA Electrostatic Discharge Protection Zone, Personnel Grounding Requirements Approved Requirements Limits: Human Shoes Ground System＜1.0×108ohms； Test Method:：IEC 61340-5-1
