MC137   MC138  Charged Plate Monitor
MC137   MC138  Charged Plate Monitor
MC137   MC138  Charged Plate Monitor
MC137   MC138  Charged Plate Monitor
MC137   MC138  Charged Plate Monitor
MC137   MC138  Charged Plate Monitor
MC137   MC138  Charged Plate Monitor
MC137   MC138  Charged Plate Monitor
MC137   MC138  Charged Plate Monitor
MC137   MC138  Charged Plate Monitor

MC137   MC138  Charged Plate Monitor

0

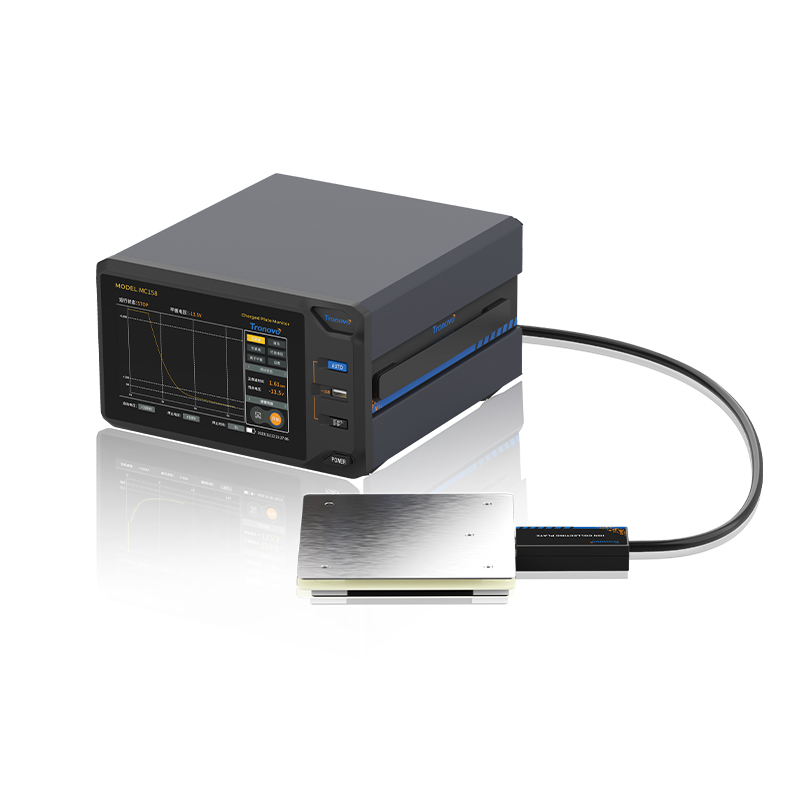

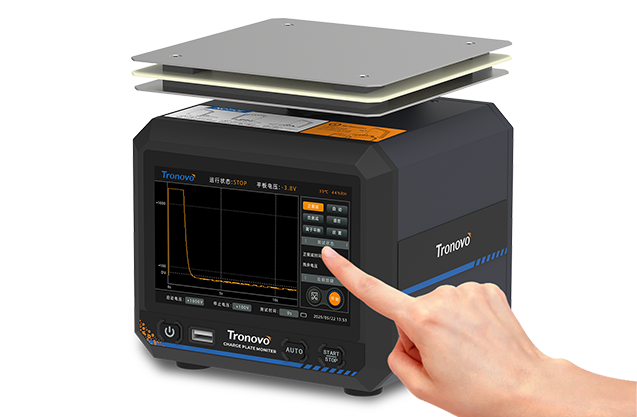

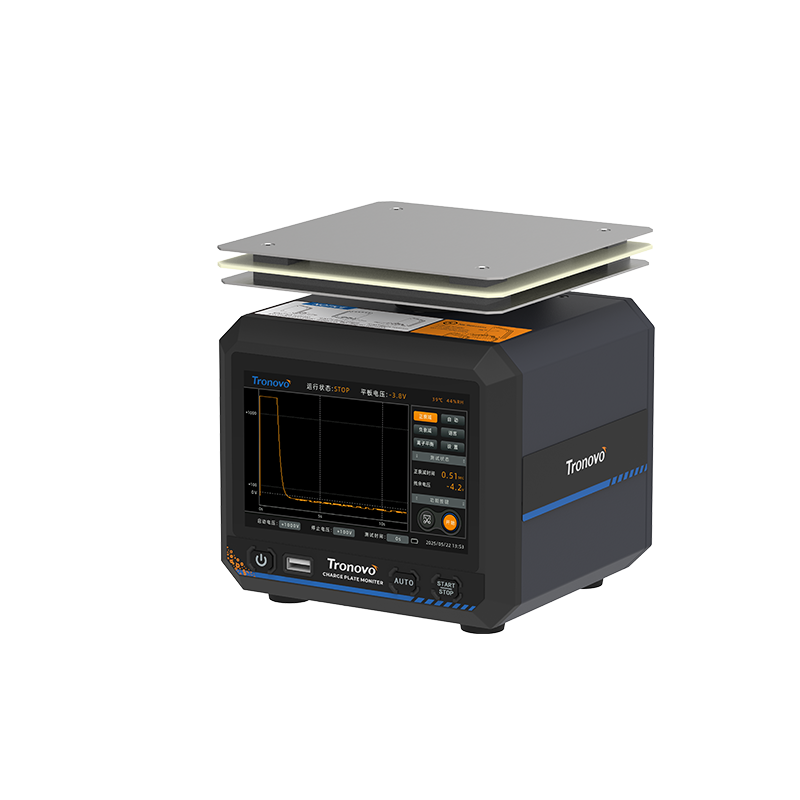

Charging board monitor is a high-precision test equipment specialized in evaluating the performance of air ionizers, which complies with the international standards of IEC61340-5-1 and ANSI/ESD STM3.1, and is suitable for the measurements of a variety of ionizers, such as AC, pulsed AC, pulsed DC, and steady state DC. Its 5-inch touch screen is easy to operate, supports data display on the same screen, and is equipped with temperature and humidity synchronization monitoring function to ensure accurate and controllable testing environment. The unique detachable test plate design is suitable for testing in small spaces and inside process equipment to avoid interference. In addition, the device has a 0.1V high resolution, 80Hz broadband measurement capability, can accurately detect high-frequency AC ion fan performance, and supports one-key screenshot, U disk export, USB connection and other functions, with a large-capacity lithium battery, to meet the needs of long-time use without power.
Performance
❯ High accuracy/wide range measurement
❯ measurement of temperature and humidity
❯ Pass determination and screenshot functions
❯ Built-in large-capacity lithium battery
Key Features
❯ The 7-inch high-definition touch screen screen is easy to operate
❯ Test different types of ionizers
❯ Complies with lEC and ANSl standard test methods
Downloads
❯ MC158-Tronovo Charged Plate Monitor

You may also be interested in these products

Product Parameter

  • Product Model
  • MC137 / MC138
  • Bandwidth
  • DC to 80 Hz (-3dB)
  • Display Screen
  • 7-inch multi-touch capacitive screen, display resolution 1024x600
  • Voltage Range
  • 0~±1150 VDC or peak AC
  • Voltage Accuracy
  • 0~100V:±S3V / 100~1000V:≤±2.5%
  • Zero Stability
  • ≤6V/minute (no incident ion current, plate voltage drift with time)
  • Timing Range
  • 0.1~180s
  • Timing Resolution
  • 0.01s
  • Ion collection plate
  • 150x150 mm (in accordance with the requirements of ANSI/ESD STM3.1), cable length: 2 meters coaxial line
  • Instrument interface
  • USB Host, USB Device, LAN optiona
  • Battery operating time
  • Built-in lithium battery, continuous operation time more than 5 hours
  • Power supply
  • Power supply 12VDC, 2A, 2.1mm jack charger
  • Operating Environment
  • 0~+50°C, 10~80%RH (no condensation)
  • Volume / Weight
  • 245x145x265mm / Body approx. 2.8kg (main unit with plate)
  • Warranty
  • Two-year limited warranty

Product Details

1

Charging Pad Monitor | ANSI/ESD S20.20:2021 Compliant

The Charging Pad Monitor instrument is able to measure the time taken for static electricity to dissipate, as well as the performance of finished static electricity dissipation. It conforms to international standards such as IEC 61340-2-1 and SAE J1645. It can be used for the manufacture of electronic components and for the testing of static electricity dissipation materials, and it can also be used for ESD protection certification.

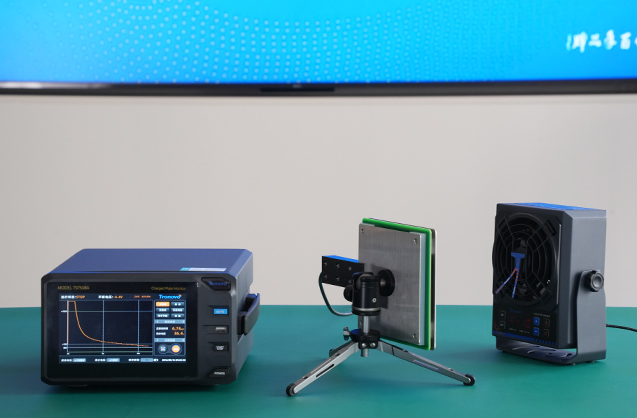

Professional Ion Fan Tester | ESD TR53 Compliant | Precise Static Elimination Testing

The Charging Pad Monitor both the time taken for static electricity to dissipate and the effectiveness of the finished suppression process. It meets international standards such as IEC 61340-2-1 and SAE J1645. It is used in the manufacture of electronics and for testing static electricity suppression materials and ESD protection certification.

画板 2.png
画板 3.png

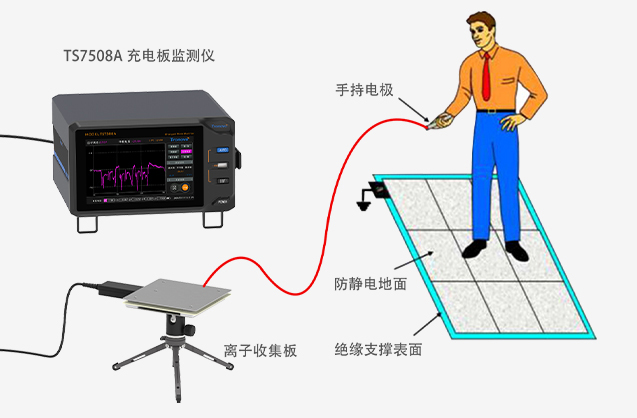

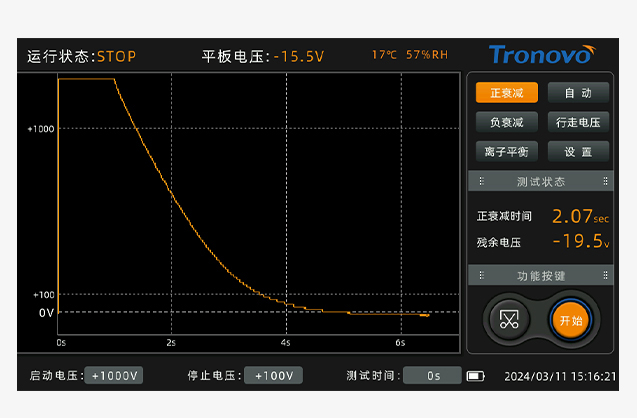

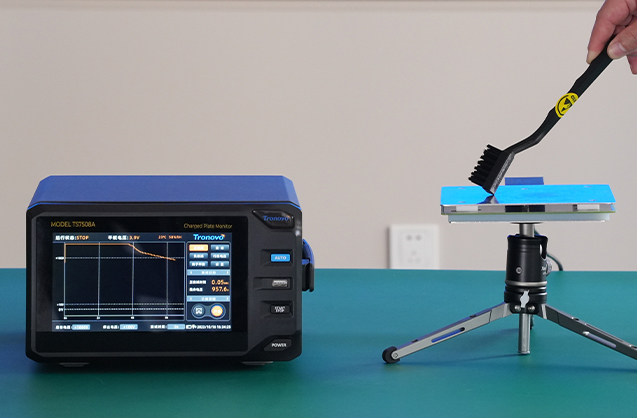

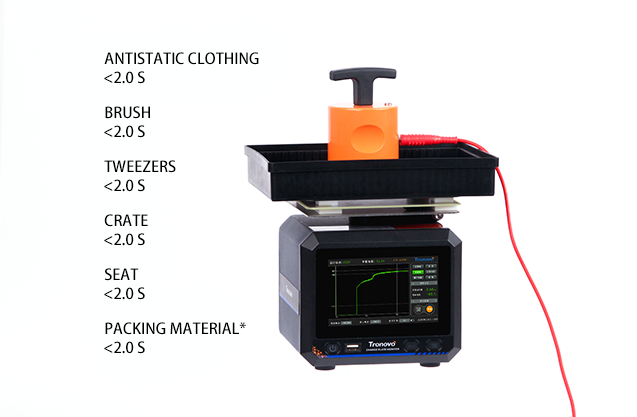

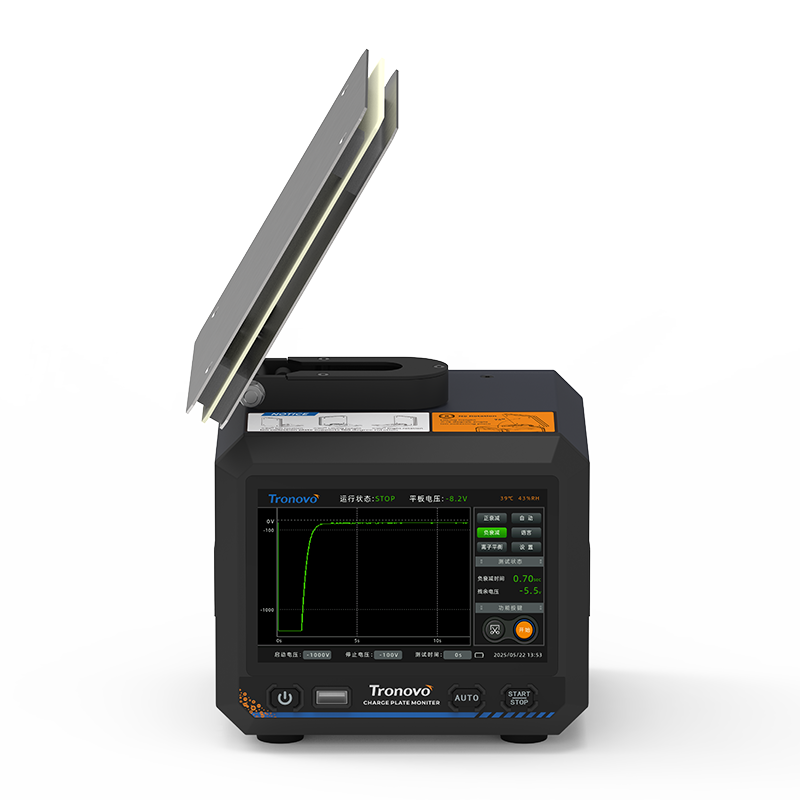

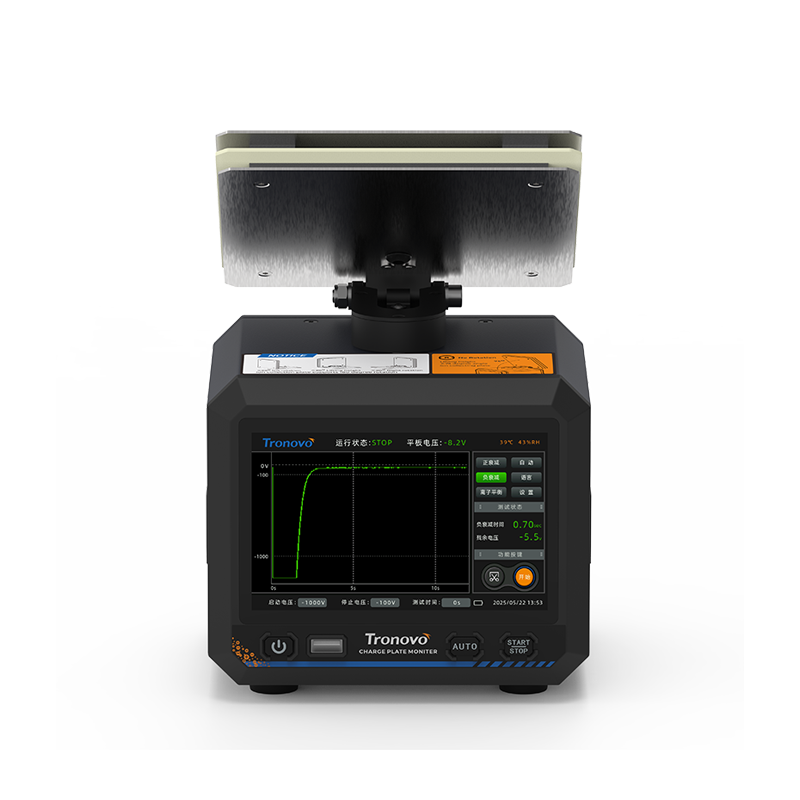

Material Static Dissipation Test

The Charging Board Monitor is designed for testing the static dissipation time of materials and the static attenuation performance of finished products, in accordance with IEC 61340-2-1, SAE J1645 and other international standards.
It provides high-precision measurements and supports static decay curve analysis. Data can be exported and it is suitable for anti-static materials, electronic components and other scenarios.

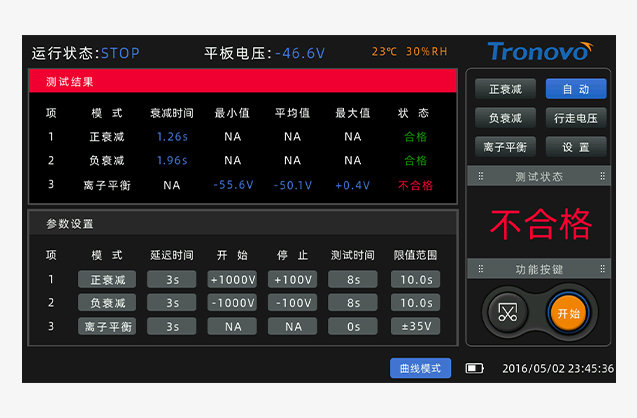

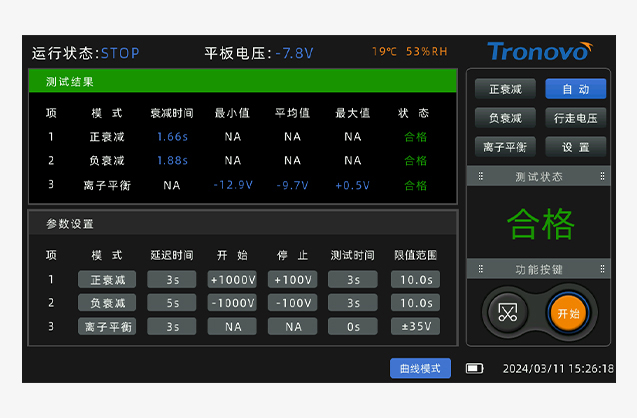

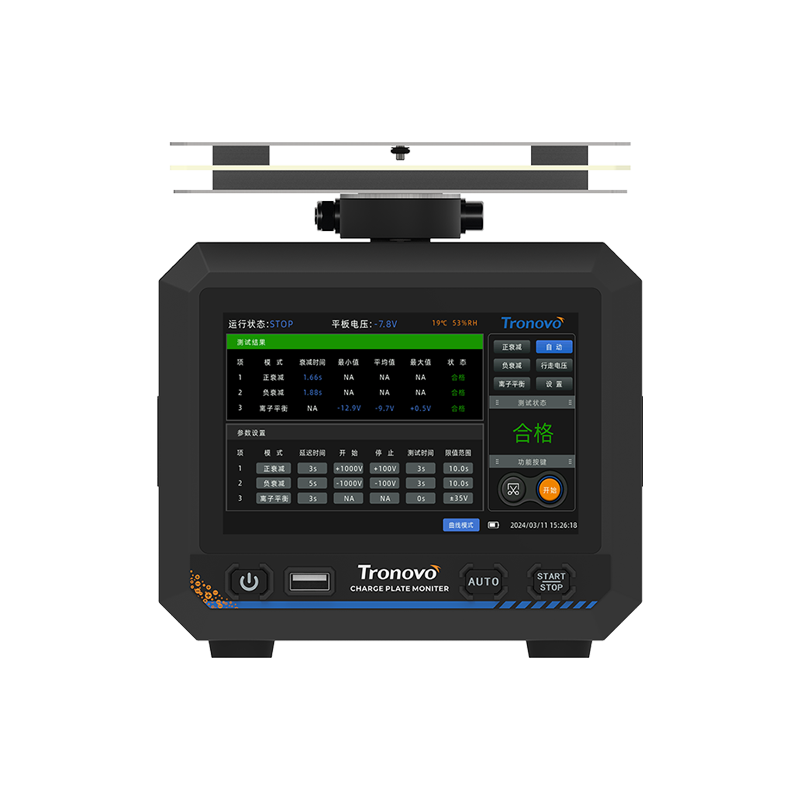

“5-inch” touch screen HD display

Simultaneous measurement of results + temperature and humidity
Humanized interactive experience, all data can be displayed on the same screen

画板 6.png
画板 6.png

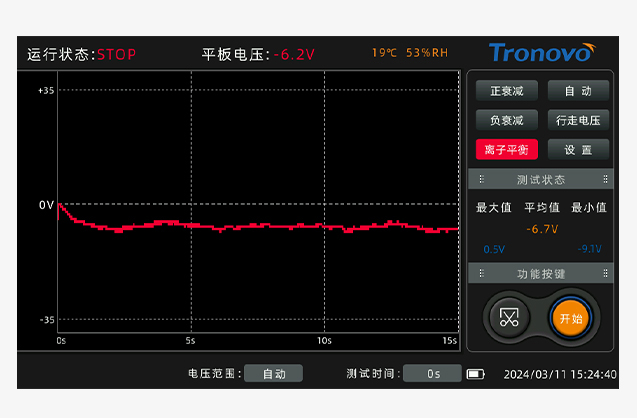

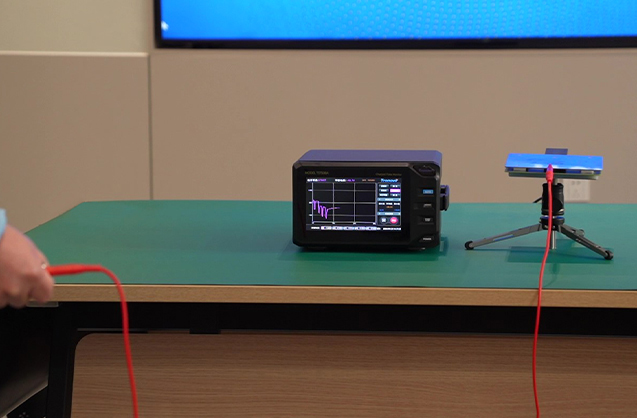

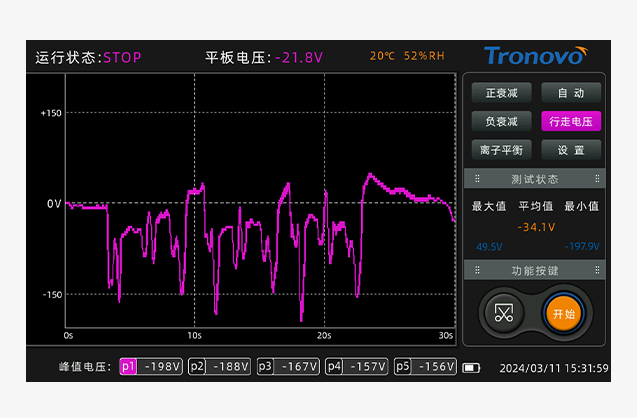

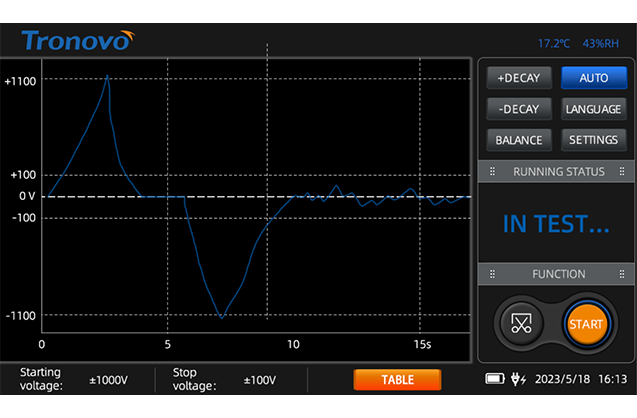

Waveform Observation Intuitive Display

Ion Balance Tester accurately detects ion fan balance, displays high-precision voltage fluctuation curves in real time, supports positive and negative ion balance analysis, and visualizes peak voltage (Peak value). Conforms to ANSI/ESD S20.20 standard to ensure electrostatic protection compliance.

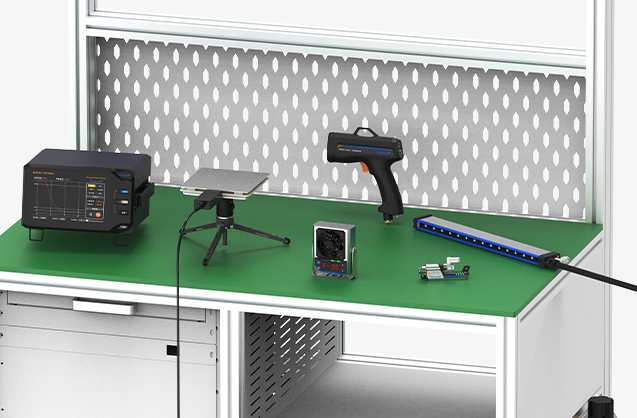

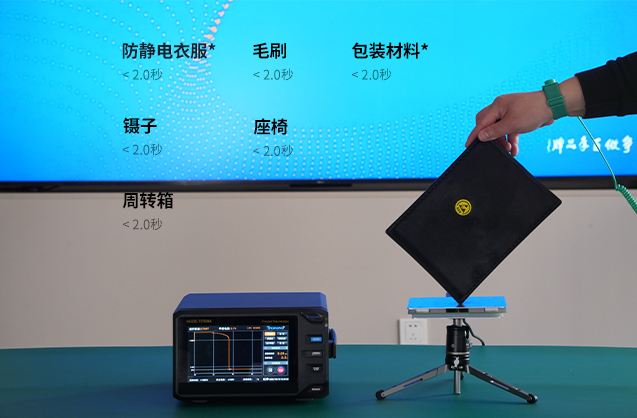

Anti-static materials/supplies performance testing

Charging board monitor accurately measure the material static dissipation time and finished product static attenuation performance, in line with IEC 61340-2-1, SAE J1645 and other international standards. Applicable to electronic manufacturing, anti-static material testing, help ESD protection certification.

画板 6.png
画板 6.png

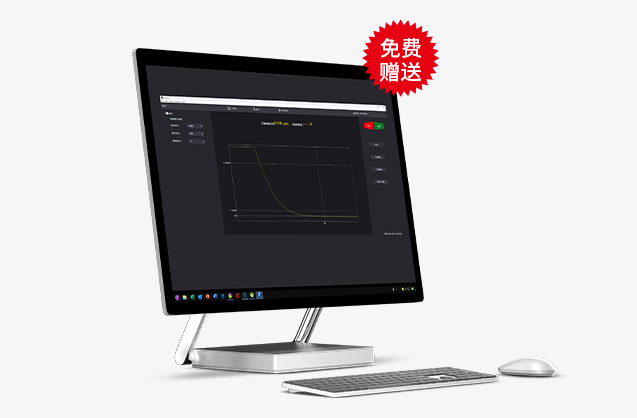

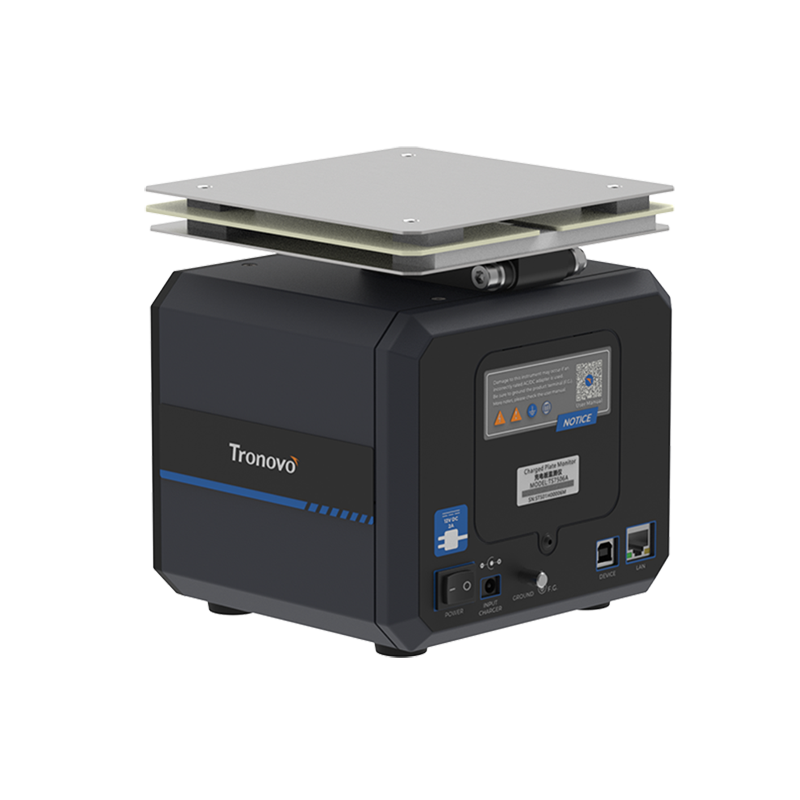

Support upper computer software

The Ion Balance Tester supports a connection to upper computer software and real-time data synchronisation via USB. It is equipped with a one-key screenshot storage function (direct storage to a USB stick) and a simple operating interface. The test and archiving process is completed in three steps.
