MC158 Charged Plate Monitor
MC158 Charged Plate Monitor

MC158 Charged Plate Monitor

0

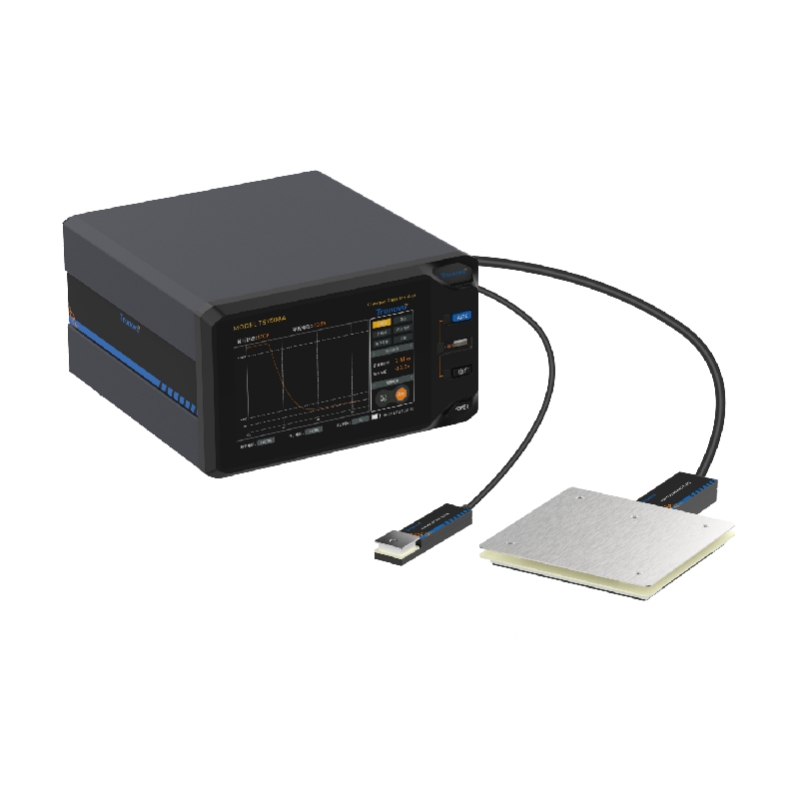

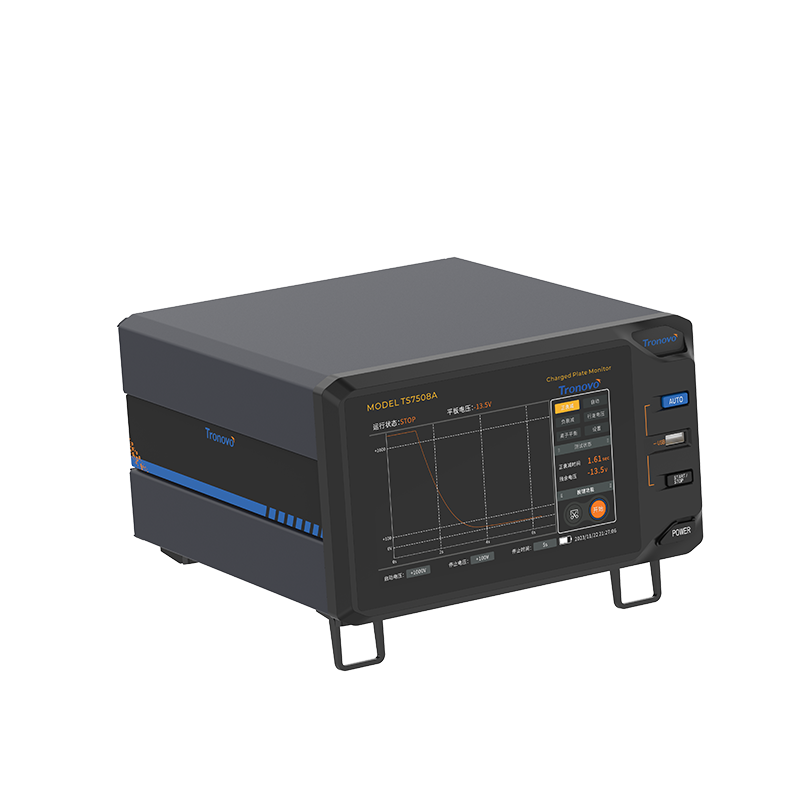

The Charge Plate Monitor is a professional device used to evaluate the performance of air ionisers. With a 7-inch touch screen for straightforward operation and an intuitive display of data, it complies with international standards (IEC61340-5-1 and ANSI/ESD STM3.1). Its high-precision measurements (0.1 V resolution, DC–80 Hz) enable accurate testing of AC/DC static eliminators and are particularly well-suited to testing high-frequency AC ionisers. The detachable test plate design is ideal for confined spaces and internal testing, minimising interference. Built-in temperature and humidity sensors monitor environmental impact and support automatic determination (PASS), as well as data export via USB/U disk. The long-lasting lithium battery provides a reliable power supply. The Charge Plate Monitor is the ideal tool for electrostatic protection, ion balance testing, cleanroom monitoring and other applications, ensuring efficient, reliable performance evaluation of ionisers.
Performance
❯ High accuracy/wide range measurement
❯ measurement of temperature and humidity
❯ Pass determination and screenshot functions
❯ Built-in large-capacity lithium battery
Key Features
❯ The 7-inch high-definition touch screen screen is easy to operate
❯ Test different types of ionizers
❯ Complies with lEC and ANSl standard test methods
Downloads
❯ MC158-Tronovo Charged Plate Monitor

You may also be interested in these products

Product Parameter

  • Product Model
  • MC158
  • Bandwidth
  • DC to 80 Hz (-3dB)
  • Display Screen
  • 7-inch multi-touch capacitive screen, display resolution 1024x600
  • Voltage Range
  • 0~±1150 VDC or peak AC
  • Voltage Accuracy
  • 0~100V:±S3V / 100~1000V:≤±2.5%
  • Zero Stability
  • ≤6V/minute (no incident ion current, plate voltage drift with time)
  • Timing Range
  • 0.1~180s
  • Timing Resolution
  • 0.01s
  • Ion collection plate
  • 150x150 mm (in accordance with the requirements of ANSI/ESD STM3.1), cable length: 2 meters coaxial line
  • Color curve display
  • ✔
  • Automatic judgment function
  • ✔
  • Human body walking static voltage test
  • ✘
  • Upper computer software
  • ✘
  • Instrument interface
  • USB Host, USB Device, LAN optiona
  • Battery operating time
  • Built-in lithium battery, continuous operation time more than 5 hours
  • Power supply
  • Power supply 12VDC, 2A, 2.1mm jack charger
  • Operating Environment
  • 0~+50°C, 10~80%RH (no condensation)
  • Volume / Weight
  • 245x145x265mm / Body approx. 2.8kg (main unit with plate)
  • Warranty
  • Two-year limited warranty

Product Details


Professional Ionizer Tester | ESD TR53 Compliant | Precision Static Dissipation Detection

Charging pad monitor compliant with ANSI/ESD S20.20:2021. Precision Static Protection: Meets the ANSI/ESD S20.20:2021 standard for EPA antistatic zones. Supports a pulsed DC ionisation system and offset voltage peak (peak) detection from -250 V to +250 V. Complies with ANSI/ESD S20.20. Related terms: Table 3, Product Introduction and Compliance Verification Ionizer Offset Voltage (Peak/Peak): -35 V < Balance Voltage < 35 V.

Professional Ionizer Tester | ESD TR53 Compliant | Precision Static Dissipation Detection

This Charging Pad Monitor (Ion Fan Tester) verifies the performance of ion fans, ion guns, ion rods, ion nozzles, static eliminators, negative ion generators and other equipment, meeting ESD TR53 requirements. It accurately measures dissipation time (user-def.) and equilibrium voltage (peak), ensuring test results meet the -35 V industry standard. This high-precision static dissipation tester is ideal for production line compliance, quality control and R&D testing in electronics, semiconductors, and medical industries.

58
59

Human walking voltage test

Conforms to IEC61340-4-5 and ANSI/ESD STM97.2 standards, designed for human walking voltage testing, accurately records peak voltage (Peak value) and ensures EPA anti-static area compliance.
Dynamic static monitoring: real-time detection of static voltage peaks generated by the human body walking, support data storage and analysis, suitable for electronics manufacturing, semiconductor and other sensitive environments
Standardized testing: meet ANSI/ESD S20.20 certification requirements, adaptable to anti-static flooring and footwear system testing.

Static dissipation test of materials

Charging board monitor accurately measure the material static dissipation time and finished product static attenuation performance, in line with IEC 61340-2-1, SAE J1645 and other international standards. It is suitable for electronic manufacturing, anti-static material testing, and helps ESD protection certification.

60
20250530173407

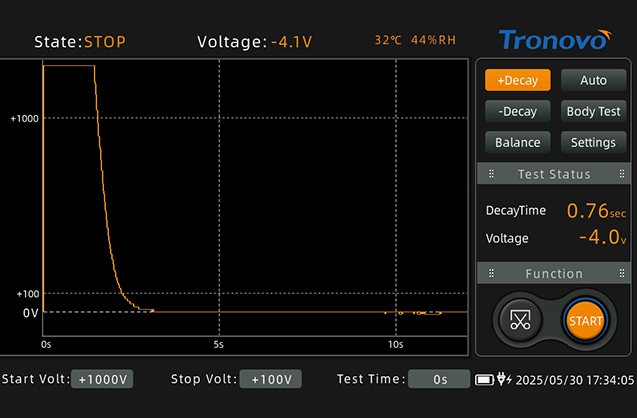

Decay time measurement

The charging plate monitor supports positive and negative decay time testing, programmable start/stop voltage setting (±1000V range), accurate measurement of material static dissipation performance, in line with IEC 61340-2-1, SAE J1645 and other international standards.
Intelligent voltage control: customized test thresholds, adapted to anti-static materials, electronic components and other scenarios, the data can be exported and analyzed through the supporting software, to help the EPA anti-static area compliance verification.

Ion balance measurement

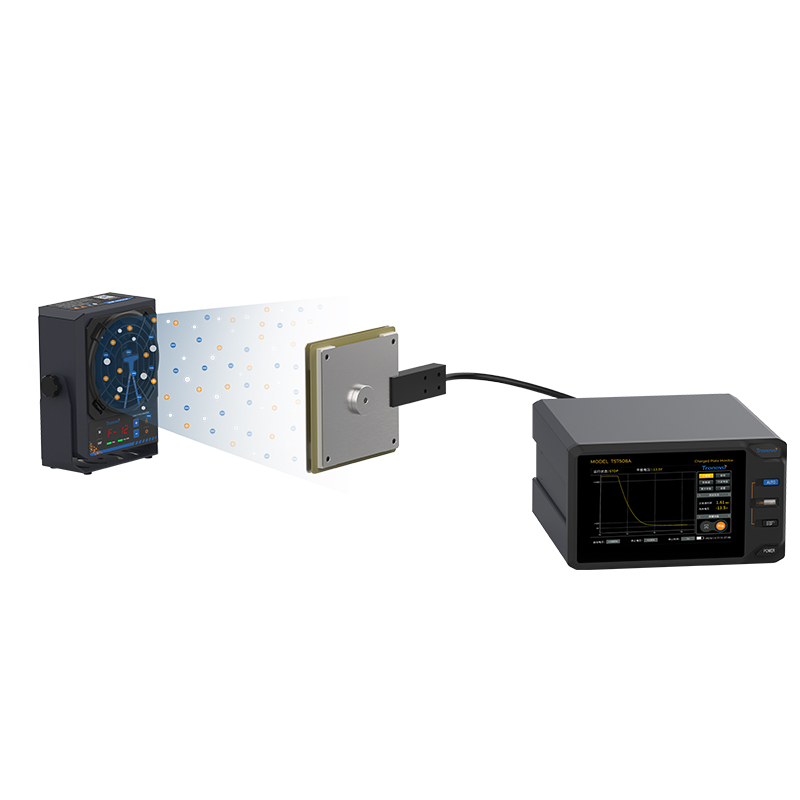

Ion balance tester professional testing ion fan balance, real-time display voltage fluctuation curve, support positive and negative ion balance analysis, in line with ANSI/ESD S20.20 standard. Support peak (Peak) detection and data screenshot storage.

20250530173536
20250530173641

Automatic mode measurements

Ion balance tester supports fully automatic measurement mode, can complete the positive/negative decay time and ion balance of individual or joint testing with one key, can automatically determine the results and prompt the alarm for exceeding the standard. Intelligent threshold setting: programmable start/stop voltage and upper/lower limit thresholds, suitable for calibration of EPA anti-static zones of ion fans, wind rods and other equipment.

Abnormal alarm status

Charging board monitor supports automatic testing and abnormal status alarm, user can customize the voltage limit range, real-time determination of the test results (PASS/FAIL), and through the LCD screen intuitive display of the conclusion. Complies with IEC61340 standard, suitable for calibration of electrostatic protection equipment and production line quality control scenarios.

20250530173745
画板 6

Support host computer software

The ion balance tester supports the upper computer software connection, through the U disk one-key screenshot storage test data (including voltage curve and decay time), the operation is simple and convenient, 5 minutes to get started.
