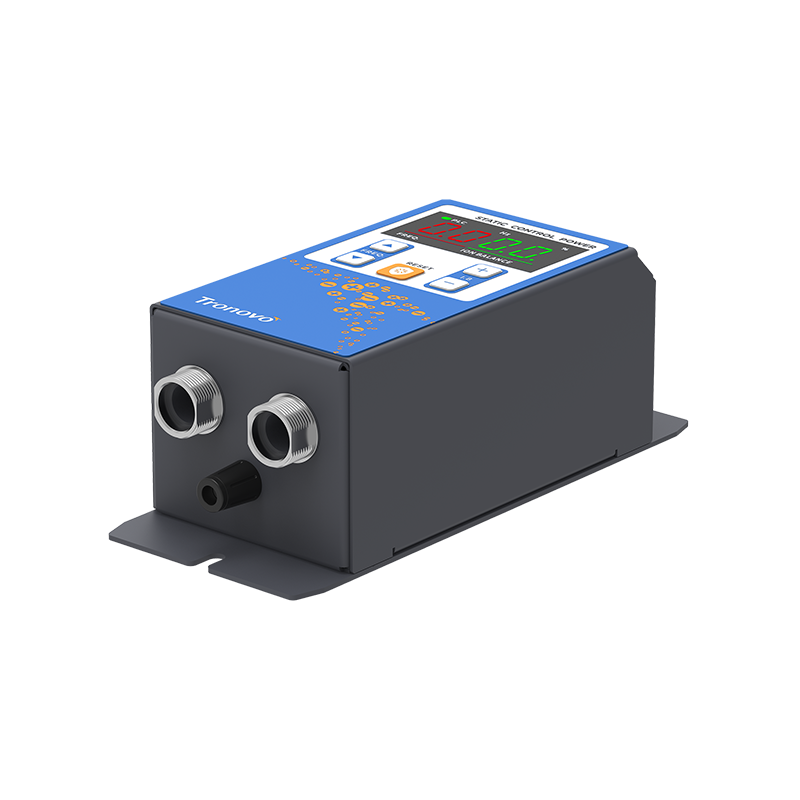

DP522 Static Control Power

The pulsed AC method enables not only "breeze de-energization" and "high-speed de-enercization" applied to compressed air, but also "windless de-energization" that does not require the use of compressed air. Alternately apply "+" and "." voltages on 1 discharge pin. Since the amount of ions generated is large, a large number of ions can be released, so it is possible to decharge electricity in a short time. The pulse frequency can be used in the range of 50 Hz (short-range and moving workpiece de-energization) ~1 Hz (long-distance and spatial de-energization) depending on the application situation.

Appointment purchase Online consulting

Share to

Performance

Key Features

Downloads

Product Parameter

Model
DP522

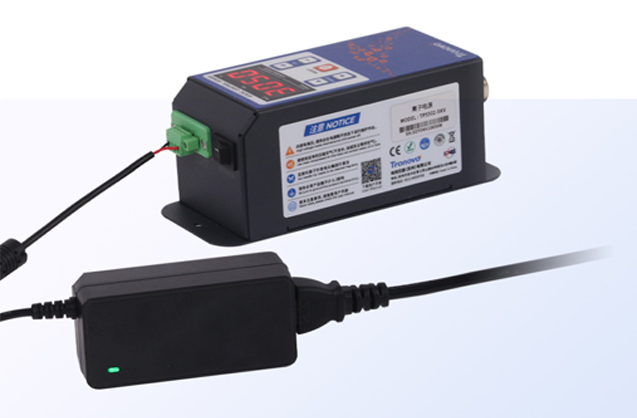

Input voltage
24 V DC ±5%
Input power
Max. 30 VA
Output voltage
4.0kV/5.0kV/6.0kV/7.0kV AC
Output current
<5mA
Output frequency
1~50Hz (1Hz step, default 30Hz)
Output connection
2-CH
One-key reset
✔
Airflow detection
✘
lon balance adj
✔

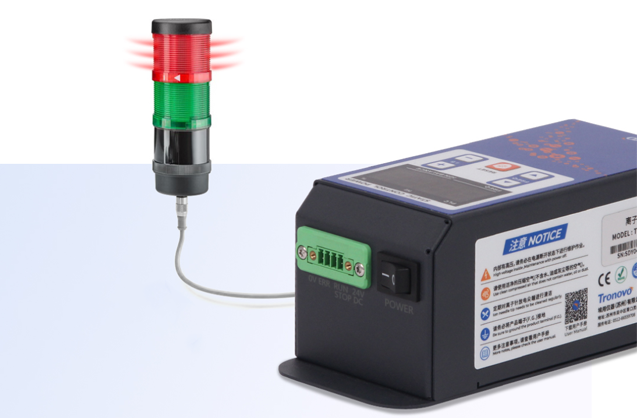

Anomaly protection
✔
Signal control
✔
Environment
Temperature: 0 to 50°c Humidity: 35 to 80%RH
Dimensions
180 x75 x70 mm
Weight
Approx 750g
Warranty
One-year

Product Details

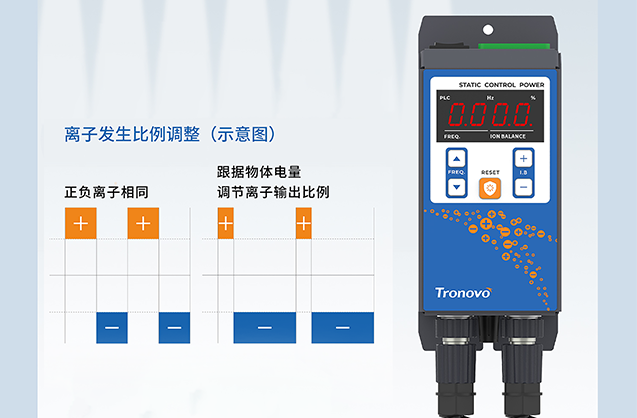

What is "ion tunable" technology?

By accurately adjusting the output ratio of positive and negative ions, the ion bar can more efficiently neutralize the positive and negative electrostatic charges on the surface of the object, so as to realize the adjustable value of the residual band voltage on the surface of the special body.
