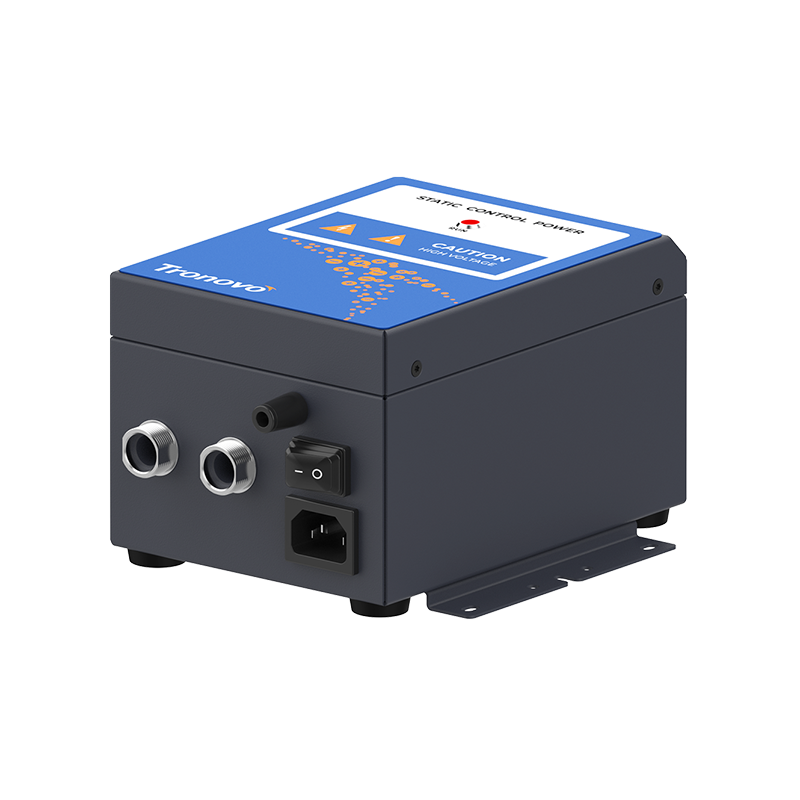

DP712 Static Control Power
DP712 Static Control Power

DP712 Static Control Power

The ion power supply using the power frequency Ac mode has a simple structure and is not prone to failure, which can ensure the stable operation of the production line. The patented connector makes the connection between the ion rod and the power supply very safe, and will not cause heat generation and fire accidents. simple and proven high-voltage transformers achieve high load capacity as an affordable performance solution for a wide range of applications requiring static elimination, such as printing, coding, packaging, painting, and other industrial applications.
Performance
Key Features
Downloads

You may also be interested in these products

Product Parameter

  • Model
  • DP712
  • Input voltage
  • 230 V AC 50/60 Hz /Customize 110 V AC 50/60 Hz
  • Input power
  • Max. 35 VA
  • Output voltage
  • 4.6kV/5.6kV/7.0kV AC
  • Output current
  • <5mA
  • Output frequency
  • 50/60 Hz
  • Output channel
  • 2-CH
  • Protection current
  • Environment
  • Temperature: 0 to 50°c Humidity: 35 to 80%RH
  • Dimensions
  • 185 x158.5 x105.7 mm
  • Weight
  • Approx 2.7 kg
  • Warranty
  • One-year
