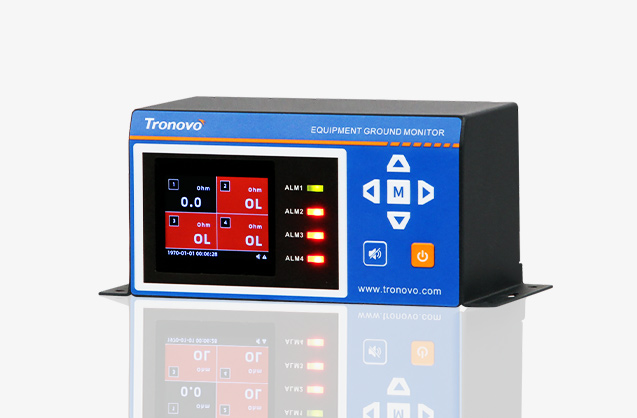

MM641R Equipment ground monitor

To avoid the equipment is not grounded or grounding effect is not good, resulting in damage to the instrument, malfunction, resulting in EOS, ESD damage to the product, or even personnel contact with the machine shell and cause the risk of electric shock, we are your static grounding gatekeepers, and at the same time to monitor a number of instruments of the equipment grounding status, to ensure that the production line of static grounding and grounding of the equipment are all foolproof!
Performance
❯ Independent 4-way resistance monitoring
❯ Meets ANSl/ESD S20.20 specification requirements
❯ Instantly displays the current ground resistance value.
❯ Alarm parameters can be freely set
❯ Enabling remote monitoring and data processing
❯ External red and green alarm lights can be connected
❯ Automatically stores and leaves a record of any abnormal grounding conditions
❯ More accurate measurements regardless of the distance from the device
Key Features
❯ Independent4-wayresistance monitoring
❯ Conforms to international and industry standards for static electricity
❯ High Definition TFT Display
❯ Programmable upper and lower alarm thresholds
❯ RS485 Communication method
❯ Alarm output signal
❯ Grounding anomalyrecord
❯ Line resistance deviation correction
Downloads

You may also be interested in these products

Product Parameter

  • Model
  • MM641R
  • Voltage
  • 24VDC±5%
  • Monitor Channel
  • 1
  • Monitor Resistance
  • 0-900Ω ±1Ω
  • Resolution
  • 0.1Ω
  • Hi alarm limit set
  • 1-900Ω adjustable,factory default 10Ω
  • Low alarm limit set
  • 0-899Ω adjustable,factory default 0Ω
  • Grounding anomaly recode
  • Have
  • Alarm output signal
  • Have
  • Line resistance correction
  • Have
  • Communication interface
  • RS485
  • Environments
  • +5℃ to +45℃,Humidity: 20 to 85% RH
  • Volume/Weigh
  • 80×80×150mm /Body approx 650g
  • Warranty
  • One year

Product Details

High-definition digital display-sound and light indication

Real-time data transmission
Multiple monitoring channels
Multiple alarm modes
Support remote monitoring

107
108

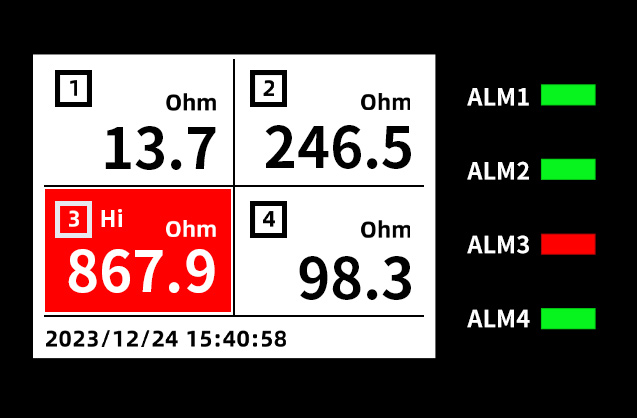

HD TFT-Large Screen Display

It can immediately display the grounding resistance value before operation, visually display the resistance value, clear the alarm state at a glance, quick response in emergency, and simplify operation and interpretation.

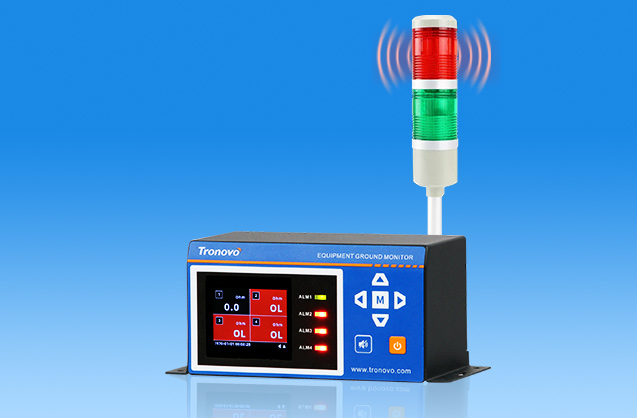

Automatic alarm-audible and visual indication

Real-time monitoring of the ground resistance status and in the event of an exception immediately issued a striking alarm, effective prevention of electrical safety hazards. Improve system safety and reliability, reduce maintenance costs and improve maintenance efficiency.

109
04

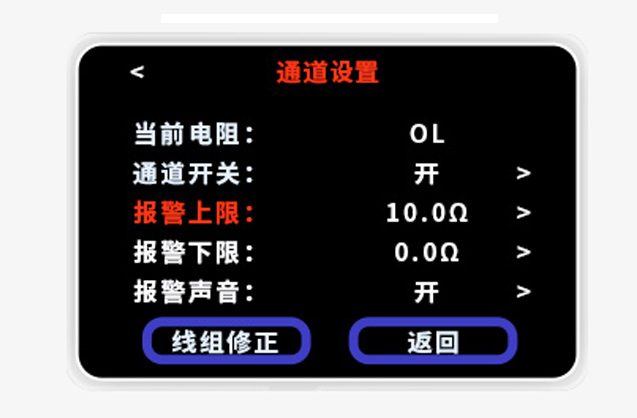

Adjustable resistance-upper and lower limits can be set

The upper and lower alarm thresholds can be set, and the alarm parameters can be set according to various international specifications.

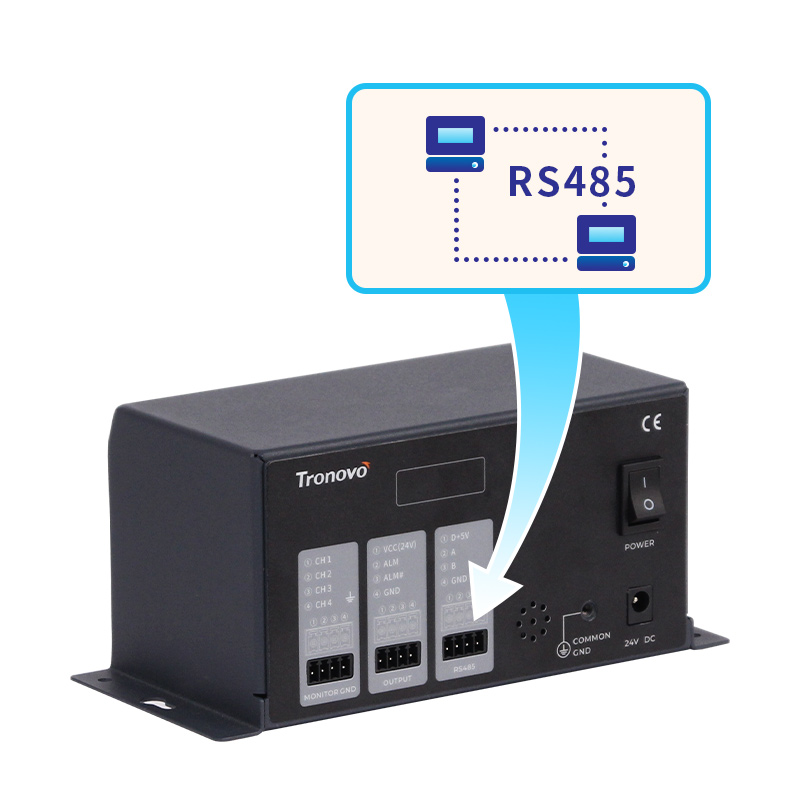

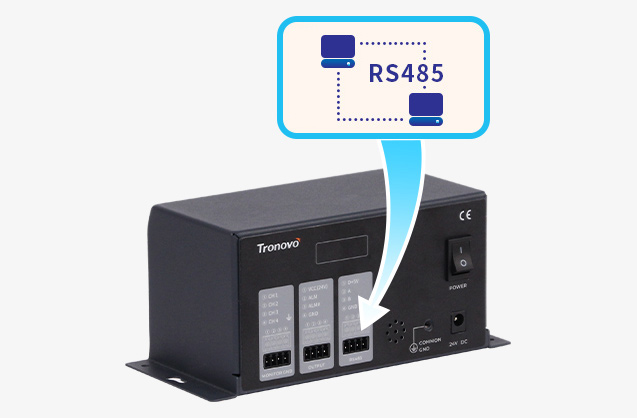

Support 485 communication, computer connection network

Excellent communication stability, real-time data transmission, support for multi-point communication, reduce maintenance costs, convenient and reliable monitoring solutions.

05
112

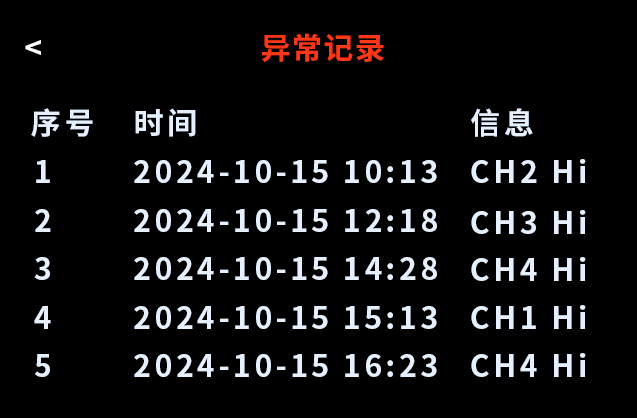

Grounding Event Logging-Capture Exception in Real Time

When the grounding condition is abnormal, it will automatically store and leave records. Detailed abnormal records greatly simplify the troubleshooting process and can locate the problem faster.

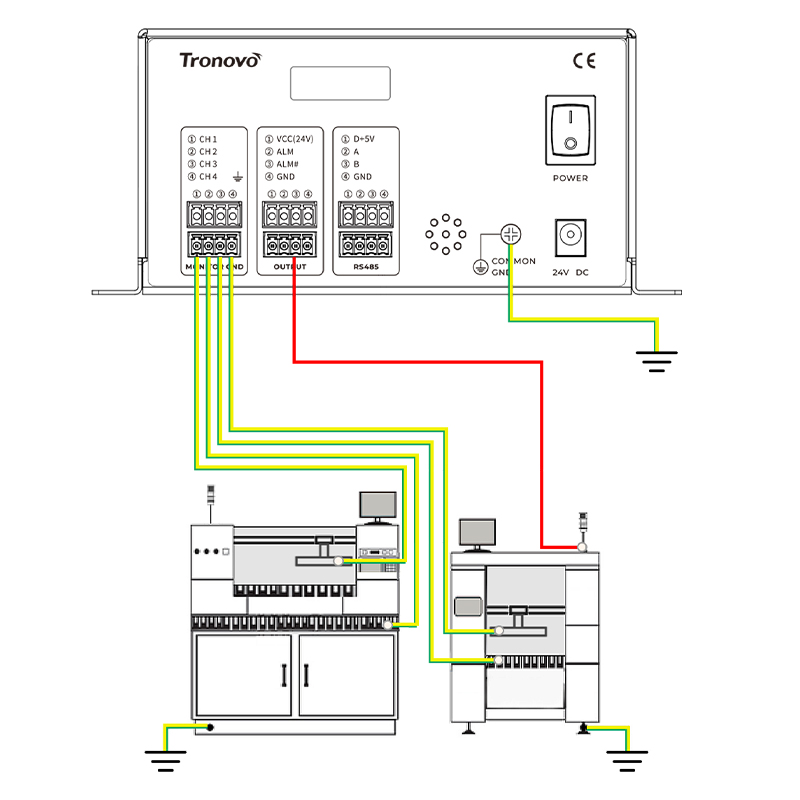

Easy-installation method

Fast and simple connection and installation, easy access to the system without complicated steps, providing users with great convenience and operational efficiency.

113
