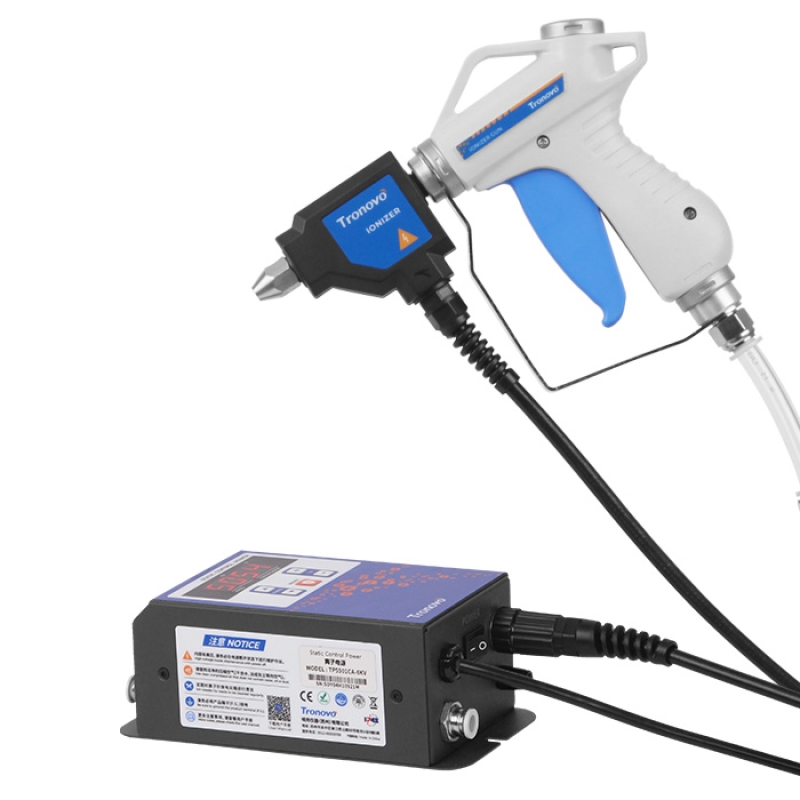

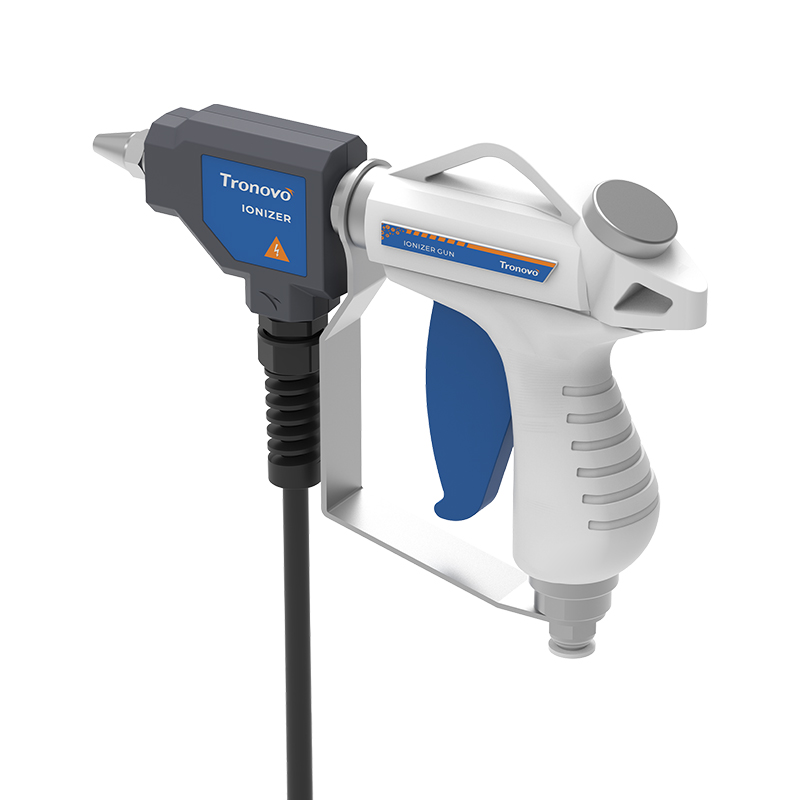

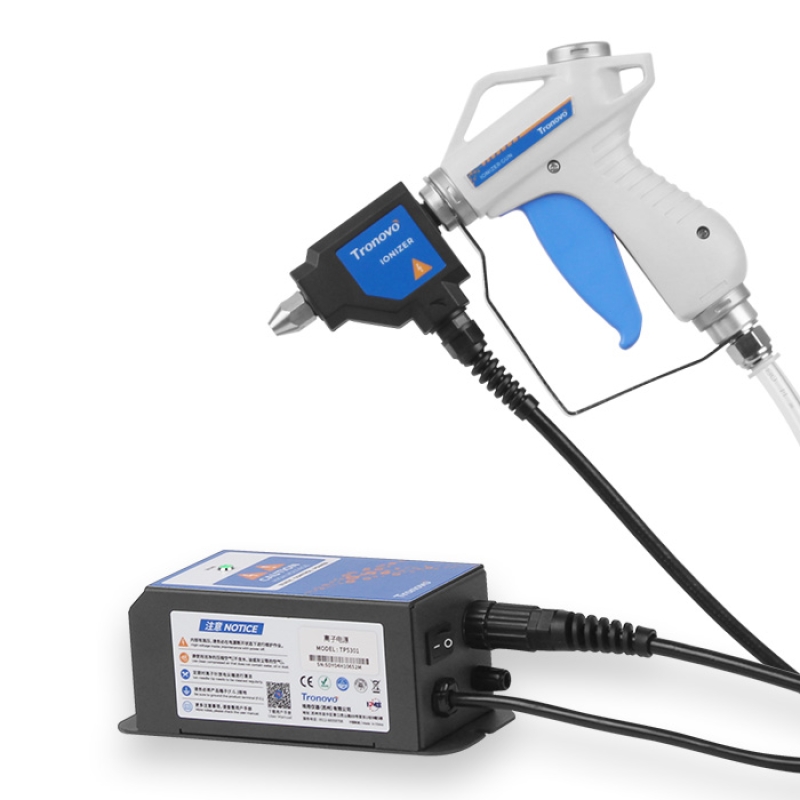

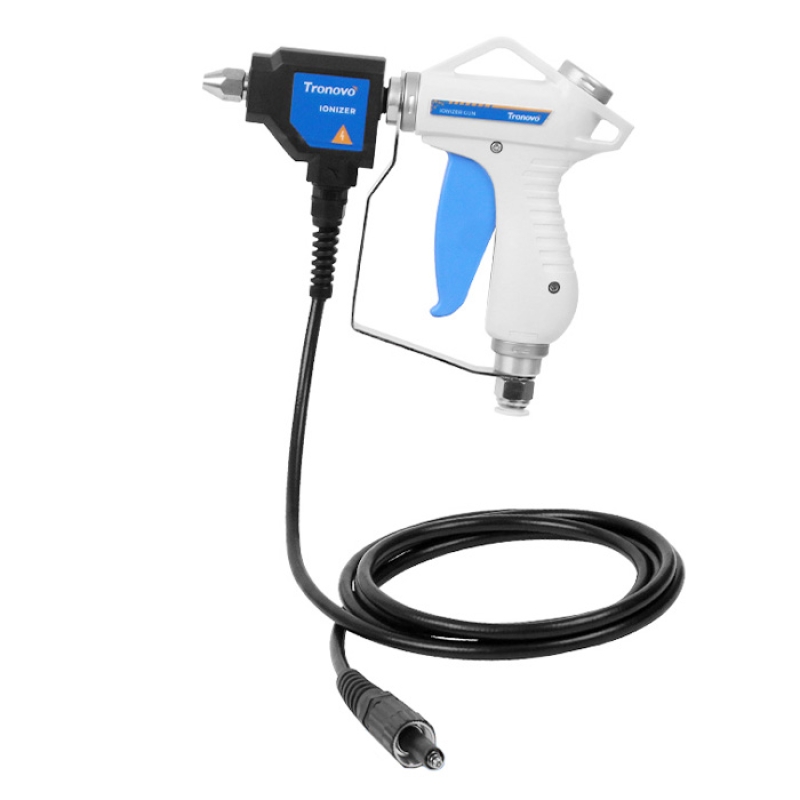

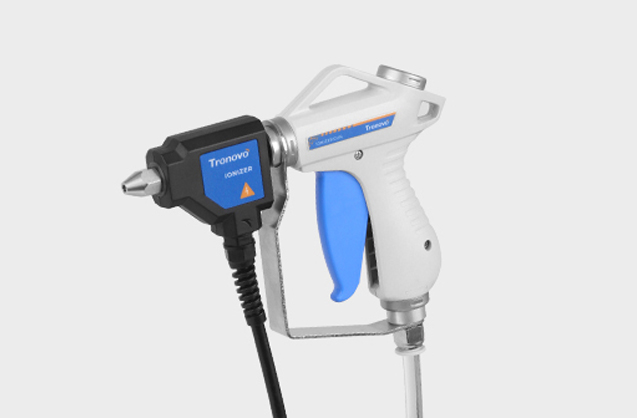

DG53B lonizing Air Gun
DG53B lonizing Air Gun
DG53B lonizing Air Gun
DG53B lonizing Air Gun
DG53B lonizing Air Gun
DG53B lonizing Air Gun
DG53B lonizing Air Gun
DG53B lonizing Air Gun

DG53B lonizing Air Gun

0
Ionising nozzle technology is the ideal solution for the cleaning of three-dimensional parts in industrial manufacturing, especially for assembly, packaging, painting or preparation before finishing. It is not only highly effective in removing static electricity and thoroughly blowing away dust and surface contaminants, but is also superior to traditional compressed air cleaning methods. After treatment with the ion nozzle, the surface of the part is electrically neutral, which prevents airborne contaminants and dust from being re-adsorbed during subsequent manufacturing processes. This ensures long-lasting cleanliness of the 3D part, which significantly improves the quality and reliability of the final product and is a key technology for efficient dust and static control.
Performance
❯ DP522 and DP531 lon Control Power Only
❯ Effectively remove surface contaminants and particles
❯ Capable of producing a strong and concentrated stream of ionic air
❯ The grip part conforms to the curve of the palm and can be operated comfortably for long periods of time
❯ Only DP53l ion control power
❯ High-quality materials and manufacturing processes are used
❯ AC pulse technology can reduce nozzle electrode losses
Key Features
❯ Adjustable ion balance and frequency
❯ Efficient electrostatic and dust removal
❯ Powerful purging power
❯ Ergonomic design
❯ High safety, gas and electricity control
❯ Durability
❯ Longer service life
Downloads
❯ DG53B DG53T-Tronovo lonizing Air cun

You may also be interested in these products

Product Parameter

  • Model
  • DG53B
  • Discharge
  • ≤1.0S (Distance 50mm)
  • Balance
  • ≤|±30V|(AVE)*pulse static control power
  • Airflow
  • 0.1~0.7Mpa
  • Piping entry
  • BOTTOM
  • Connecting
  • 10mm
  • Emitters
  • Tungsten
  • Cables
  • 2.5m
  • Environment
  • +5°C to +45°C, humidity: 35 to 70%RH
  • Warranty
  • One-year

Product Details


Adjustable de-static properties,Better de-static effect

This highly efficient anti-static and dust removal equipment combines strong de-static and precise dust removal performance, suitable for electronic assembly, plastic processing and other precision scenes. Durable structure design, anti-static components of reliable quality, long service life. Compact size saves installation space, easy and fast installation process, can be flexibly integrated into automated production lines, providing stable anti-static clean guarantee for equipment and products.

Rapid neutralisation of static electricity,Using pulsed AC ionisation technology

This equipment has adjustable anti-static performance, through the precise control of positive and negative ion output ratio, according to the needs of different scenarios can be flexibly adjusted pulse frequency and voltage, to achieve the surface of the workpiece residual voltage value can be adjusted accurately. Optimised ion balance adjustment function significantly improves the effect of de-static, suitable for electronics, precision manufacturing and other areas of anti-static needs, to ensure process stability and product cleanliness.


Faster de-energisation

Pulse AC ionisation technology is the core of rapid neutralisation of static electricity. The principle is to switch polarity, alternately generate positive and negative ions, instantly releasing a high concentration of ion clouds. These ions quickly reach the surface of charged objects and efficiently neutralise the static charge, achieving excellent static elimination speeds (typical values<1 second). Compared to traditional methods, this technology is faster and more efficient at neutralising static charges and significantly reduces static dissipation time, making it an ideal solution for high-speed production lines and other scenarios where time-sensitive static control is critical.

Japan imported gun body
Comfortable to operate, safe and 'non-electrifying'.

The non-inductive leakage design ensures absolute safety of operation, ‘peace of mind use, safety does not electrocute people’! Plastic insulated gun body provides excellent insulation protection, combined with ergonomic lightweight design, significantly reducing the workload. Equipped with high-voltage shielding cable, effectively isolate dangerous voltage, completely eliminate the risk of electric shock, to protect the safety of the operator and the stability of peripheral equipment, to achieve safe and worry-free static elimination operations.


'Gas-electric' design
Synchronised control of high voltage and air output

The anti-static equipment adopts the safety design of air and electricity with control, which can precisely control the output of high voltage and air simultaneously. The ion generator starts to generate ions only when blowing, realising the intelligent linkage of ‘blowing is ionisation’. The safety design of this anti-static equipment effectively eliminates the risk of spontaneous combustion of the gun body caused by prolonged energisation without switching off, improves operational safety, and meets the demand for anti-static operations in electronic and precision manufacturing scenarios.

Areas of application

In the production of electronic components, plastic products processing and other applications, the equipment releases a strong concentration of ionic airflow can be efficiently removed from the surface of the workpiece pollutants, through the anti-static dust removal to reduce the static adsorption caused by the dust residue, and keep the surface clean for a long time. This feature significantly improves the appearance of the product and meets the stringent requirements for surface cleanliness in precision manufacturing, helping to optimise the production process and the quality of the finished product.
