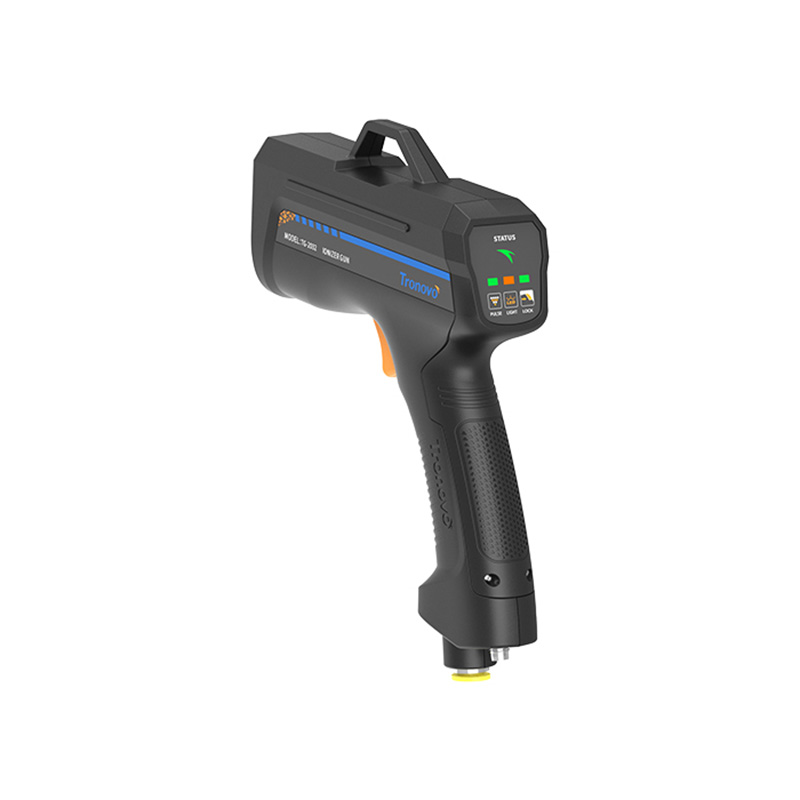

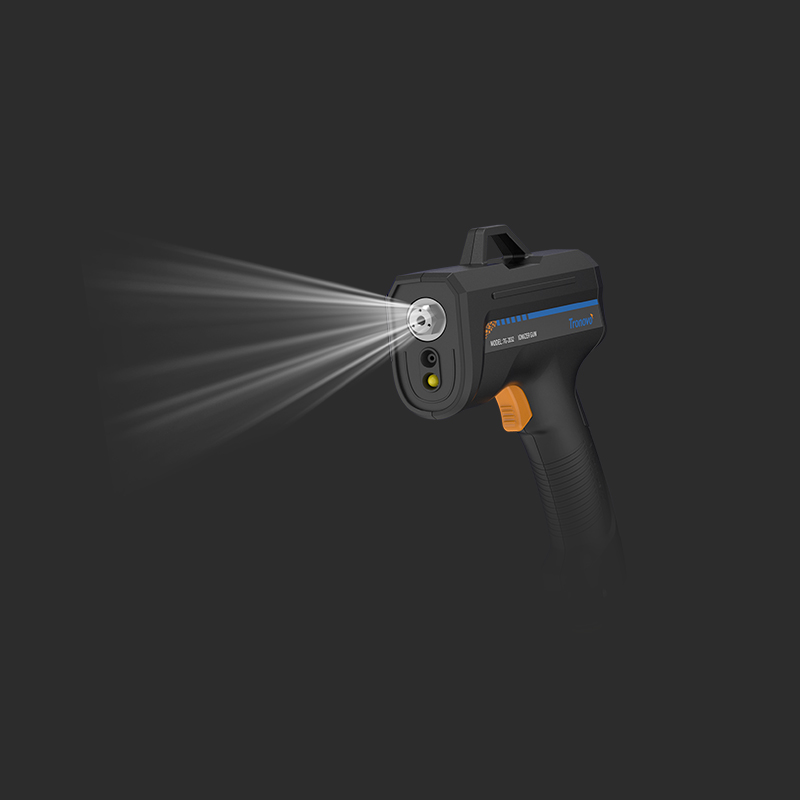

DG25P PULSE AIR-GUN IONIZER
DG25P PULSE AIR-GUN IONIZER
DG25P PULSE AIR-GUN IONIZER
DG25P PULSE AIR-GUN IONIZER

DG25P PULSE AIR-GUN IONIZER

Equipped with a working indicator,Visualize the operating status of the ion air gun,Typical dissipation time features pulse air modes in addition to the standard
continuous mode.
Performance
Key Features
Downloads
❯ DG25 DG25P-Tronovo PULSE AIR-CUN IONIZER

You may also be interested in these products

Product Parameter

  • Model
  • DG25P
  • Voltage
  • 24V DC≤5% (dedicated AC adapter)
  • Current
  • 0.5A or less
  • Discharge
  • 0.6S*¹
  • Balance
  • ≤|±10V| (AVE)*¹
  • Input gas
  • 0.15~0.7MPa
  • Air temperature
  • 0 to +50°C
  • Connect
  • Outer diameter ∅8,inner diameter ∅6
  • Ozone
  • ≤0.03ppm @ 30cm
  • Pulse mode
  • Trigger linkage
  • Lighting mode
  • Operating env
  • 0~+50°C (note no condensation),35~65%RH
  • Size/weight
  • 182.8x163.7x42mm/Approx.350g
  • Warranty
  • One-year

Product Details


Excellent dust removal ability, dust "visualization"

The handle is easy to grip and labor-saving to operate, and the 24V low-voltage safety wiring does not require high-voltage cables

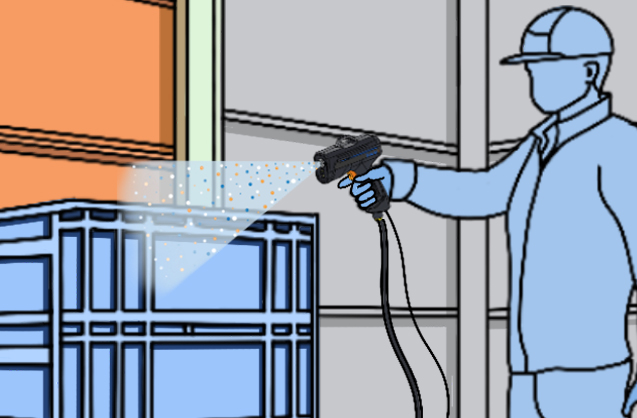

Remove dust before entering the workshop

All kinds of materials and semi-finished products, goods and equipment, before entering the dust-free workshop, must first go through high-speed clean ionized air to remove the dust attached to the clothes and goods before entering the dust-free workshop, so as to ensure the cleanliness and safety of the workshop.


The circuit board is cleaned of surface dust

The use of electrostatic precipitator gun with excellent dust removal ability can clean the conductive dust generated after circuit board cutting, ensure that the PCBA surface is in a clean state, and eliminate short circuits, intermittent circuit failures, corrosion, etc. in advance, thereby reducing hidden dangers and improving product quality.

Dust removal during maintenance, switching mills or hoppers

When the mill is switching, the pipe or hopper needs to be cleaned. Through the combination of high speed air and ions, the electrostatic attraction of dust can be effectively removed, which not only removes the dust, but also prevents it from attaching again.


Dust removal before body painting to prevent poor coating

Ideal for surface cleaning, the Fat Punch Ion Air Gun floats dust on the surface by shaking the pulsed air, and can easily remove dust that is difficult to remove in the recess, achieving a dust removal effect that exceeds that of continuous air.

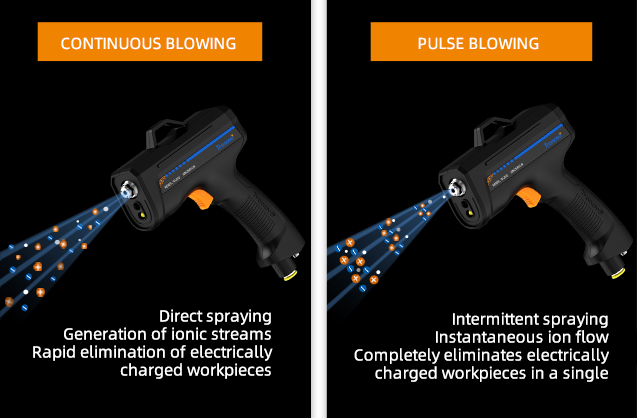

Continuous Blowing - The mode that suits your needs can be selected

Press the trigger to start ionized air dusting, and relax the trigger to stop ionized air.

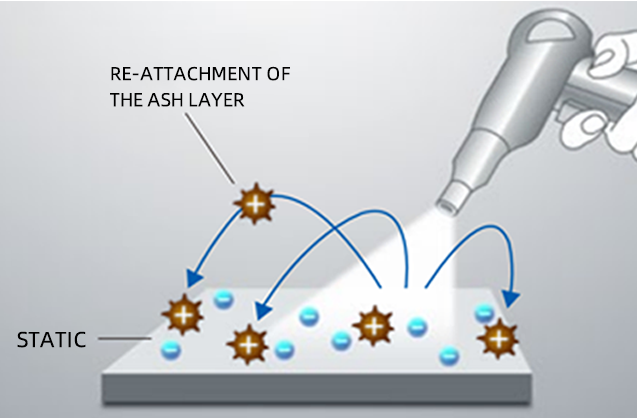

Audinari El Blowyn-Dast Isnott Klein

The traditional dust removal gun cannot eliminate static electricity without ions, and the dust cannot be cleaned.

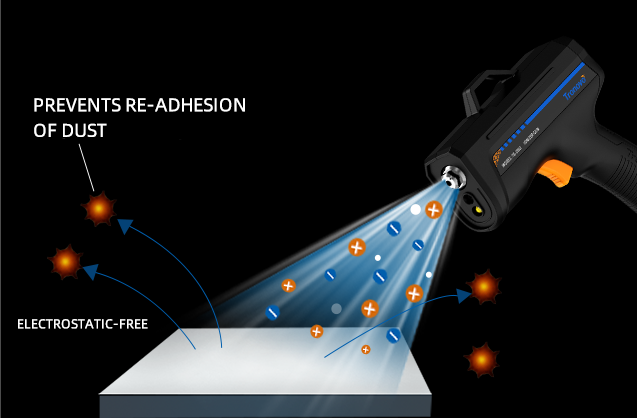

Ionic air blowing - prevents dust from adhering again

By combining positive and negative ions and air purging, dust is not only removed, but also electrostatic electricity is used to prevent dust from re-attaching. There is no need for multiple blows, which can achieve more efficient dust removal in one go.

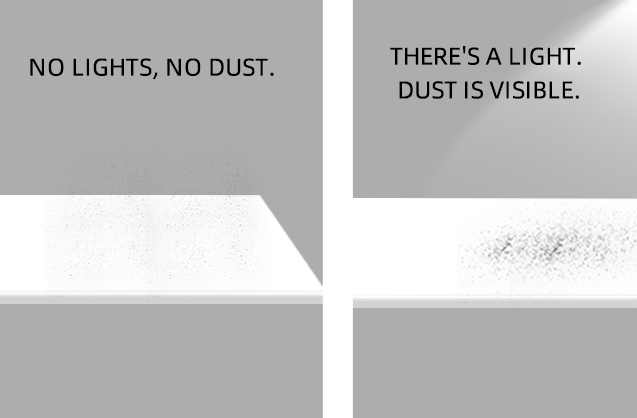

Equipped with a dust detection light - the difference between light and no light

The traditional dust removal gun cannot eliminate static electricity without ions, and the dust cannot be cleaned.

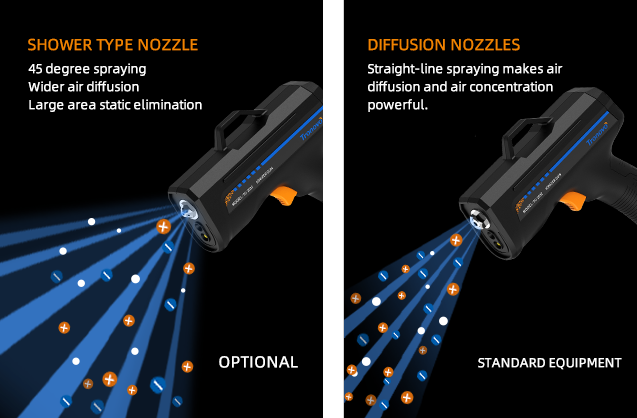

Dedicated nozzles - for a wide range of static elimination

With a variety of nozzle options, different nozzles can be selected according to different work needs to achieve better static elimination effect.

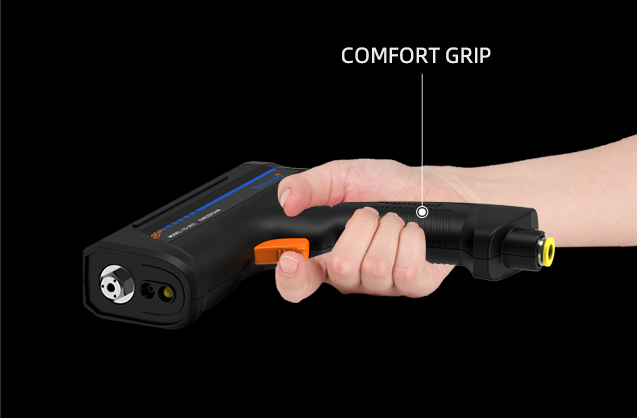

Comfortable grip - easy to press and not slip

Designed with a grip that naturally fits your fingers and a suitable center of gravity.

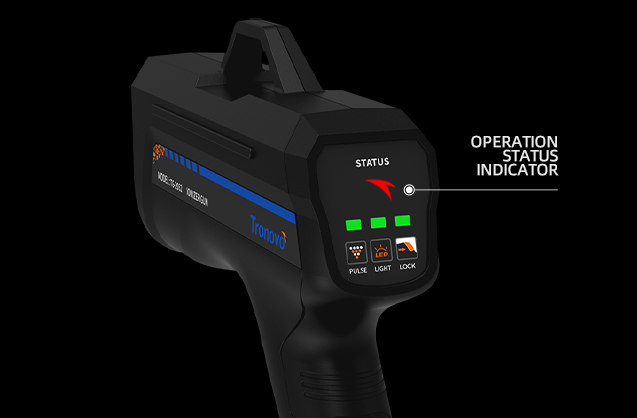

Safe & Reliable - With perfect security protection measures

24V low-voltage safety wiring, built-in ionizer; It is equipped with an operating status alarm indicator, with ion abnormality, short circuit protection and overheat protection to ensure safe and reliable operation.

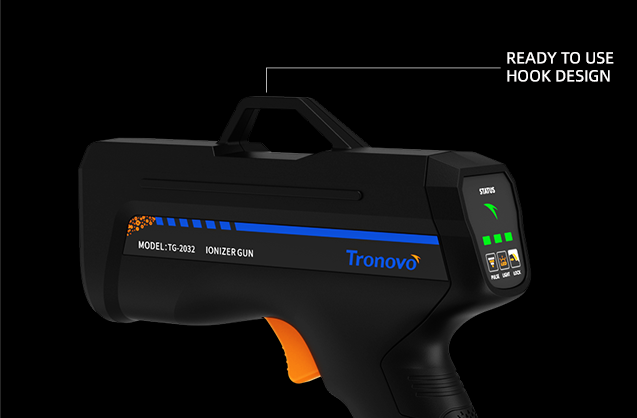

Hook function - easy to hang and store

The top is designed with a hook, which can be easily placed on site in industrial environments.
